HP BladeSystem c7000 - Page 33

Removal and replacement procedures 33
2.

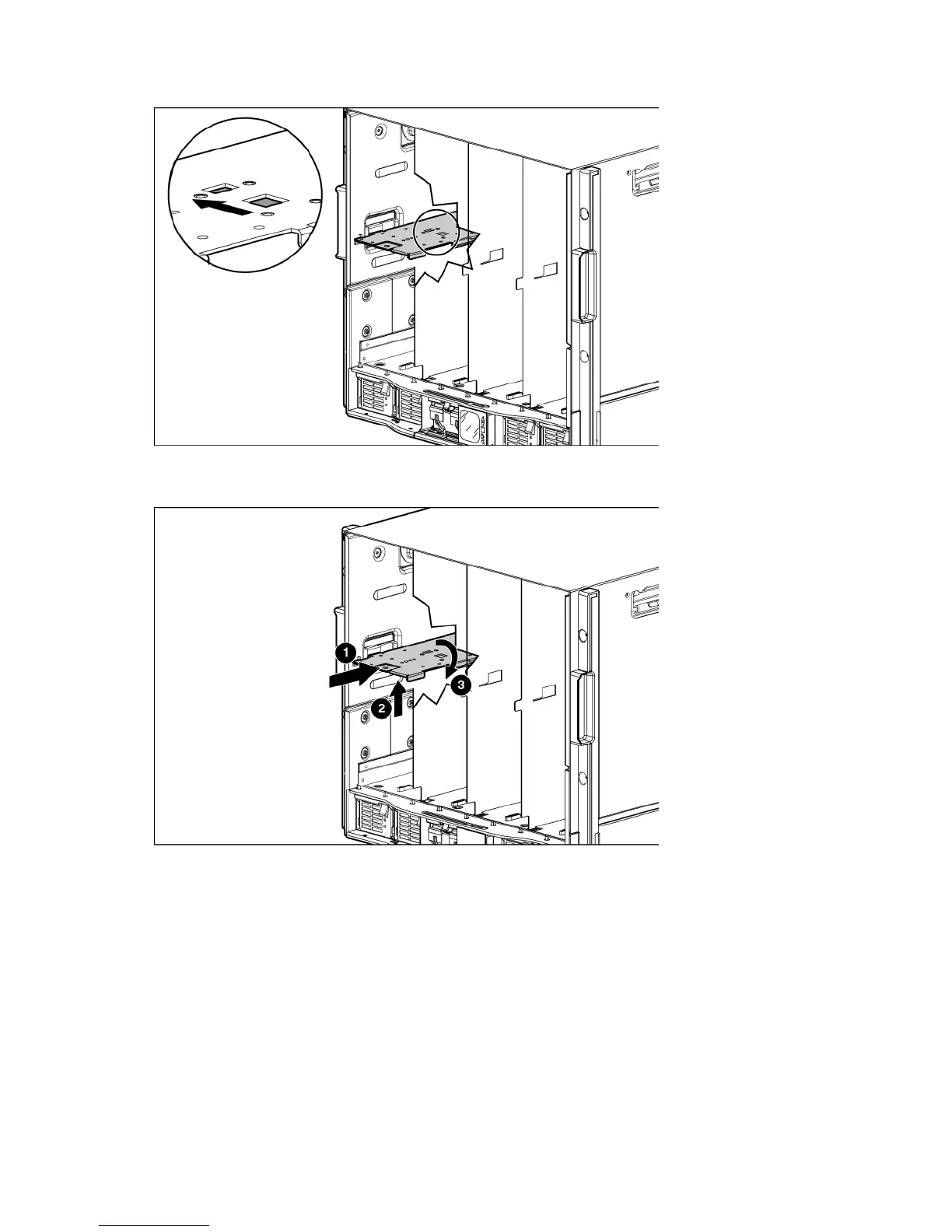

Slide the device bay shelf locking tab to the left to open it.
3. Push the device bay shelf back until it stops, lift the right side slightly to disengage the two tabs from the
divider wall, and then rotate the right edge downward (clockwise).
