Removal and replacement procedures 35

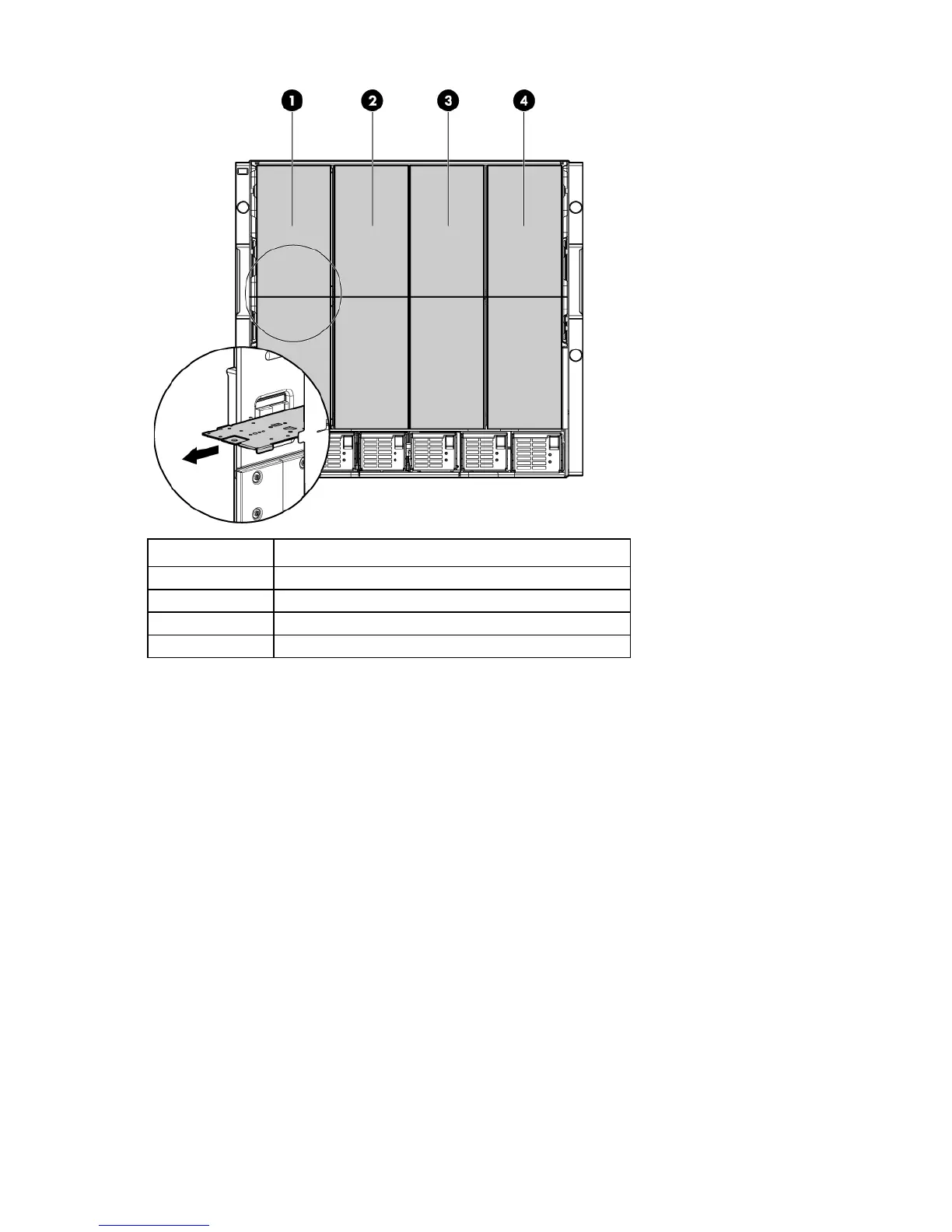

Item Description
1
Blade Zone 1
2
Blade Zone 2
3
Blade Zone 3
4
Blade Zone 4
Storage blades and tape blades can be installed in the same quadrant as both full-height and half-height
blades. A bracket ships with each SB40c Storage Blade that allows a half-height blade to be mounted on top
of the storage blade.
The lower tape or storage blade cannot be removed without first removing the upper half-height blade.
To remove the component:
1. Identify the proper half-height or full-height blade in the enclosure ("Device bay numbering" on page
64).
2. Back up all data.
3. Power down the half-height or full-height blade ("Power down the server blades or workstation blades"
on page 28).
4. Remove the blade:
