HP Codemaster 100 - Preparing the Patient

8VLQJWKH/HDG2SWLRQ
Acquiring a 12-Lead ECG
6-10
Preparing the Patient

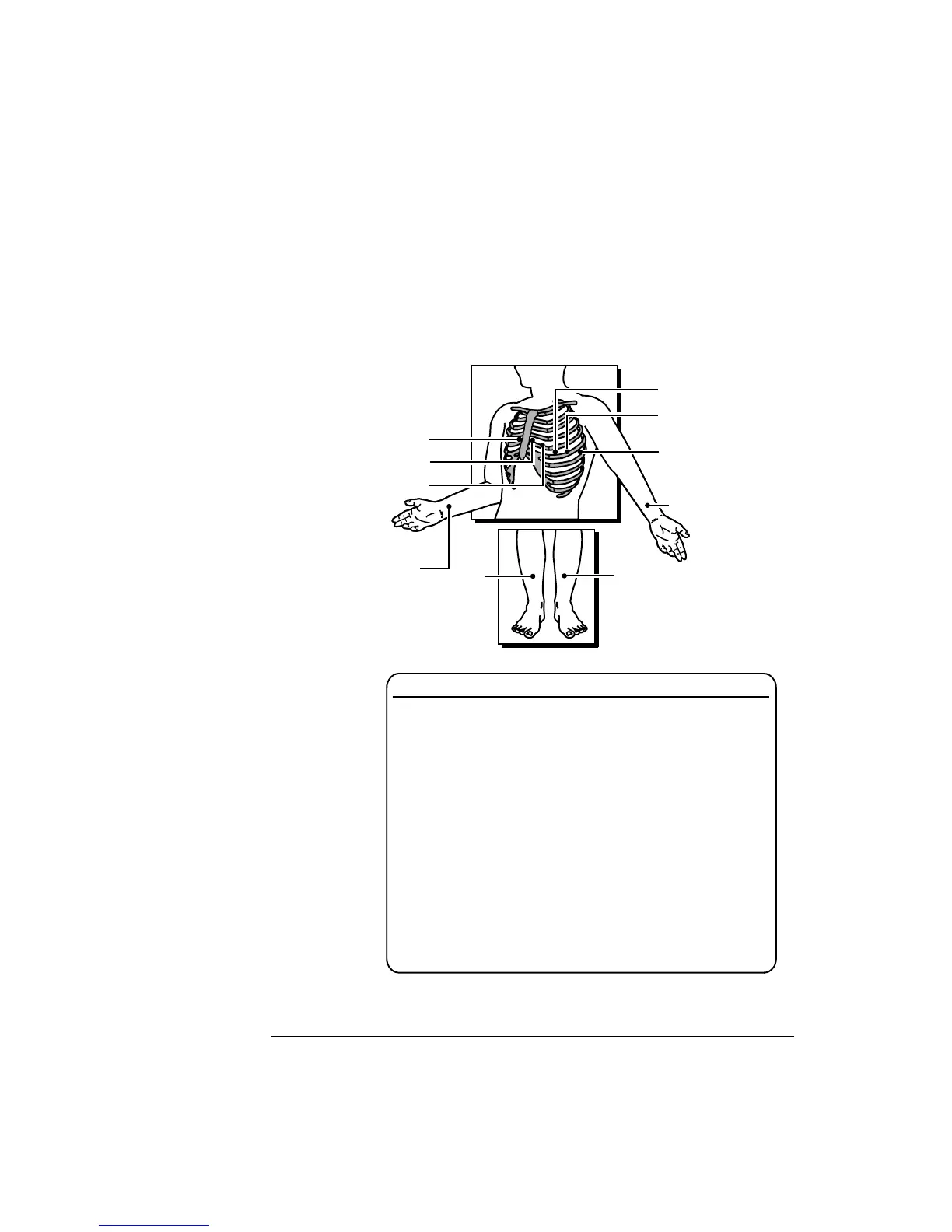

For electrode placement information, refer to Figure 6-3.
Figure 6-3
Electrode Placement
6-3
LL/F
RA/R
RL/N
V4/C4
V5/C5
V6/C6
LA/L
V1/C1
V2/C2
V3/C3
Lead Position
V1/C1 Fourth intercostal space, at right sternal margin.
V2/C2 Fourth intercostal space, at left sternal margin.
V3/C3 Midway between V2 and V4.
V4/C4 Fifth intercostal space, at left midclavicular line.
V5/C5 Same level as V4, on anterior axillary line.
V6/C6 Same level as V4, at left midaxillary line.
RA/R Inside of arm, between wrist and elbow.
LA/L Inside of arm, between wrist and elbow.
RL/N Inside of calf, between knee and ankle.
LL/F Inside of calf, between knee and ankle.
