Operating Controls and Indicators
1-18
Indicator Lights
The HP CodeMaster 100 contains several status lights that illuminate to
indicate the device status. This topic provides details for each indicator.
Refer to Figures 1-11 and 1-12. Table 1-1 lists audible indicators.

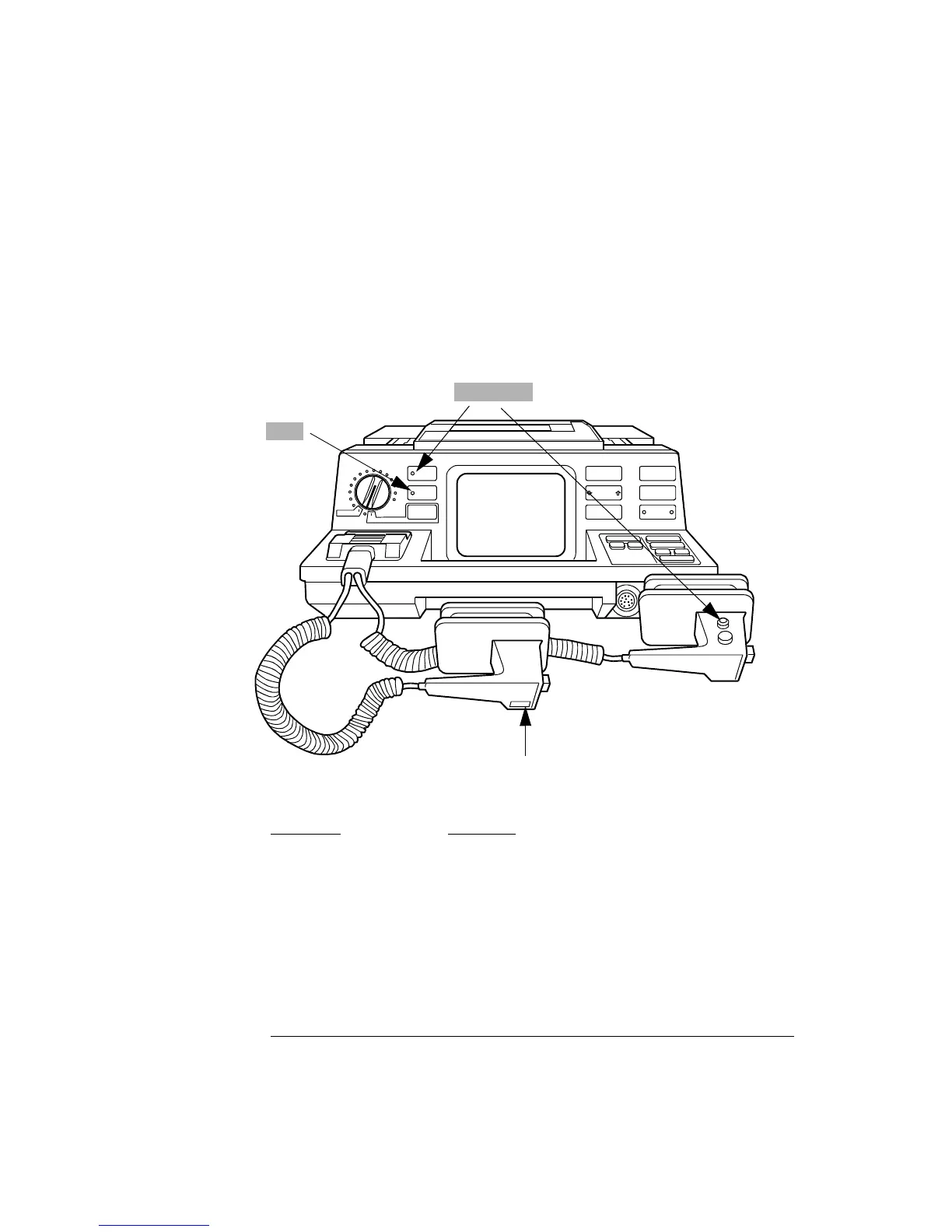

Figure 1-11
Indicator Lights
1-11
Indicator Function
Charge Done Indicates that the unit is charged and ready to use.
Sync Light indicates that the unit is in synchronized
shock mode as opposed to defibrillator mode.
Flashes off each time an R-wave is detected.
Paddle Contact Indicator PCI on the Sternum paddle indicates how well the
paddles contact the patient.
M2475-B0003
3DGGOH&RQWDFW,QGLFDWRU
CHARGE DONE
SYNC
