51
Chapter 2: Installing the Emulation Module
Installing into a Logic Analysis System

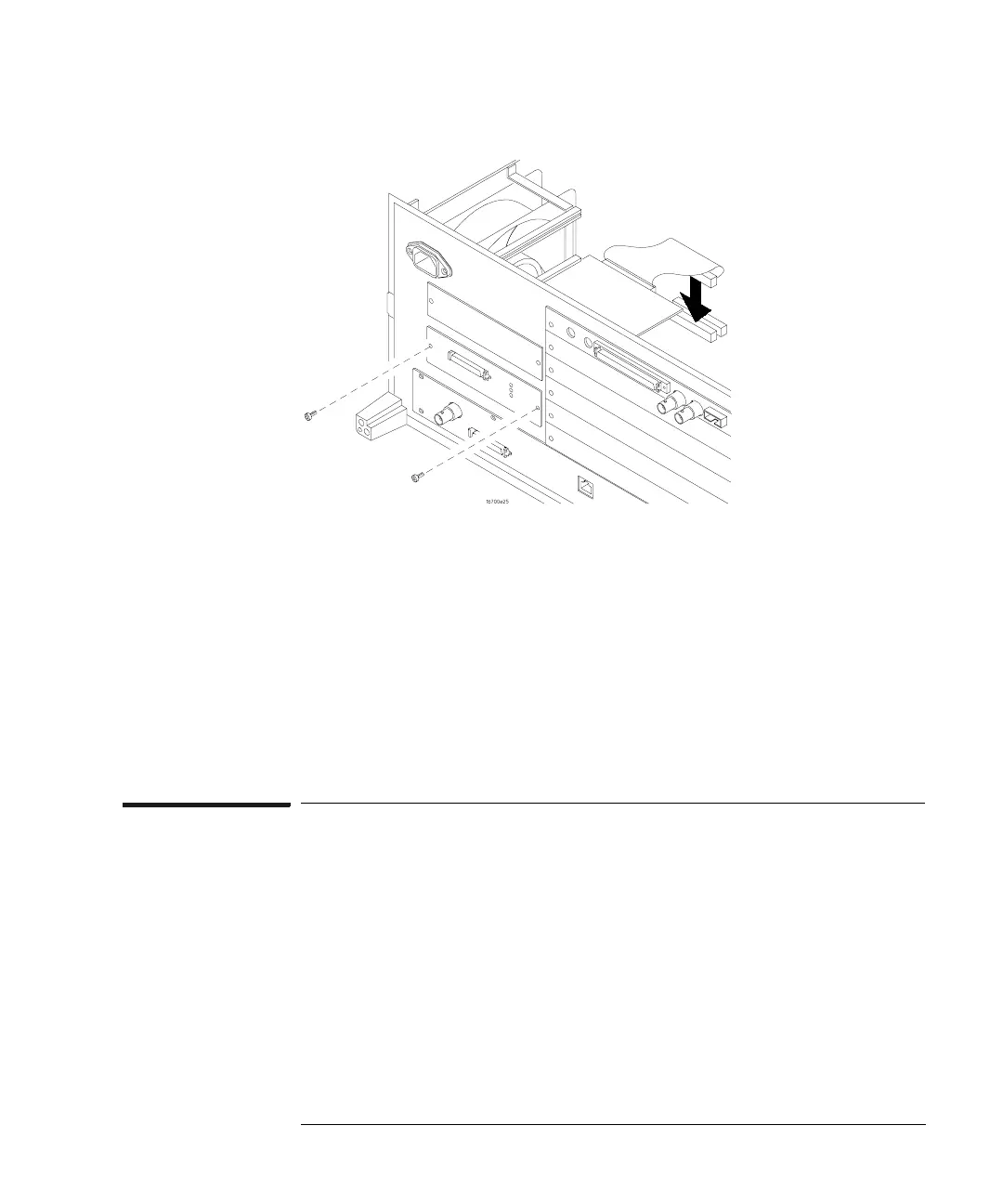

7 Reinstall the bottom cover, then turn the frame right-side-up.
8 Plug in the power cord, reconnect the other cables, and turn on
the logic analysis system.
The new emulation module will be shown in the system window.
See Also See “Updating Emulation Module Firmware” on page 56 for
information on giving the emulation module a “personality” for your
target processor.
To install in a HP 16600A-series logic analysis
system
You will need a T-10 Torx screw driver.
1 Turn off the logic analysis system and REMOVE THE POWER
CORD.
Remove any other cables (such as probes, mouse, or video monitor).
2 Slide the cover back.
