71
Chapter 3: Connecting to a Target System
Making the Target System Connection
6 Turn on the power to the logic analysis system and then the
target system.
See Also For information on designing a target system for use with the
emulation module, see “Designing the Target System for an Emulation
Probe/Module” on page 64.

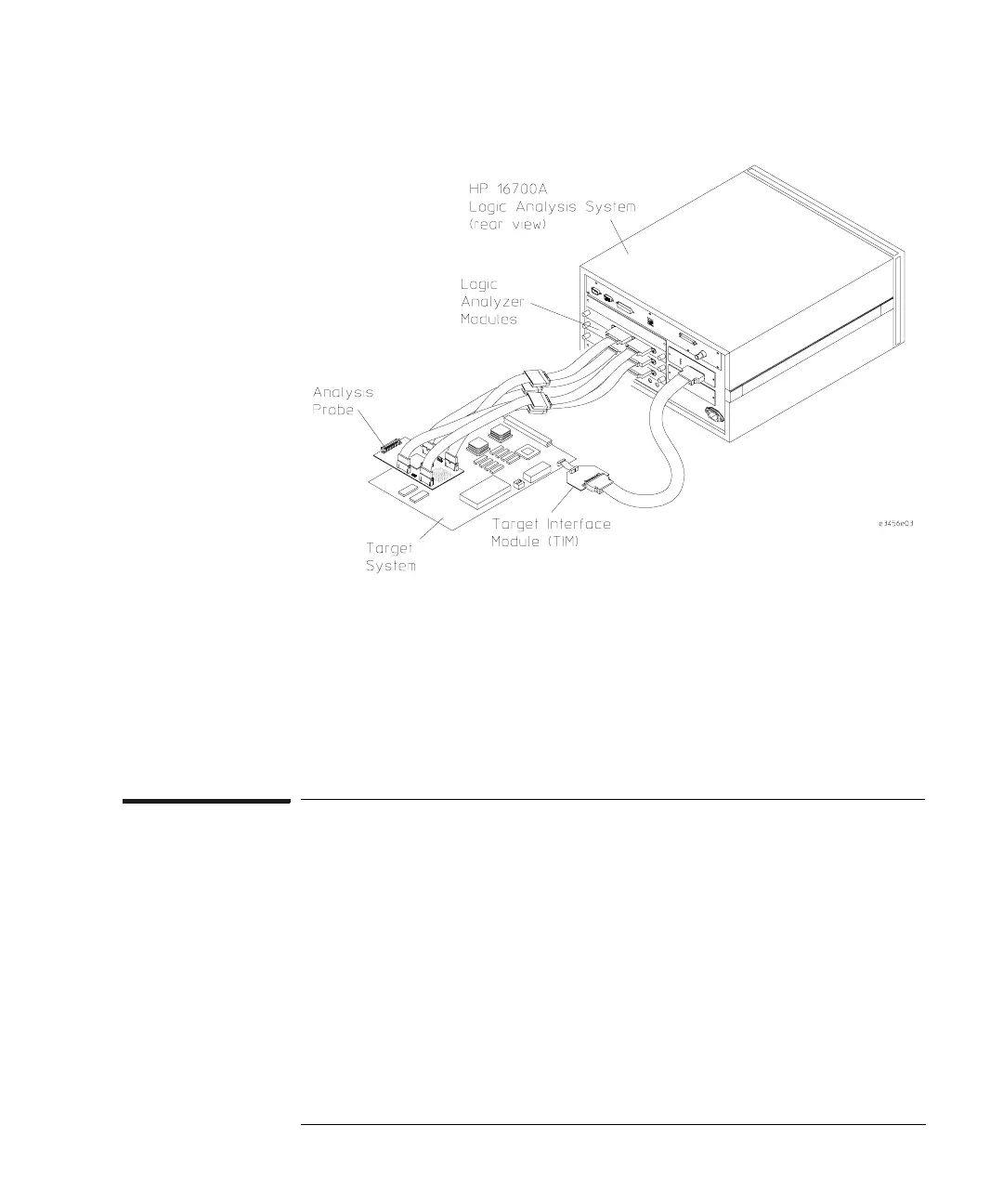

To connect to the analysis probe
1 Remove power from the target system.
2 Plug one end of the 50-pin cable into the emulation probe/
module.
3 Plug the other end of the 50-pin cable into the connector on the
analysis probe.
