z For Series 3000/4000/5000 and UltraStream-based presses, adequate space for the
BID washer. BID washer dimensions are:
width = 1.1 m (3.6 ft)
depth = 0.7 m (2.3 ft)
height = 1.2 m (3.94 ft)
z Voltage: European kit: 235 VAC ±17 / 50 Hz
USA kit: 118 VAC ±8 / 60 Hz
Japanese kit: 103 VAC ±6 / 60 Hz, 115 VAC ±6 / 50 Hz
Hardware configuration
The HP IndiChrome ink mixing system contains the following hardware components:
z Spectrophotometer
The spectrophotometer measures colors. It is connected to a serial port on the
computer.

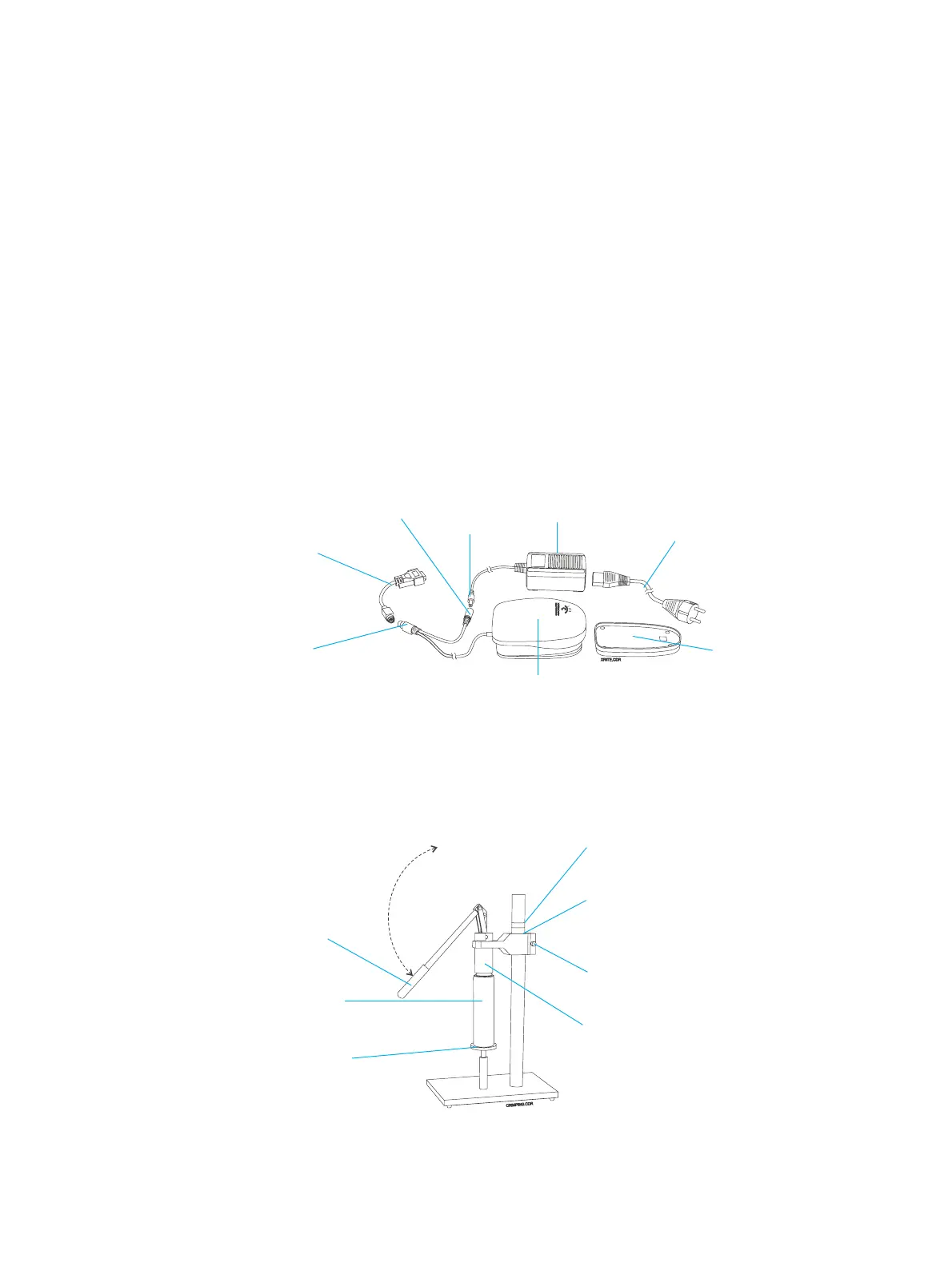

Spectrophotometer components
z Crimper
The crimper seals the receiving can with a valve.
Crimper
Serial port
adapter
Main
connector
Second
plug
AC/DC
adapter
cord jack
AC/DC
adapter
Power
cord
Calibration
reference
base
Spectrophotometer
Lever
Ink can
Round
can base
Crimper
Allen screw
Series 1000/2000,
TurboStream-based, and
Sun computer-based level
Series 3000/4000/5000 and
UltraStream-based level
