13

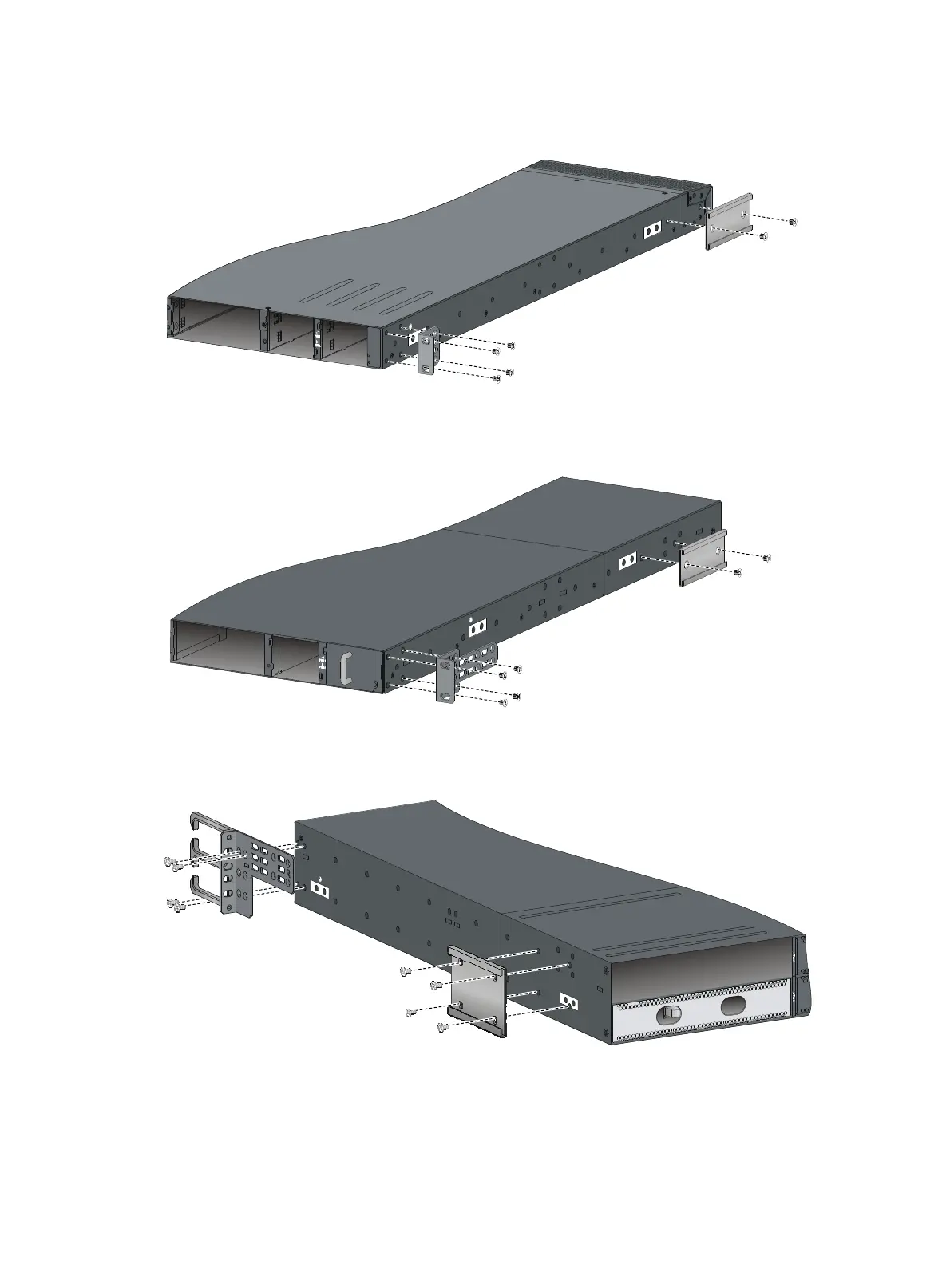

Figure 10 Attaching the mounting brackets and chassis rails to the HP 5930-32 QSFP+/HP 5930-32
QSFP+ TAA switch (power supply-side mounting position for the mounting brackets)
Figure 11 Attaching the mounting brackets and chassis rails to the HP 5930-2Slot+2QSFP+/HP
5930-2Slot+2QSFP+ TAA switch (power supply-side mounting position for the mounting brackets)
Figure 12 Attaching the mounting brackets and chassis rails to the HP 5930-4Slot/HP 5930-4Slot TAA
switch (power supply-side mounting position for the mounting brackets)
