HP ProCurve 2910al Switch User Manual

Getting Started
Sources for More Information
Command Line Interface
If you need information on a specific command in the CLI, type the command
name followed by help. For example:

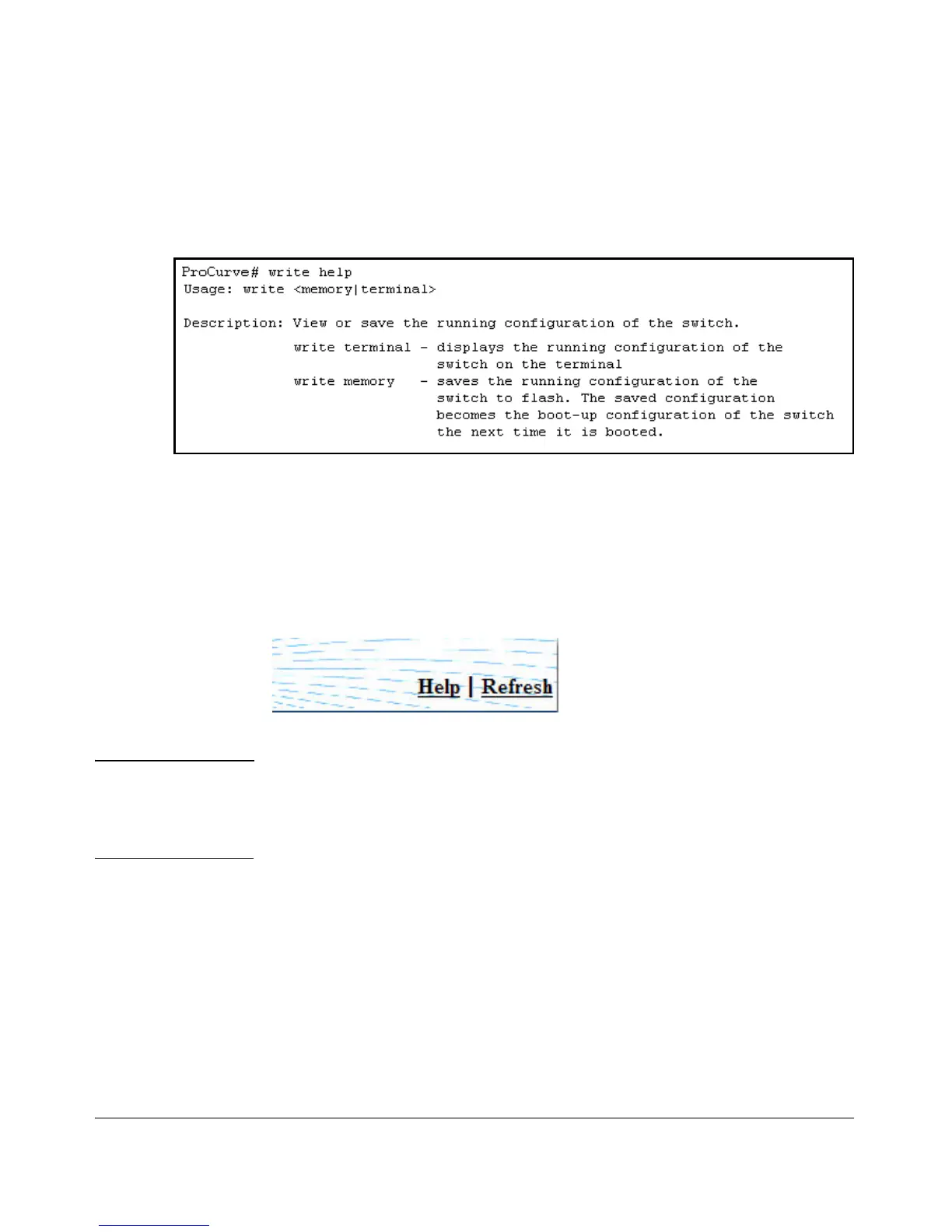

Figure 1-3. Example of CLI Help
Web Browser Interface
If you need information on specific features in the ProCurve Web Browser
Interface (hereafter referred to as the “web browser interface”), use the online
Help. You can access the Help by clicking on the Help text on top right side of
any of the web browser interface screens.
Figure 1-4. Help for Web Browser Interface
Note To access the online Help for the ProCurve web browser interface, you need
either ProCurve Manager (version 1.5 or greater) installed on your network
or an active connection to the World Wide Web. Otherwise, Online help for the
web browser interface will not be available.
1-7

HP ProCurve 2910al Switch Specifications

General

Model	HP ProCurve 2910al Switch
Layer	Layer 3
Jumbo Frame Support	Yes
Power Device	Internal power supply
VLAN Support	Yes
Power Supply	100-240 VAC, 50/60 Hz
Ports	24 or 48 x 10/100/1000 ports
Uplink Ports	4 x SFP (mini-GBIC)
Stacking	Yes
MAC Address Table Size	32000 entries
Routing Protocol	RIP, OSPF, BGP, IGMP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP
Features	VLAN, QoS, IPv6, ACLs
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af
Operating Temperature	0 to 45°C
Operating Humidity	15% to 95% (noncondensing)
Power over Ethernet (PoE)	PoE+ (802.3at) on PoE+ models, PoE (802.3af) on PoE models
