HP ProCurve 2910al Switch User Manual

IP Routing Features
Configuring RIP
The information in this display includes the following fields, which are defined
under ““RIP Interface Information” on page 3-35: IP Address, Status, Send
mode, Recv mode, Metric, and Auth.
The information also includes the following fields:
■ Bad packets received – The number of packets that were received on
this interface and were not processed for any reason.
■ Bad routes received – The number of route entries that were received
on this interface and were not processed for any reason.
■ Sent updates – The number of RIP routing updates that have been sent
on this interface.
Displaying RIP interface information by IP Address: For example, to
show the RIP interface information for the interface with IP address 100.2.0.1,
enter the show ip rip interface command as shown below:

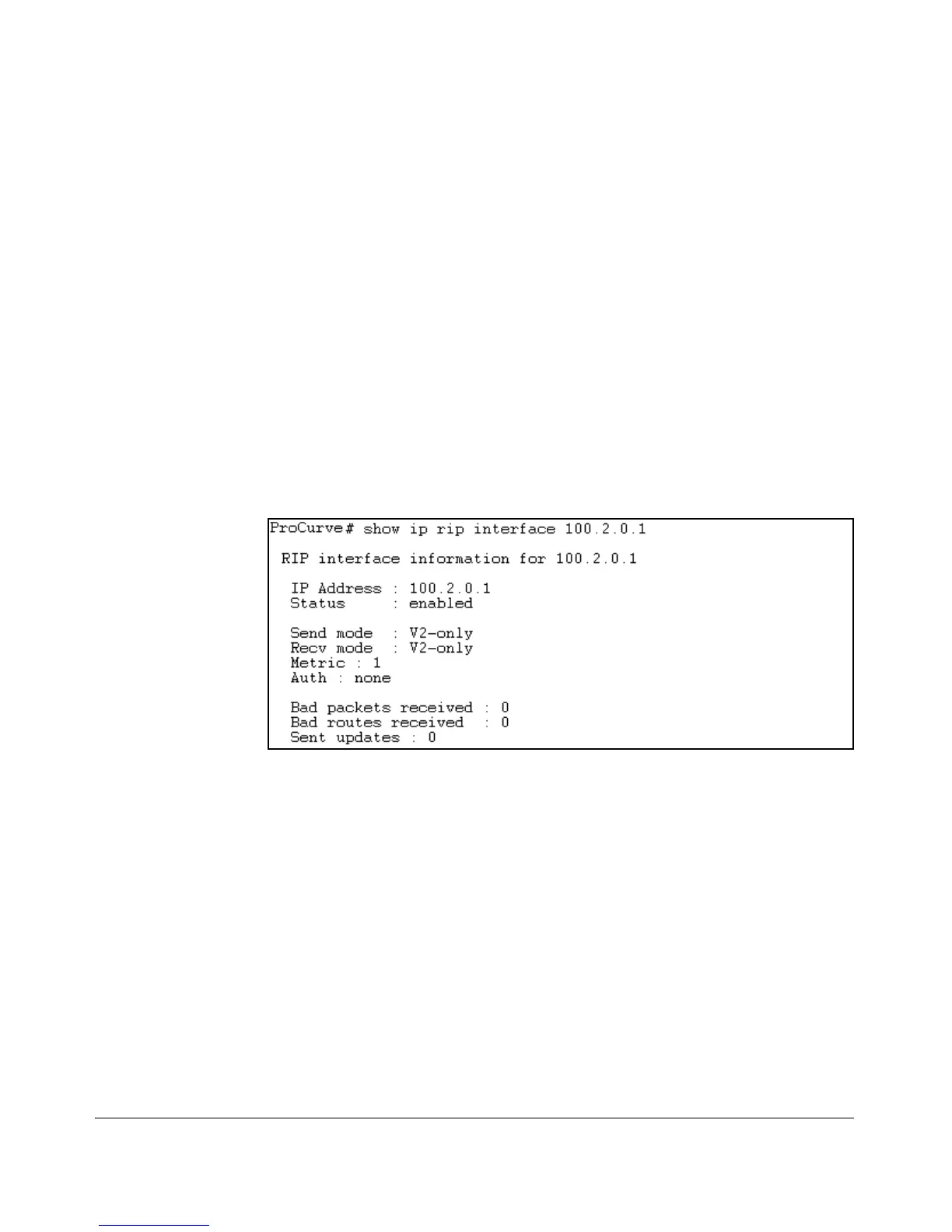

Figure 3-10. Example of Show IP RIP Interface Output by IP Address
The information shown in this display has the same fields as for the display
for a specific VLAN ID. See the previous page for the definitions of these fields.
Syntax: show ip rip interface [ip-addr | vlan < vlan-id >]
Displaying RIP Peer Information
To display RIP peer information, enter the show ip rip peer command at any
context level.
3-37

HP ProCurve 2910al Switch Specifications

General

Model	HP ProCurve 2910al Switch
Layer	Layer 3
Jumbo Frame Support	Yes
Power Device	Internal power supply
VLAN Support	Yes
Power Supply	100-240 VAC, 50/60 Hz
Ports	24 or 48 x 10/100/1000 ports
Uplink Ports	4 x SFP (mini-GBIC)
Stacking	Yes
MAC Address Table Size	32000 entries
Routing Protocol	RIP, OSPF, BGP, IGMP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP
Features	VLAN, QoS, IPv6, ACLs
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af
Operating Temperature	0 to 45°C
Operating Humidity	15% to 95% (noncondensing)
Power over Ethernet (PoE)	PoE+ (802.3at) on PoE+ models, PoE (802.3af) on PoE models
