Quality of Service (QoS): Managing Bandwidth More Effectively
Using QoS Types To Configure QoS for Outbound Traffic
2. Configure the DSCP policies for the codepoints you want to use.

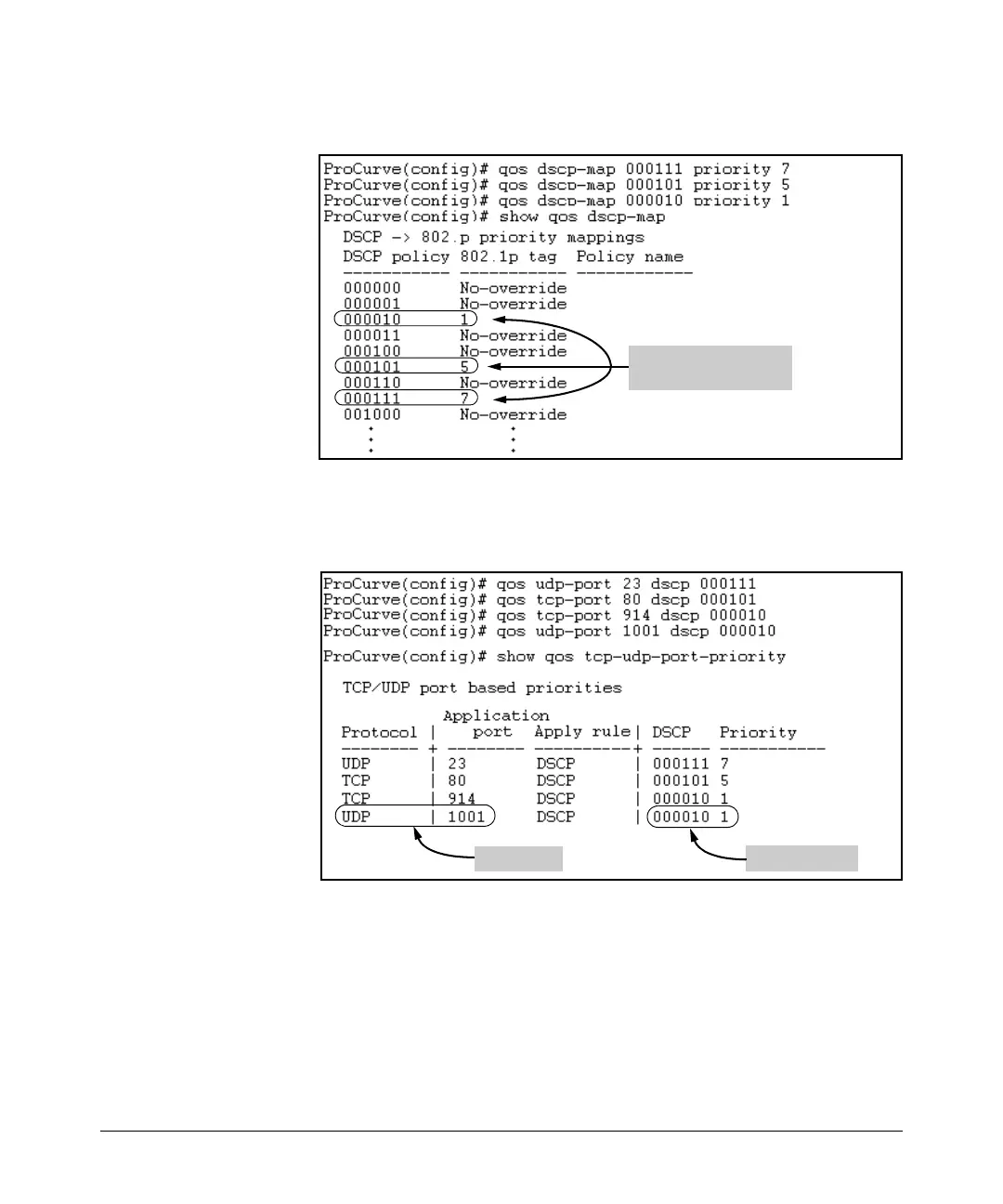

Figure 6-7. Assign Priorities to the Selected DSCPs
3. Assign the DSCP policies to the selected UDP/TCP port applications and
display the result.
Figure 6-8. The Completed DSCP Policy Configuration for the Specified
UDP/TCP Port Applications
The switch will now apply the DSCP policies in figure 6-8 to IPv4 packets
received in the switch with the specified UDP/TCP port applications. This
means the switch will:
■ Overwrite the original DSCPs in the selected packets with the new DSCPs
specified in the above policies.
■ Assign the 802.1p priorities in the above policies to the selected packets.
DSCP Policies
Configured in this Step
type
DSCP Policy
