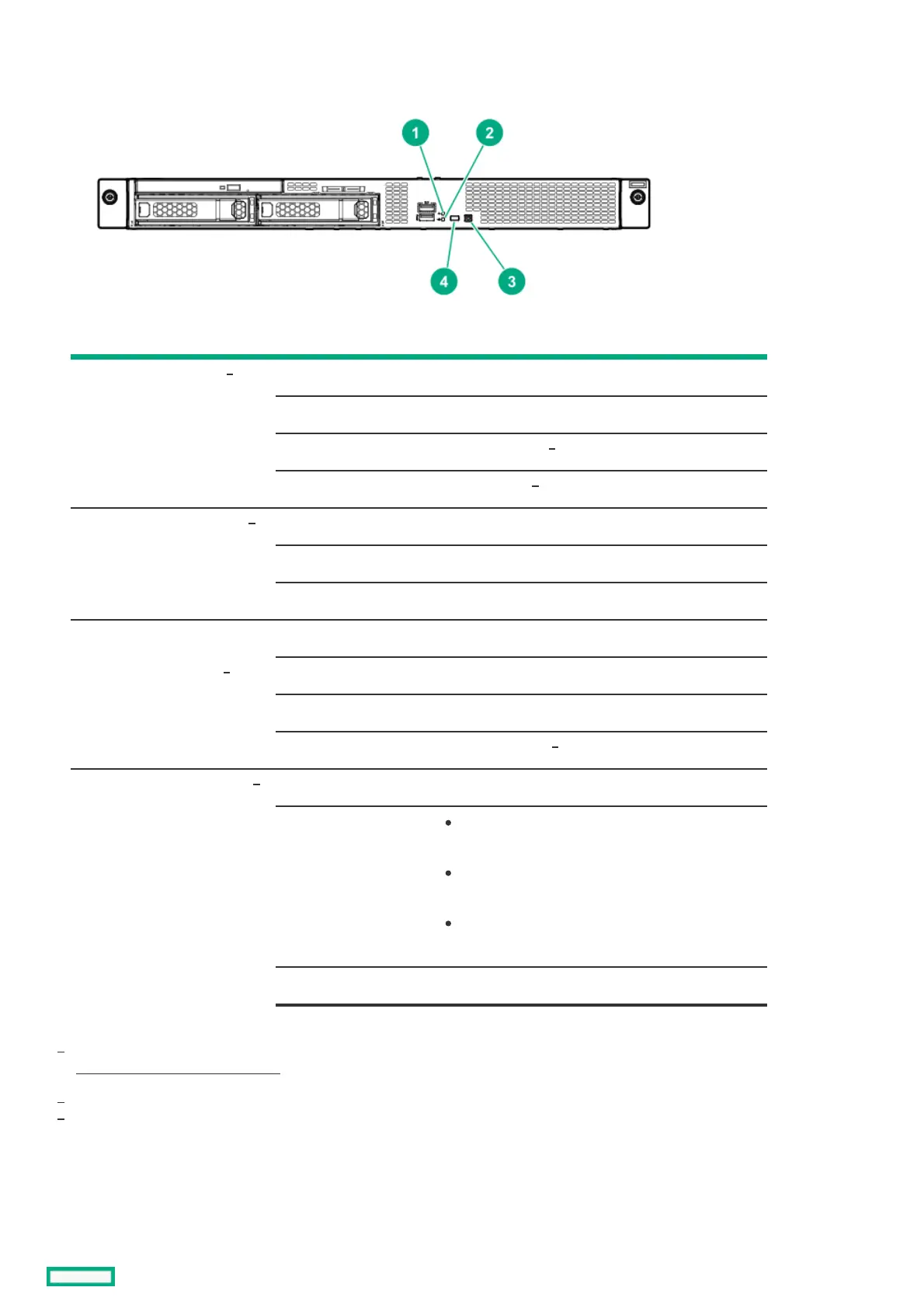

Front panel LEDs and buttonsFront panel LEDs and buttons
ItemItem DescriptionDescription StatusStatus DefinitionDefinition
1 Health LED Solid green Normal
Flashing green iLO is rebooting
Flashing amber System degraded
Flashing red System critical
2 NIC status LED Solid green Linked to network
Flashing green Network active
Off No network activity
3 Power On/Standby
button and system
power LED
Solid green System on
Flashing green Performing power-on sequence
Solid amber System in standby
Off No power present
4 UID button/LED Solid blue Activated
Flashing blue
1 flash per second = Remote management or
firmware upgrade in progress
4 flashes per second = iLO manual reboot
sequence initiated
8 flashes per second = iLO manual reboot
sequence in progress
Off Deactivated
When the LEDs described in this table flash simultaneously, a power fault has occurred. For more information, see
Front panel LED power fault codes
.
If the health LED indicates a degraded or critical state, review the system IML or use iLO to review the system health status.
Facility power is not present, power cord is not attached, no power supplies are installed, or power supply failure has occurred.
1
2
2
1
1
3
1
1
2
3
