HP ProLiant DL20 Gen10 - Installing an Expansion Board

Installing an expansion boardInstalling an expansion board
PrerequisitesPrerequisites
To determine the slot compatibility for the expansion option, review the PCIe expansion slot population rules .
Before you perform this procedure, make sure that you have a T-10 Torx screwdriver available.
ProcedureProcedure
1. If installed, remove the front bezel .
2. Power down the server.
3. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
4. Disconnect all peripheral cables from the server.
5. Remove the server from the rack .
6. Remove the access panel .
7. Remove the riser cage.
8. Identify the expansion slot compatible with the option.
9. If you are installing the expansion board in the PCIe riser slot 1, do the following:

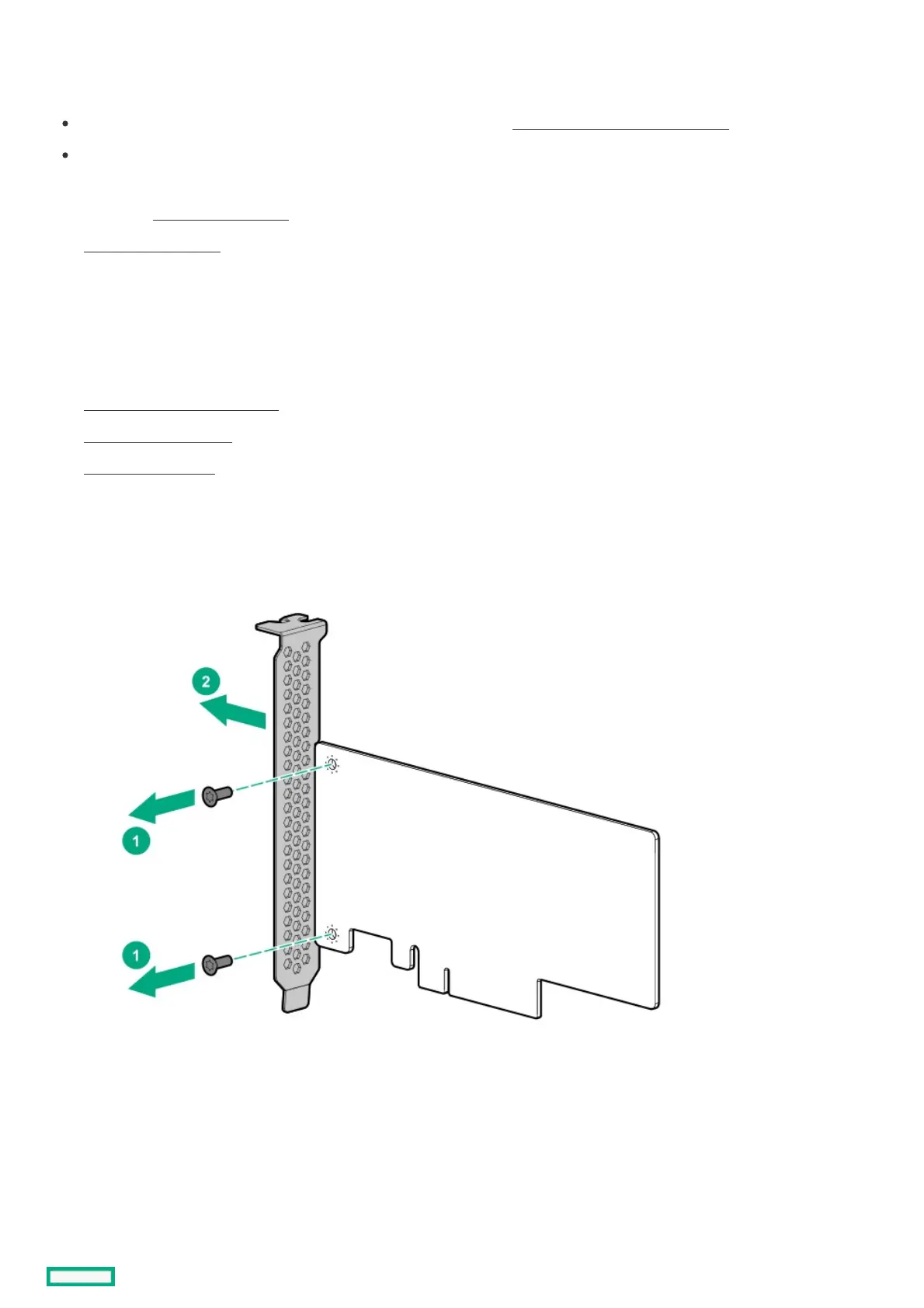

a. Remove the full-height bracket from the expansion board.
b. Install the low-profile bracket on the expansion board.
Installing an expansion board 139
