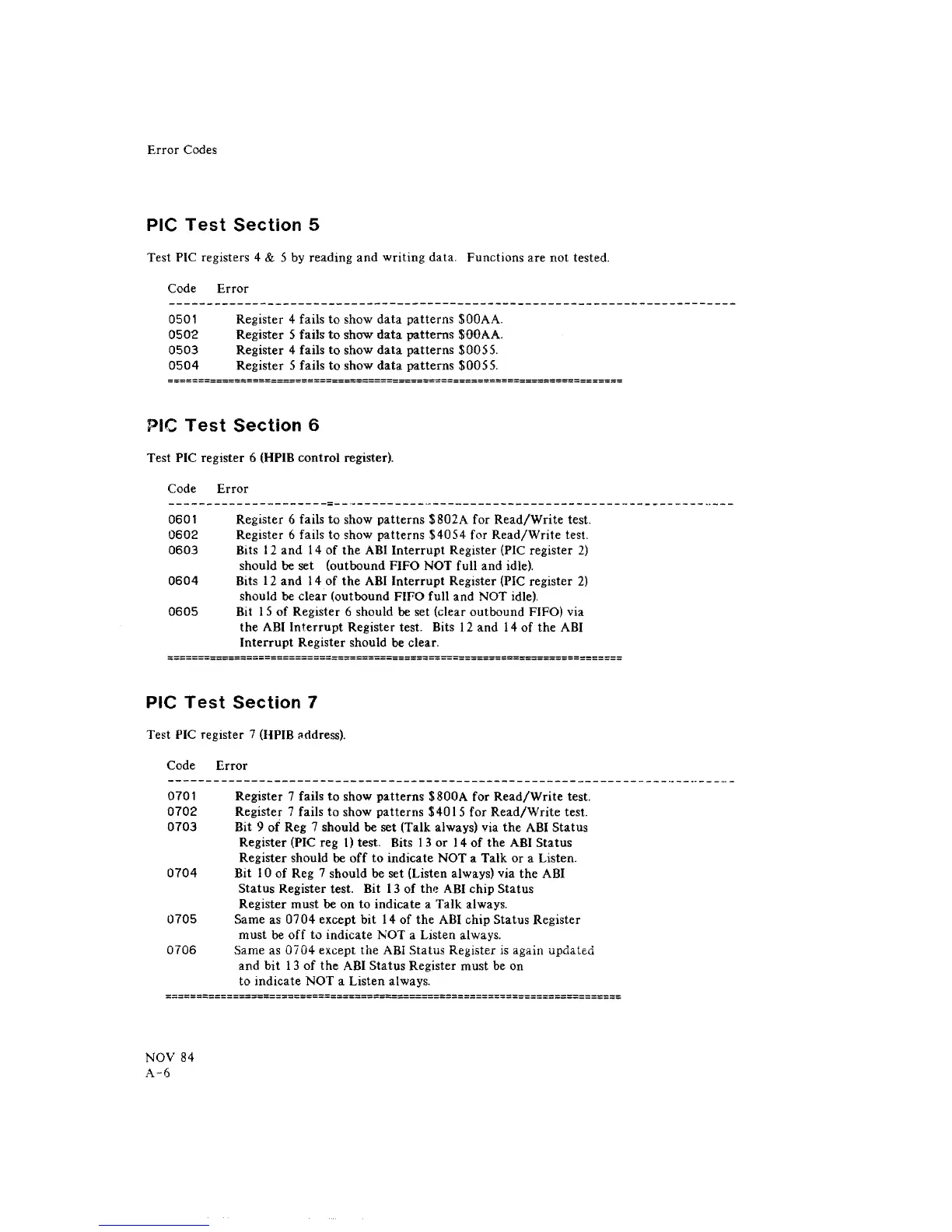

Error
Codes
PIC
Test
Section 5
Test PIC registers 4 & 5
by
reading and writing data. Functions are not tested.
Code
Error
0501 Register 4 fails to show data patterns
$OOAA.
0502
Register 5 fails
to
show
data
patterns
$OOAA.
0503
Register 4 fails to show
data
patterns $0055.
0504
Register 5 fails to show
data
patterns
$005
S.
PIC
Test
Section
6
Test PIC register 6 (HPIB control register).
Code
Error
0601 Register 6 fails
to
show patterns $802A for
Read/Write
test.
0602
Register 6 fails to show patterns
$4054
for
Read/Write
test.
0603
Bits 12 and 14 of the
ABllnterrupt
Register (PIC register
2)
should be set (outbound FIFO NOT full and idle).
0604
Bits 12 and 14 of
the
ABI
Interrupt
Register (PIC register
2)
should be clear (outbound FIFO full and NOT idle).
0605
Bit I 5
of
Register 6 should be set (clear outbound FIFO) via
the
ABI
Interrupt
Register test. Bits
12
and 14 of the
ABI
Interrupt
Register should be clear.
PIC
Test
Section
7
Test
PIC
register 7 (HPIB lIddress).
Code
Error
0701 Register 7 fails
to
show patterns $800A for
Read/Write
test.
0702
Register 7 fails to show patterns $4015 for
Read/Write
test.
0703
Bit 9
of
Reg 7 should be set (Talk always) via the
ABI
Status
Register (PIC reg
I)
test. Bits 13
or
14
of
the
ABI
Status
Register should be
off
to indicate NOT a Talk
or
a Listen.
0704
Bit
lOaf
Reg 7 should be set (Listen always) via the
ABI
Status Register test. Bit 13 of the
ABI
chip Status
Register must be on to indicate a Talk always.
0705
Same as
0704
except
bit
14 of
the
ABI
chip Status Register
must
be
off
to indicate NOT a Listen always.
0706
Same as
0704
except the
ABI
Status Register
is
again updated
and
bit
13
of
the
ABI
Status Register must be on
NOV 84
A-6
to indicate NOT a Listen always.
