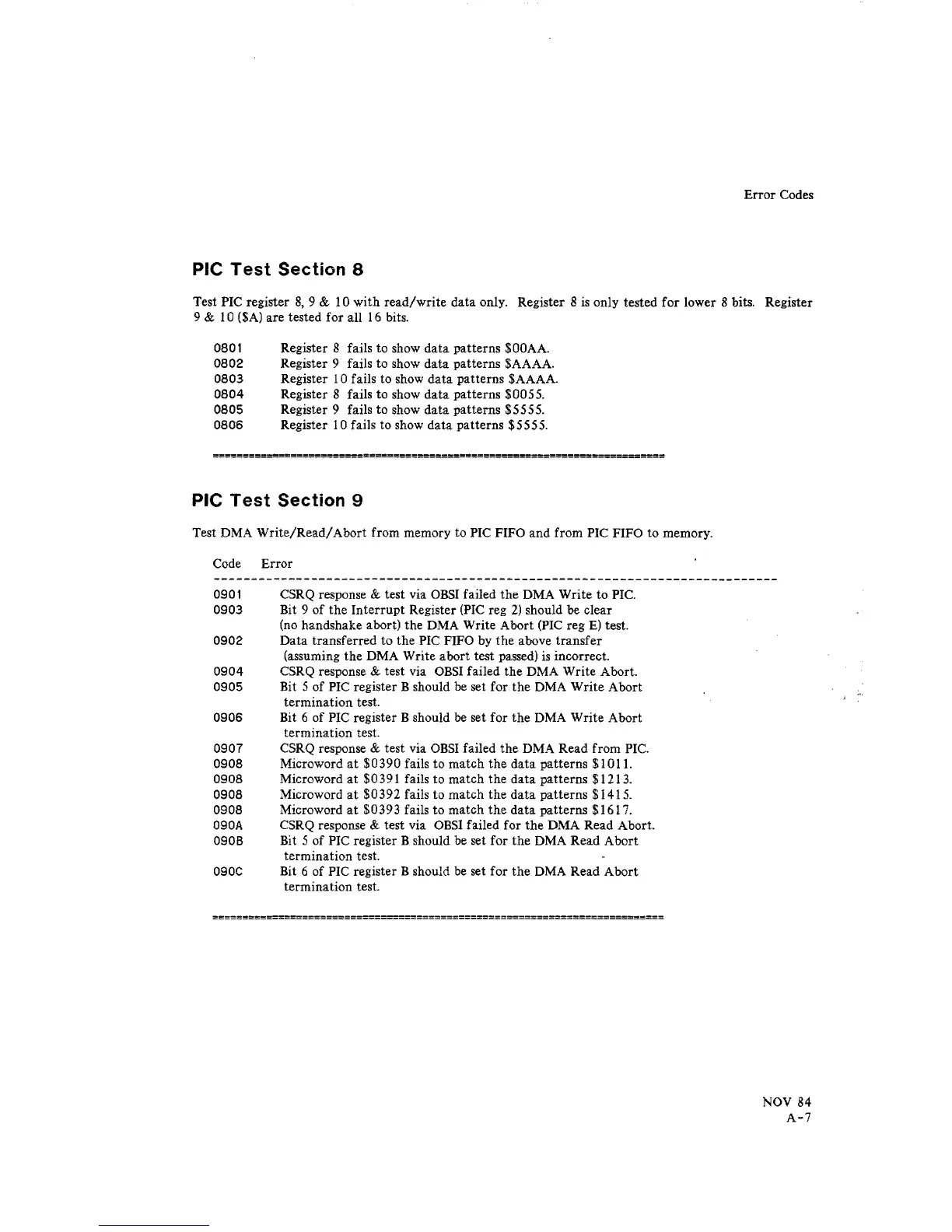

Error
Codes
PIC
Test
Section 8
Test PIC register
8,
9 & 10
with
read/write
data only. Register 8
is
only tested for lower 8 bits. Register
9
& 10 ($A) are tested for all 16 bits.
0801 Register 8 fails to show
data
patterns
$OOAA.
0802
Register 9 fails to show
data
patterns $AAAA.
0803 Register 10 fails to show
data
patterns $AAAA.
0804
Register 8 fails to show
data
patterns $0055.
0805 Register 9 fails to show
data
patterns $5555.
0806 Register 10 fails to show
data
patterns $5555.
PIC
Test
Section 9
Test DMA
Write/Read/Abort
from memory to PIC FIFO and from PIC FIFO to memory.
Code Error
0901 CSRQ response & test via
OBSI
failed
the
DMA Write
to
PIC.
0903 Bit 9
of
the
Interrupt
Register (PIC reg
2)
should be clear
(no handshake abort) the DMA Write Abort
(PIC reg
E)
test.
0902 Data transferred to the PIC FIFO by
the
above
transfer
(assuming the DMA Write abort test passed)
is
incorrect.
0904
CSRQ response & test via
OBSI
failed the DMA Write Abort.
0905 Bit 5 of PIC register B should be set for the DMA Write Abort
termination test.
0906 Bit 6 of PIC register B should
be
set for
the
DMA Write Abort
termination test.
0907
CSRQ response & test via
OBSI
failed
the
DMA Read from PIC.
0908 Microword
at
$0390
fails to match
the
data patterns $1011.
0908 Microword
at
$0391 fails to match the
data
patterns $1213.
0908 Microword
at
$0392
fails to match the
data
patterns $1415.
0908 Microword
at
$0393
fails to match
the
data
patterns
$1617.
090A CSRQ response & test via
OBSI
failed for
the
DMA Read Abort.
090B Bit 5 of PIC register B should be set for
the
DMA Read Abort
termination test.
090e Bit 6 of PIC register B should
be
set for
the
DMA Read Abort
termination test.
NOV 84
A-7
