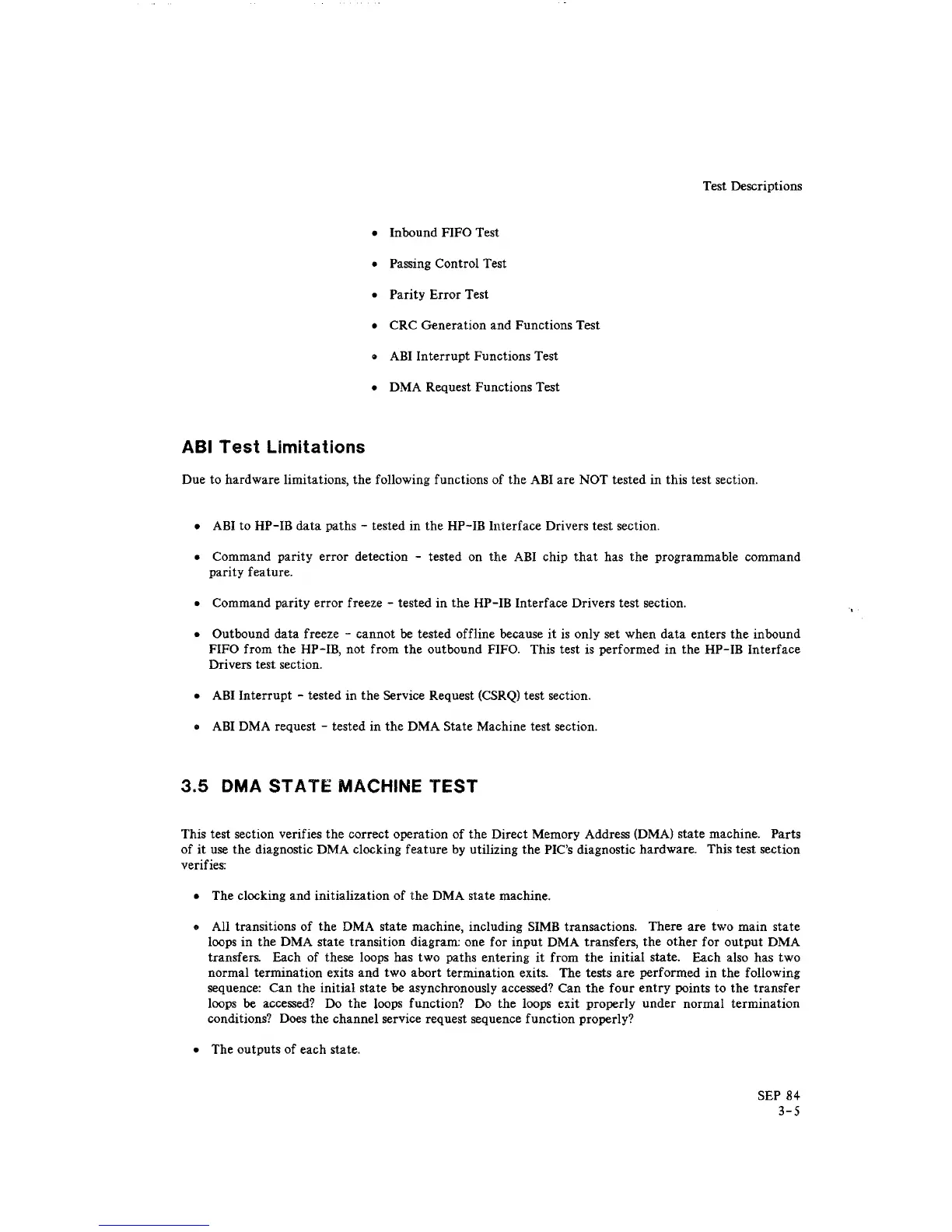

Test Descriptions
• Inbound FIFO Test
• Passing Control Test
• Parity
Error
Test
• CRC Generation and Functions Test
..
ABI
Interrupt
Functions Test
• DMA Request Functions Test
ABI
Test
Limitations
Due to hardware limitations,
the
following functions
of
the
ABI
are NOT tested in this test section.
•
ABI
to HP-IB
data
paths - tested in the HP-IB Interface Drivers test section.
• Command parity
error
detection - tested on the
ABI
chip
that
has
the
programmable command
parity feature.
• Command parity
error
freeze - tested
in
the HP-IB Interface Drivers test section.
• Outbound data freeze - cannot be tested offline because
it
is
only set when
data
enters
the
inbound
FIFO from
the
HP-IB, not from the outbound FIFO. This test is performed
in
the
HP-IB Interface
Drivers test section.
•
ABI
Interrupt
- tested
in
the
Service Request
(CSRQ)
test section.
•
ABI
DMA request - tested in
the
DMA State Machine test section.
3.5
DMA
STATE
MACHINE
TEST
This test section verifies the correct operation
of
the
Direct Memory Address (DMA) state machine. Parts
of
it
use the diagnostic DMA clocking
feature
by
utilizing
the
PIC's diagnostic hardware. This test section
verifies:
• The clocking and initialization
of
the
DMA state machine.
• All transitions
of
the DMA state machine, including
SIMB
transactions. There
are
two main state
loops
in
the
DMA state transition diagram: one for
input
DMA transfers, the
other
for
output
DMA
transfers. Each of these loops has two paths entering
it
from
the
initial state. Each also has two
normal termination exits and two abort termination exits. The tests
are
performed
in
the following
sequence: Can
the
initial state be asynchronously accessed? Can
the
four
entry
points to the
transfer
loops be accessed? Do
the
loops function? Do
the
loops exit properly
under
normal termination
conditions? Does
the
channel service request sequence function properly?
• The outputs
of
each state.
SEP 84
3-5
