ENHANCED KEYBOARD 155
Appendix D

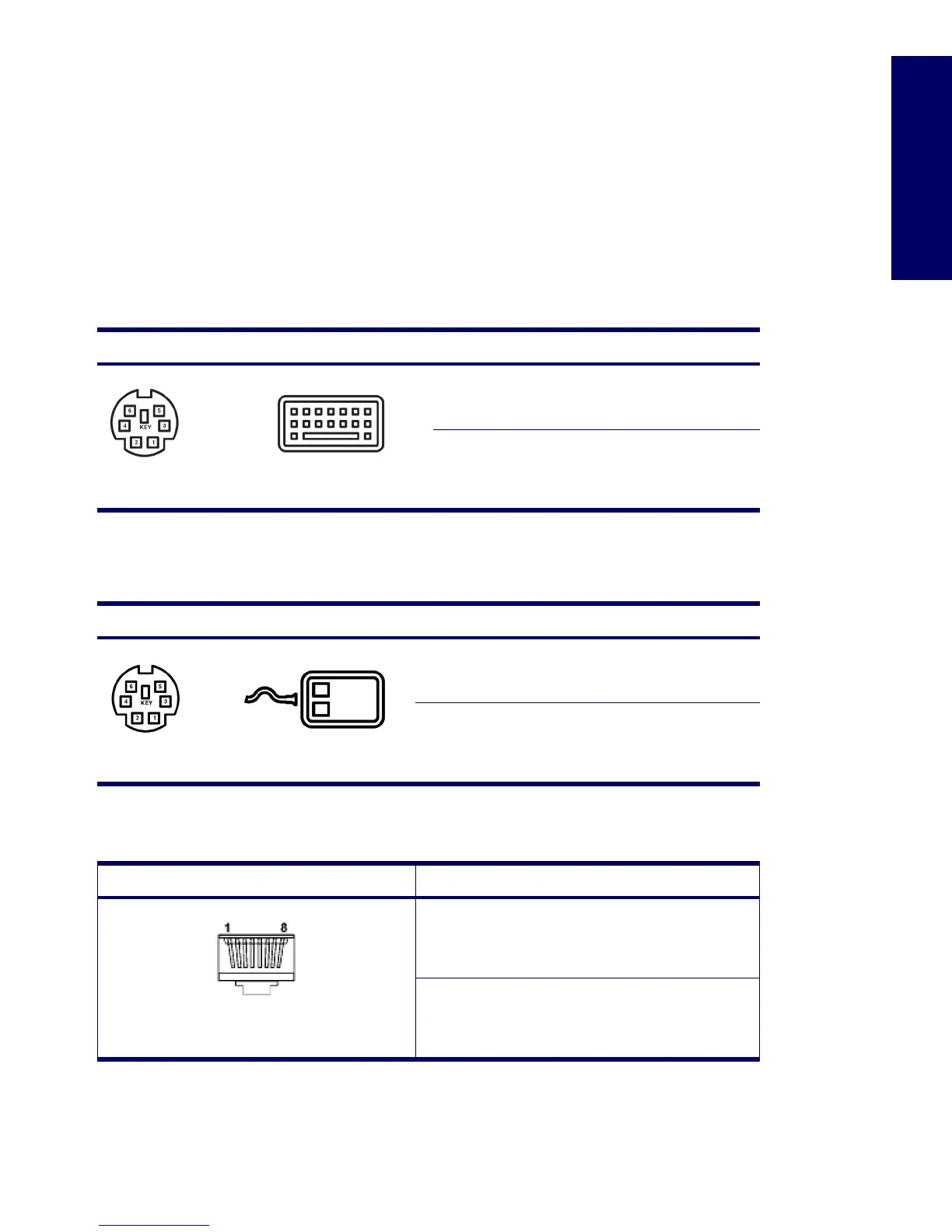

Appendix D Connector Pins
Enhanced Keyboard
Mouse
Ethernet RJ-45
Keyboard Connector Pin Signal
1
2
3
Data
Unused
Ground
4
5
6
+5 VDC
Clock
Unused
Mouse Connector Pin Signal
1
2
3
Data
Unused
Ground
4
5
6
+5 VDC
Clock
Unused
Ethernet Connector Pin Signal
1
2
3
4
(+) Transmit Data
(-) Transmit Data
(+) Receive Data
Unused
5
6
7
8
Unused
(-) Receive Data
Unused
Unused
