SYSTEM BOARD COMPONENTS 67
Chapter 4
System Board Components

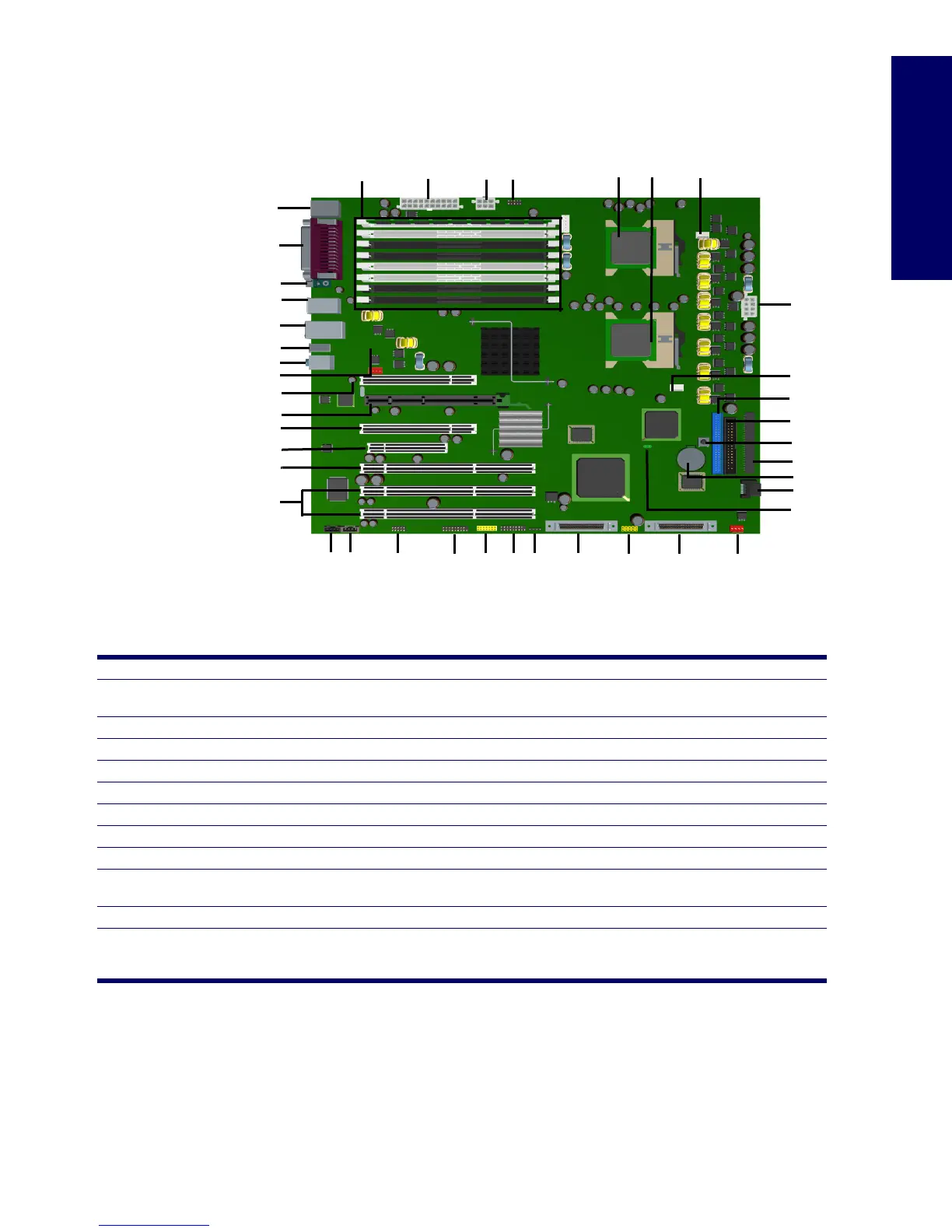

The following image shows the system board connectors and sockets on the HP Workstation xw8200.
1
2
34
6
5
7
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27 26 25
24 23 22 21 20 19 18 17
8
9
10
11
12
13
14
15
16
Table 4-3 System Board Components
1 Memory module pairs 12 Clear CMOS button 23 Front IEEE 1394 34 Rear chassis fan
2 Main power 13 Secondary IDE* 24 Trusted platform
module
35 Audio
3 Auxiliary power 14 Battery 25 Front audio 36 IEEE 1394
4 MultiBay 15 Serial ATA 26 Auxiliary audio 37 Network/USB
5 Processor 1 16 Password header 27 CD audio 38 USB
6 Processor 2 17 Front chassis fan 28 PCI-X 100 39 Serial
7 Processor 1 fan 18 Primary SCSI 29 PCI-X 133 40 Parallel
8 Processor power 19 Front USB 30 PCI Express x8*** 41 PS/2 Keyboard/mouse
9 Processor 2 fan 20 Secondary SCSI 31 PCI
10 Primary IDE** 21 Hard disk activity LED 32 PCI Express x16
(graphics)
11 Diskette drive 22 Front control panel 33 PCI
*The Secondary IDE connector is generally used for optical drives.
**The Primary IDE connector is generally used for hard drives
***The PCI Express x8 prime is a PCI-Express x8 connector that has x4 bandwidth.
