72 REMOVAL AND REPLACEMENT PROCEDURES

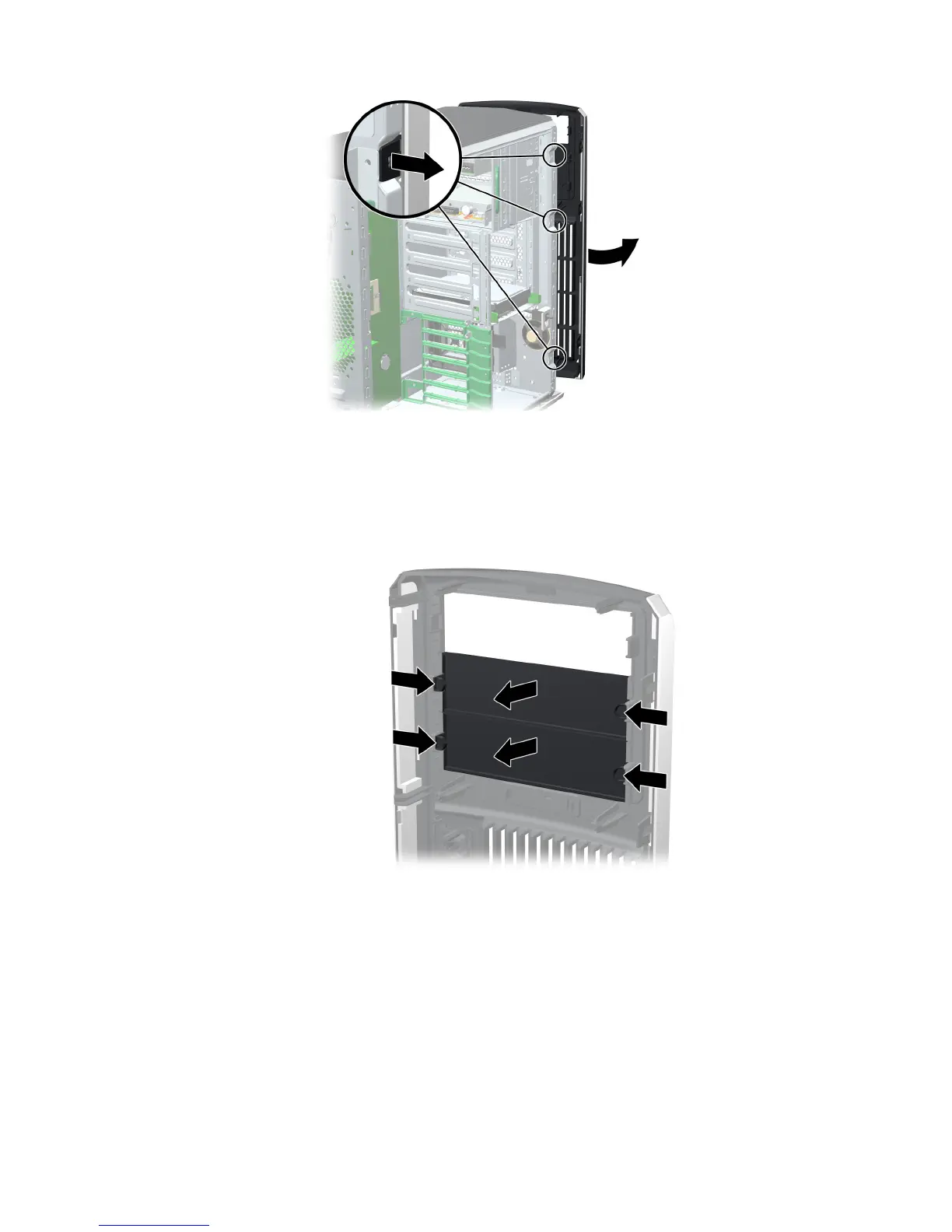

2 Rotate the front bezel away 2 from the chassis and remove the bezel.
Bezel Blanks
To remove the bezel blanks:
1 Disconnect power from the system (page 66) and remove the front bezel (page 71).
2 Remove the bezel blanks by squeezing in on the tabs and pushing the bezel blanks out.
Hood Sensor (Smart Cover Sensor)
To remove the hood sensor:
1 Disconnect power from the system (page 66), remove the access panel (page 71), and lay the
workstation on its side with the system board facing up.
2 Disconnect the white 1x3 hood sensor connector from the inline connector attached to the front panel
harness.
3 Slide the hood sensor forward.
