REMOVAL AND REPLACEMENT OF COMPONENTS 91
Chapter 4
2 While lifting the green drivelock release tab, slide the drive forward into the chassis.

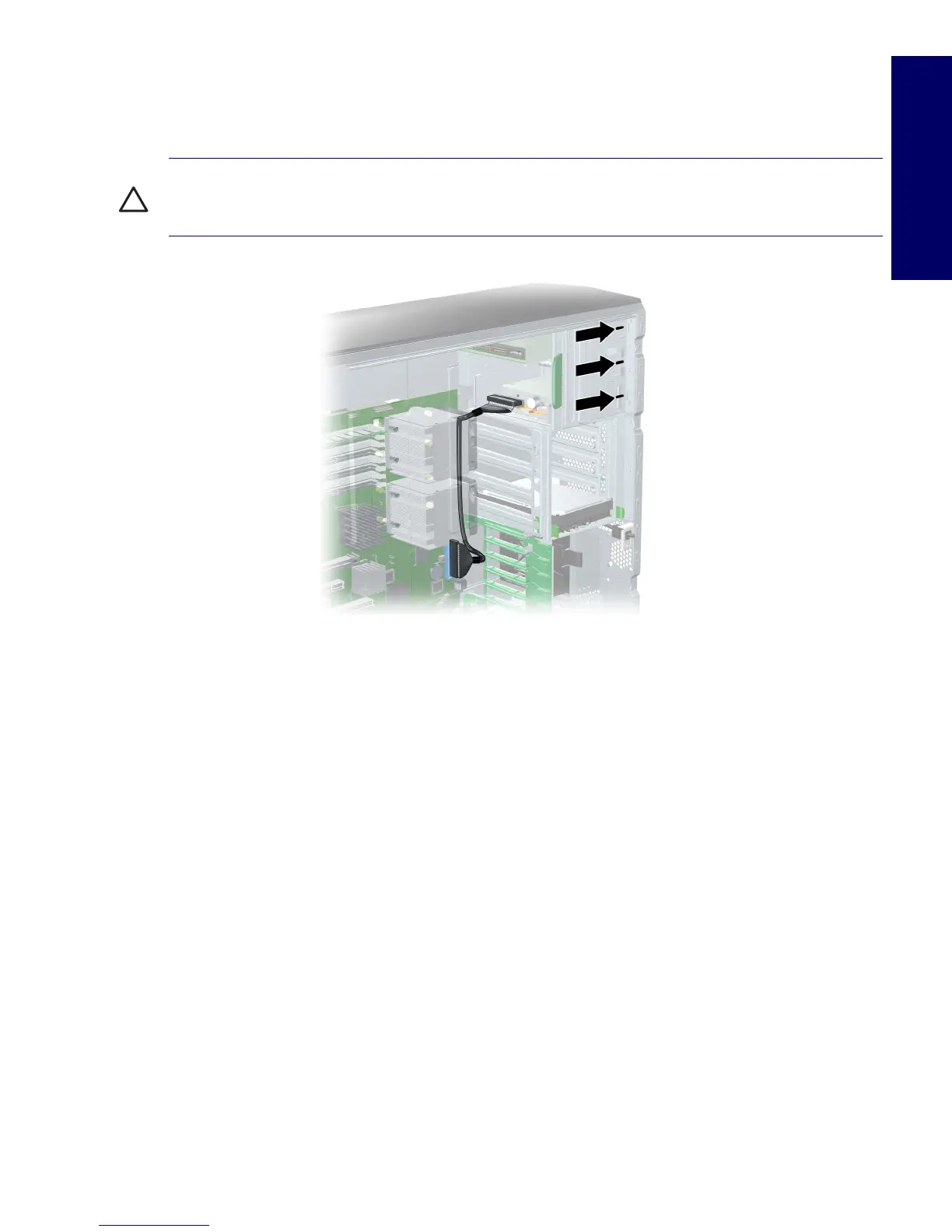

3 Route the diskette drive data cable between the system board and the hard drive cage. Your cable
might look different than the one shown.
CAUTION The cable must stay between the system board and the hard drive cage. It might be
necessary to push the cable down so that it catches on the system board. This routing method is
important because you do not want to interfere with the CPU heatsink fans or block airflow.
4 Connect the cables from the back of the diskette drive.
Hard Drive
For more information on SATA hard drives and the SATA RAID configuration, see Appendix B, “SATA
Devices,” on page 145.
Removing a Hard Drive
1 Disconnect power from the system (page 66) and remove the access panel (page 71).
2 Disconnect the cables from the back of the hard drive.
To Next Page
