90 REMOVAL AND REPLACEMENT PROCEDURES

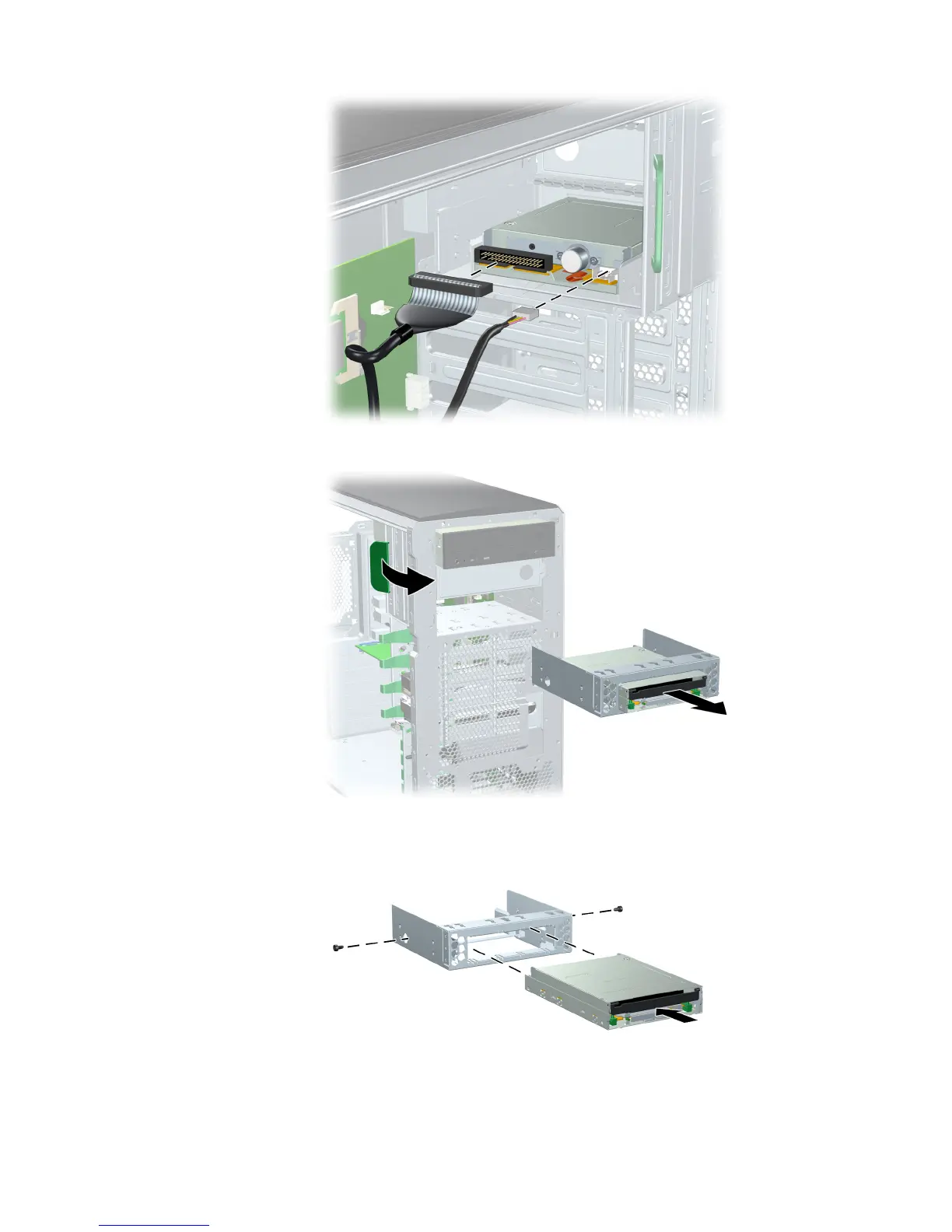

2 Disconnect the cables from the back of the diskette drive.
3 While lifting the green drivelock release tab, slide the drive forward out of the chassis.
4 Remove the diskette drive by removing the two M3 screws in the rearmost holes and sliding the
diskette drive from the bracket.
To replace an optional diskette drive:
1 Slide the diskette drive into the bracket and secure with two M3 screws.
