70 REMOVAL AND REPLACEMENT PROCEDURES
Cable Lock (Optional)

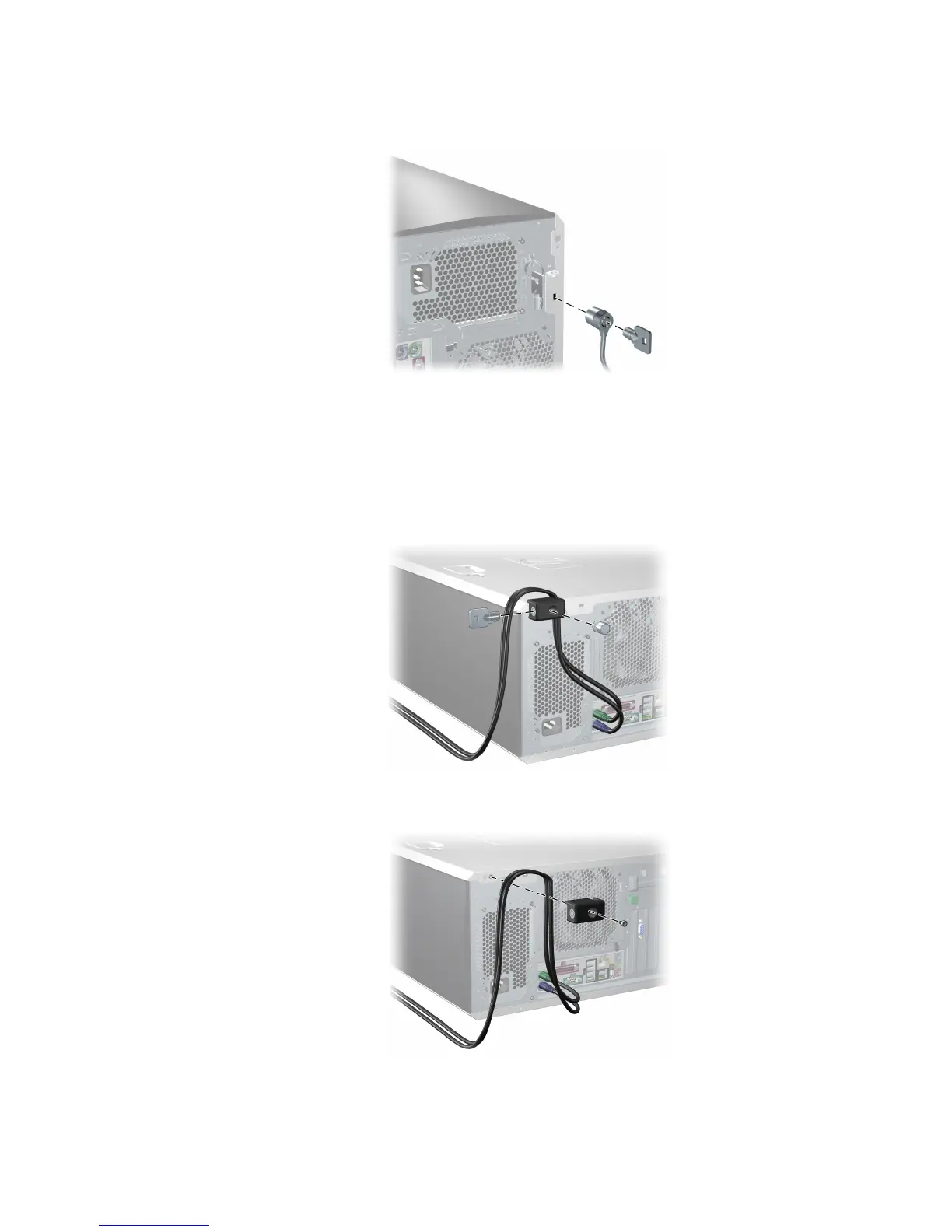

If a cable lock is installed, remove it before servicing the unit. To remove the cable lock, unlock it and pull
it out of the cable lock slot as shown in the following image.
Universal Chassis Clamp Lock (Optional)
If a universal chassis clamp lock is installed, remove it before servicing the unit.
To remove the lock:
1 Unlock the device and remove the locking mechanism.
2 Remove the screw attaching the lock to the chassis.
