Front Panel Components

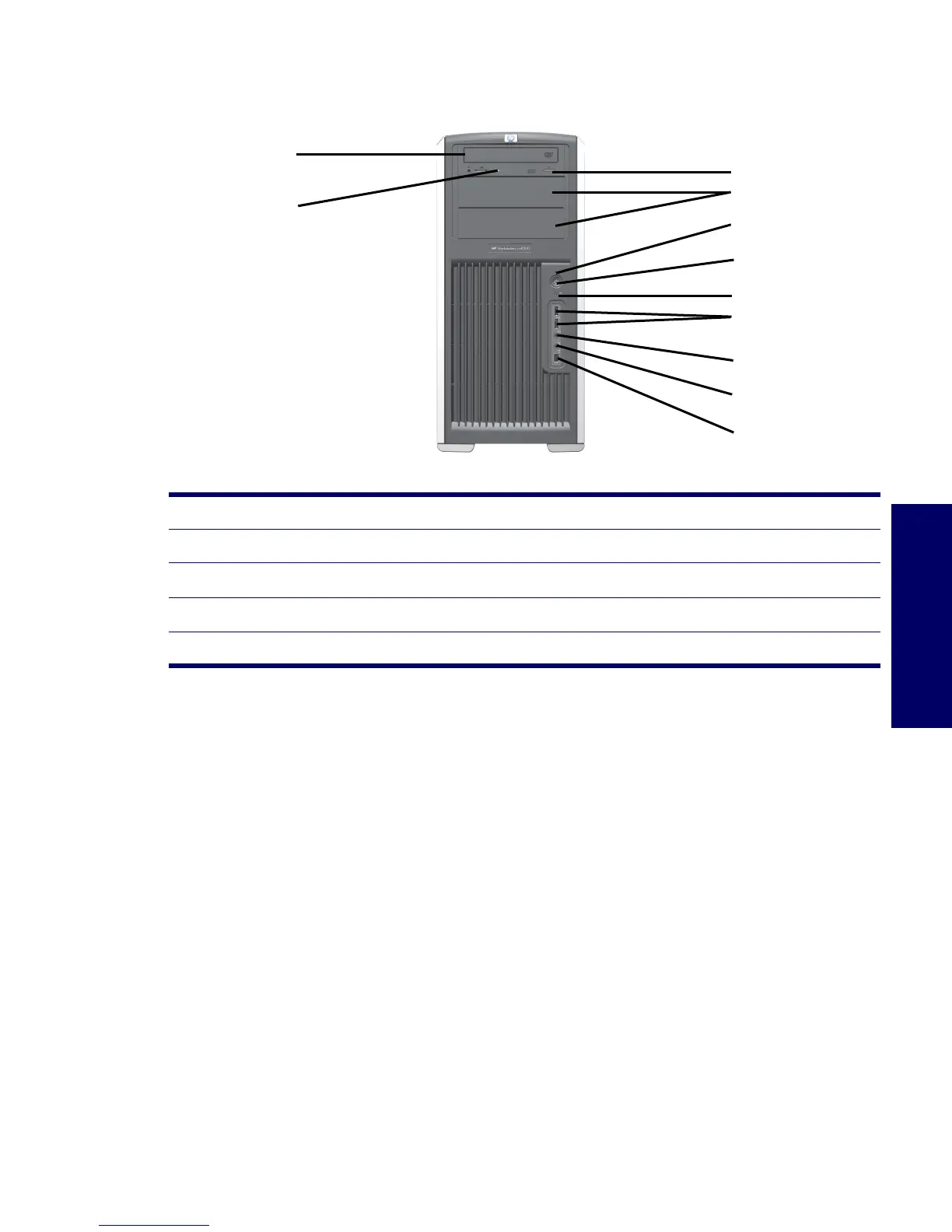

The following image shows a typical HP Workstation xw8200. Drive configurations can vary.
Table 1-2 Front Panel View
1 Optical Drive Eject Button 5 Hard Drive Activity Light 9 IEEE-1394 Connector
2 5.25-Inch Drive Bays (x2) 6 Universal Serial Bus (USB) (x2) 10 Optical Drive Activity Light
3 Power On Light 7 Headphone Connector 11 Optical Drive*
4 Power Button 8 Microphone Connector
*An optical drive is a CD-ROM, CD-R/RW, DVD-ROM, DVD+R/RW, or CD-RW/DVD combo drive.
11
1
10
2
3
4
5
6
7
8
9
