REMOVAL AND REPLACEMENT OF COMPONENTS 85
Chapter 4
4 Lower the PCI 3 or PCI Express 3 card into the chassis. Verify that the keyed components of the card
align with the socket. If installing a PCI Express card, plug in the power supply cable, required.
5 Close the PCI levers. If the PCI levers do not close, be sure all cards are properly seated and then try
again.
6 If installing a PCI Express card, plug in the power supply cable, if required.
Front Fan Removal (Optional)
1 Disconnect power from the system (page 66), remove the access panel (page 71), and lay the
workstation on its side with the system board facing up.
2 Disconnect the connector 1 from the header on the system board.
3 Unsnap the fan housing from the chassis and lift it out of the workstation.

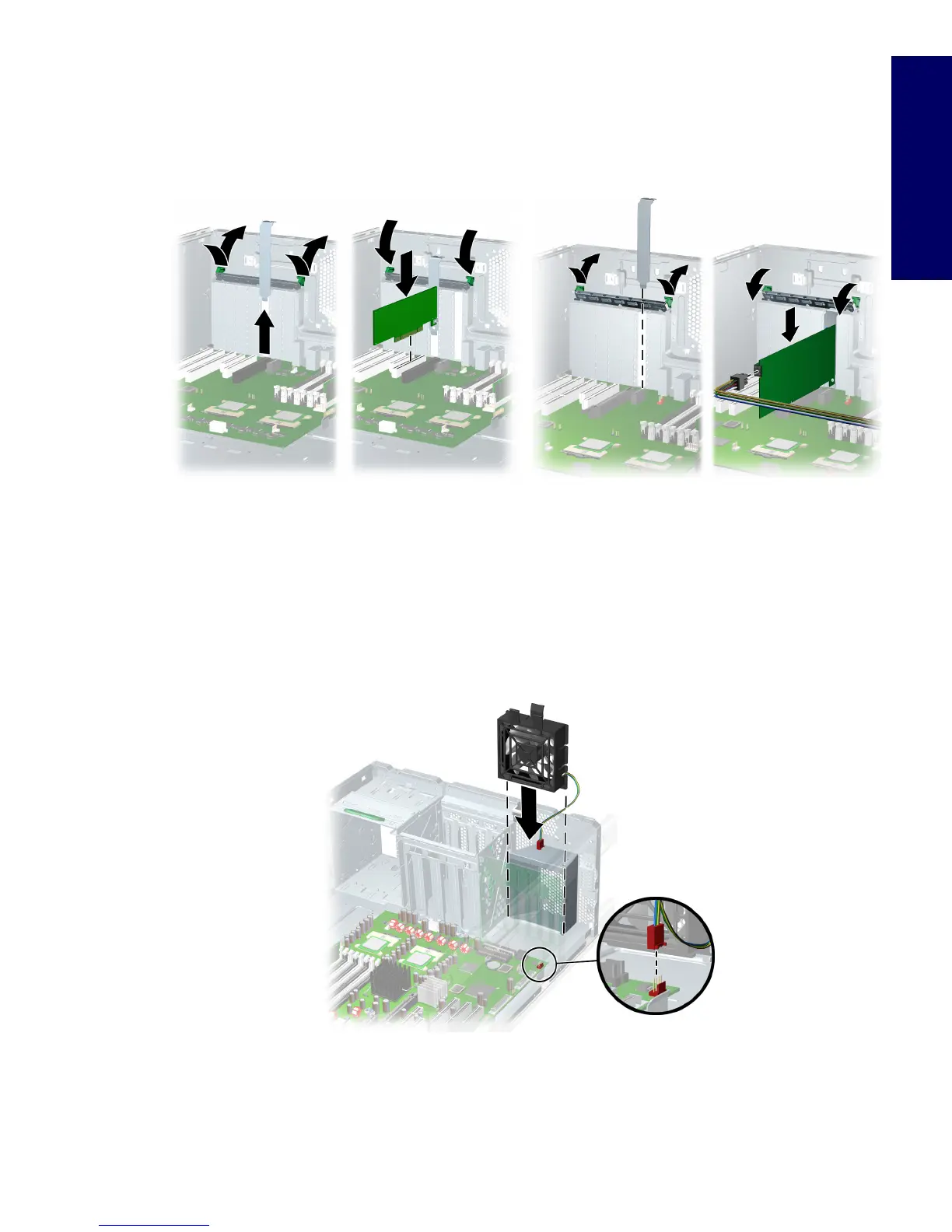

Figure 4-2 PCI Installation
Figure 4-2 PCI Express Installation
1
2
3
3
4
4
5
1
2
