CAUTION Be careful when sliding the hood sensor forward. The hood sensor bracket and the chassis
contain sharp edges that present a safety hazard.

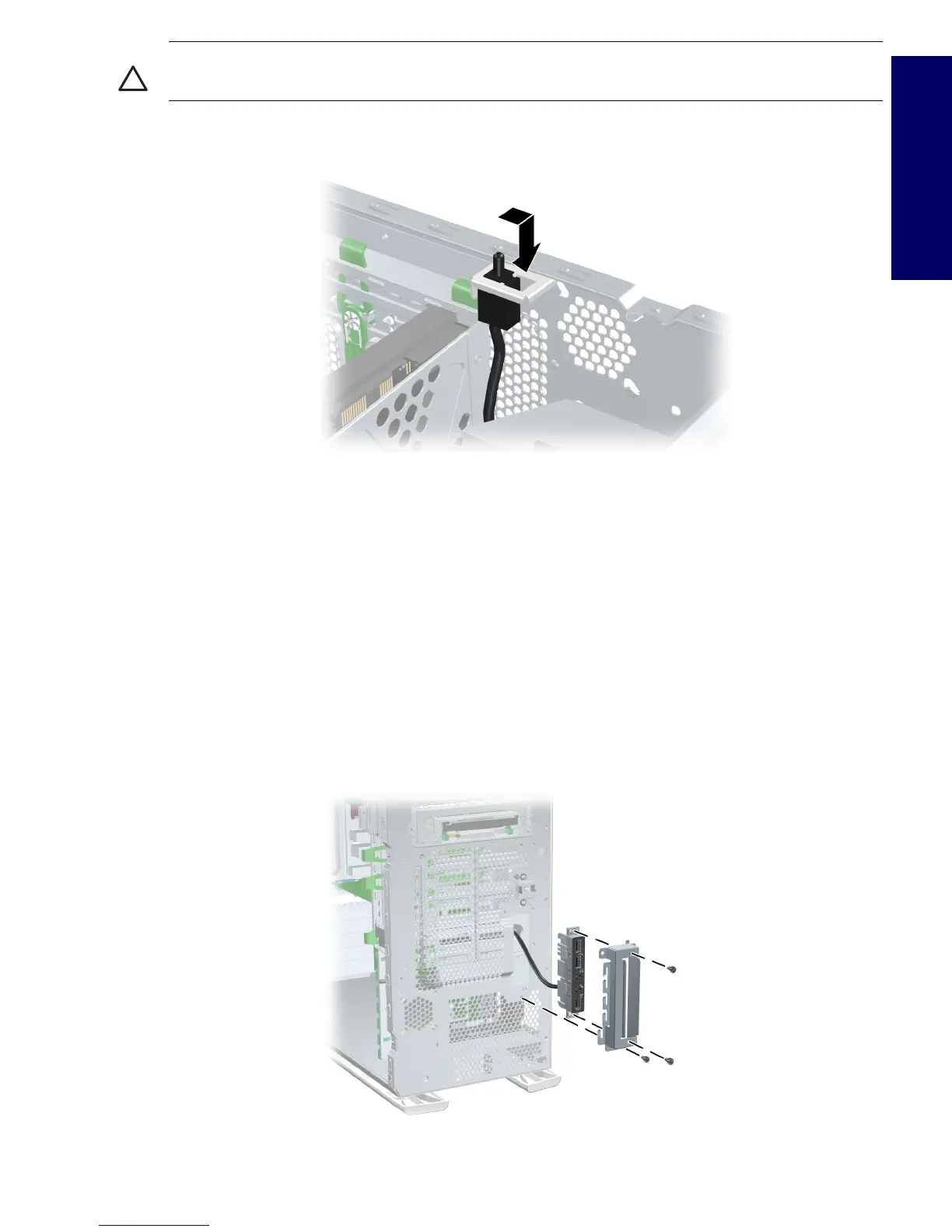

4 Push the hood sensor down and remove it from the chassis.
To replace the hood sensor, reverse the previous steps.
Front Panel I/O Device Assembly
1 Disconnect power from the system (page 66), remove the access panel (page 71), and remove the
front bezel (page 71).
2 Unlatch the plastic snap that secures the cables inside the chassis and disconnect the front panel I/O
device assembly cables from the system board.
3 Remove the screws that hold the front panel I/O device assembly and bracket to the chassis and
remove the screws that hold the front panel I/O device assembly to the bracket.
4 Pull the front panel I/O device assembly out about two inches away from the chassis.
5 Separate the bracket away from the front panel I/O device assembly.
