REMOVAL AND REPLACEMENT OF COMPONENTS 79
Chapter 4

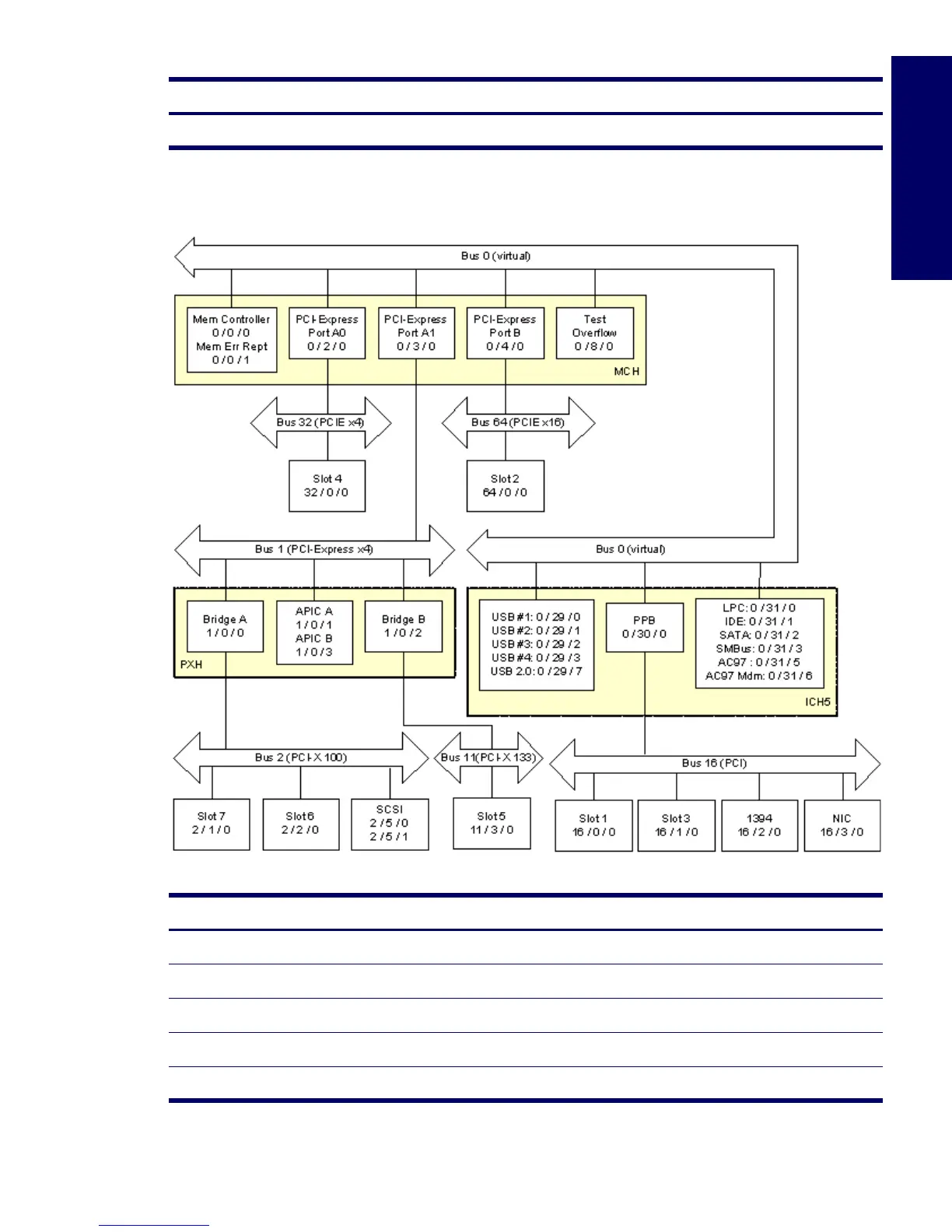

PCI Bus Layout
7 PCI-X 100 J24
Table 4-5 PCI Device List
Device Bus# Dev# Fn#
MCH 00 0
MCH Errors 0 0 1
MCH EXP A (Slot 1) 0 2 0
MCH EXP A1 (PXH) 0 3 0
MCH EXP B (Slot 2) 0 4 0
Table 4-4 PCI Slot Types
Slot Type Ref
