Table 5-6 WWAN module descriptions and part numbers
Description Spare part number
Intel XMM 7360 LTE-Advanced (Cat 9) L70670-001
IMPORTANT: To prevent an unresponsive system, replace the wireless module only with a wireless module
authorized for use in the computer by the governmental agency that regulates wireless devices in your country
or region. If you replace the module and then receive a warning message, remove the module to restore device
functionality, and then contact technical support.
Before removing the WWAN module, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 66).
2. Remove the service cover (Service cover on page 40).
3. Remove the battery (see Battery on page 41).
Remove the WWAN module:

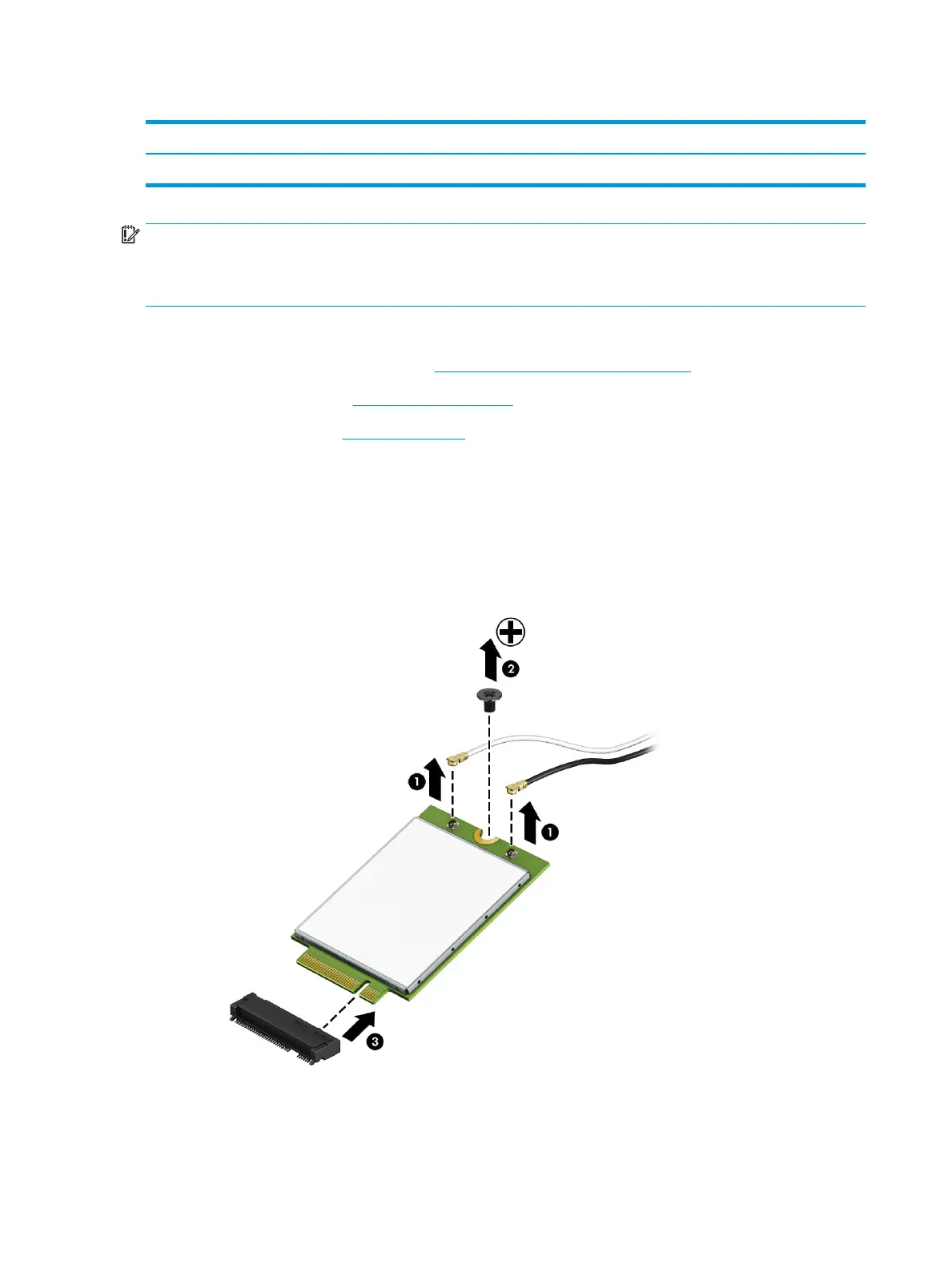

1. Disconnect the WWAN antenna cables (1) from the terminals on the WWAN module.
2. Remove the Phillips M2.0 × 2.0 screw (2) that secures the WWAN module to the bottom cover. (The WWAN
module tilts up.)
3. Remove the WWAN module (3) by pulling the module away from the slot at an angle.
48 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts ENWW
