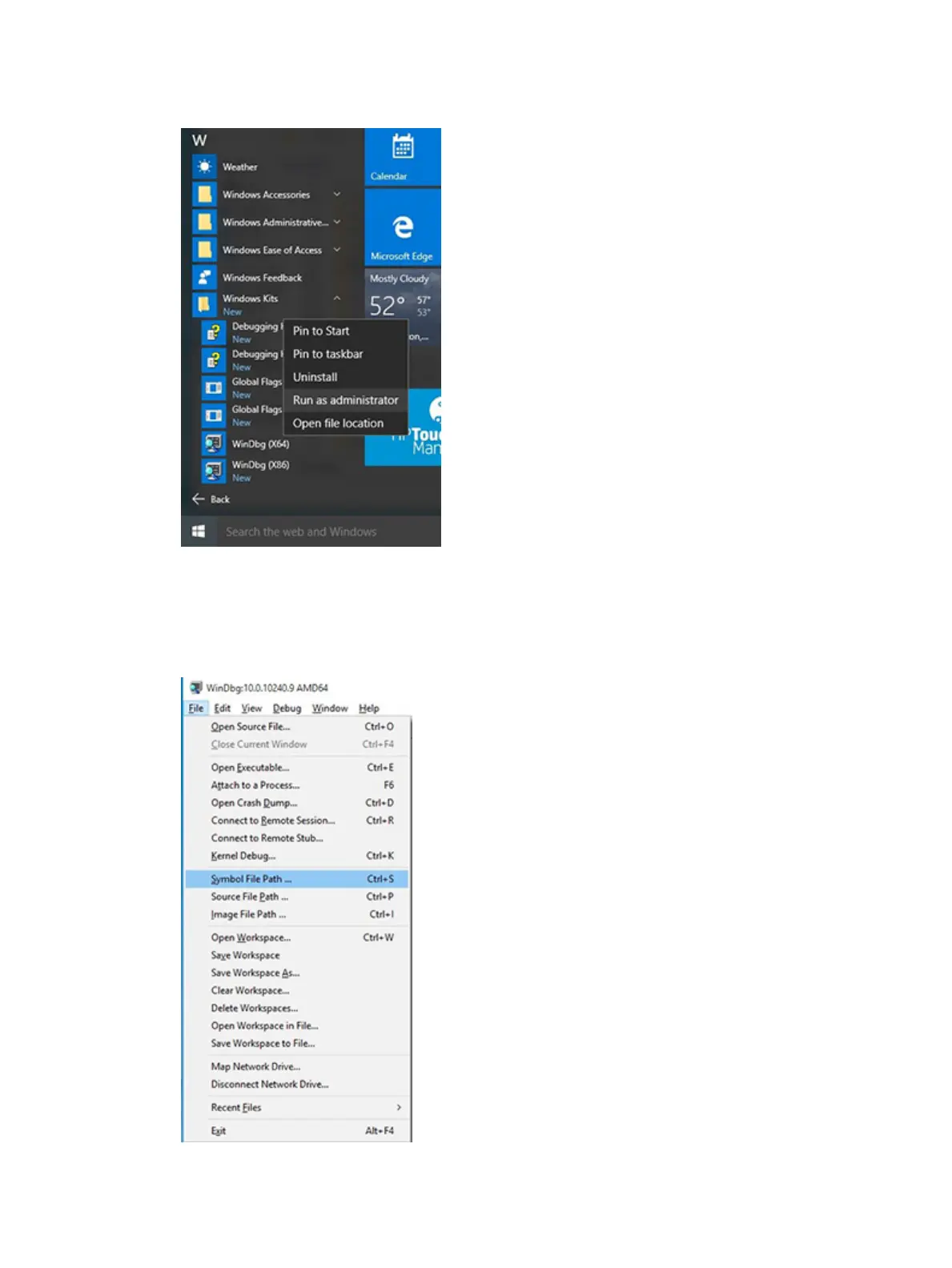

4. Run the SDK as an administrator.

5. Set the symbol path. Select File > Symbol File Path.

● In the Symbol path box, type SRV*C:\Windows\symbol_cache*http://

msdl.microsoft.com/download/symbols.

● Save the workspace.
