Display panel cable
Description Spare part number
Display panel cable (includes extension cable, grounding tape, and double-sided adhesive) L13280-001
Before removing the display panel cable, follow these steps:
1. Shut down the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the tablet.
3. Disconnect the power from the tablet by rst unplugging the power cord from the AC outlet.
4. Remove the display panel assembly (see Display panel assembly on page 30).

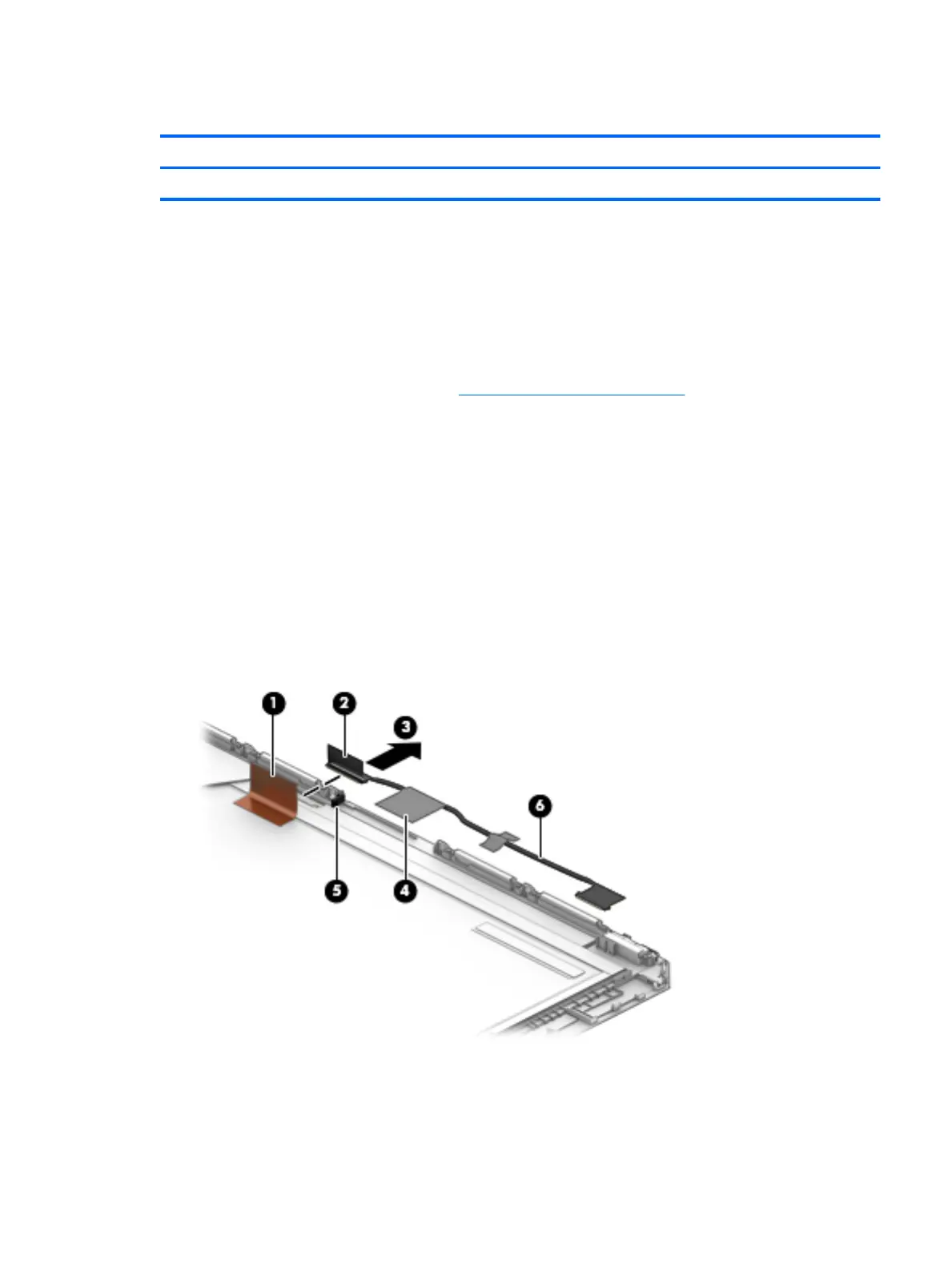

Remove the display panel cable:
1. Release the shielding material (1) that covers the display panel cable connector on the display
panel assembly.
2. Release the adhesive support strip (2) that secures the display panel cable connector to the display
panel assembly.
3. Use the release bar (3) to disconnect the display panel cable from the display panel assembly.
4. Release the grounding tape (4) that secures the display panel cable to the display panel assembly.
5. Release the display panel cable from the retention clip (5) that secures the display panel cable to the
display panel assembly.
6. Disconnect the DreamColor cable (6) from the display panel assembly (select models only).
7. Remove the display panel cable.
Reverse this procedure to install the display panel cable.
Component replacement procedures 37
