QuickKey button board
Description Spare part number
QuickKey button boards (2, includes left and right button boards and cables) L03247-001
Before removing the QuickKey button boards, follow these steps:
1. Shut down the tablet. If you are unsure whether the tablet is o or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the tablet.
3. Disconnect the power from the tablet by rst unplugging the power cord from the AC outlet.
4. Remove the display panel assembly (see Display panel assembly on page 30).
Remove the QuickKey button boards:

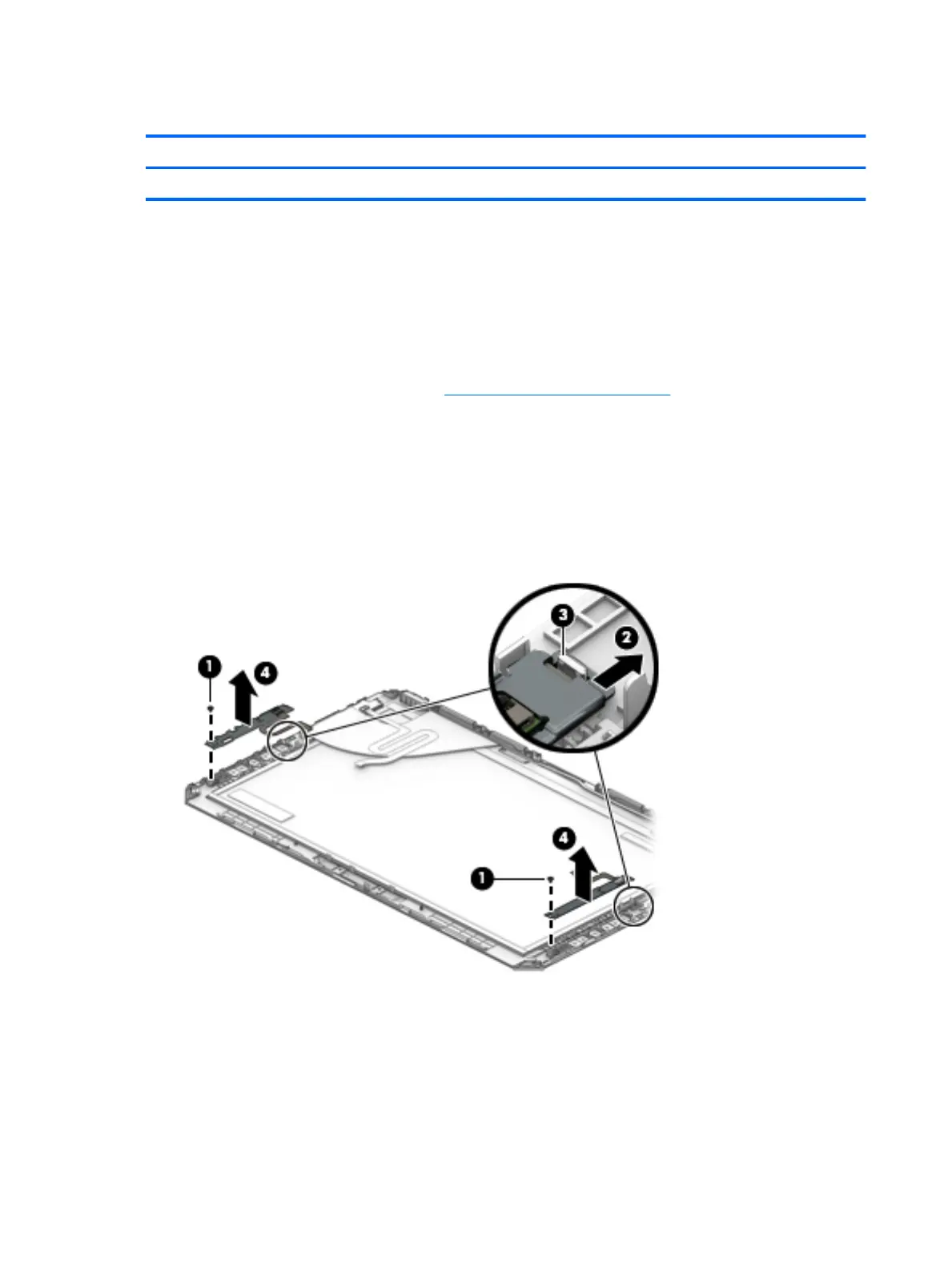

1. Remove the two Phillips M2.0×3.0 screws (1) that secure the QuickKey button boards to the display
panel assembly.
2. Release the QuickKey button boards (2) by sliding them toward the top edge of the tablet until the board
disengages from the retention clip (3) built into the display panel assembly.
3. Remove the QuickKey button boards (4).
Reverse this procedure to install the QuickKey button boards.
36 Chapter 5 Removal and replacement procedures
