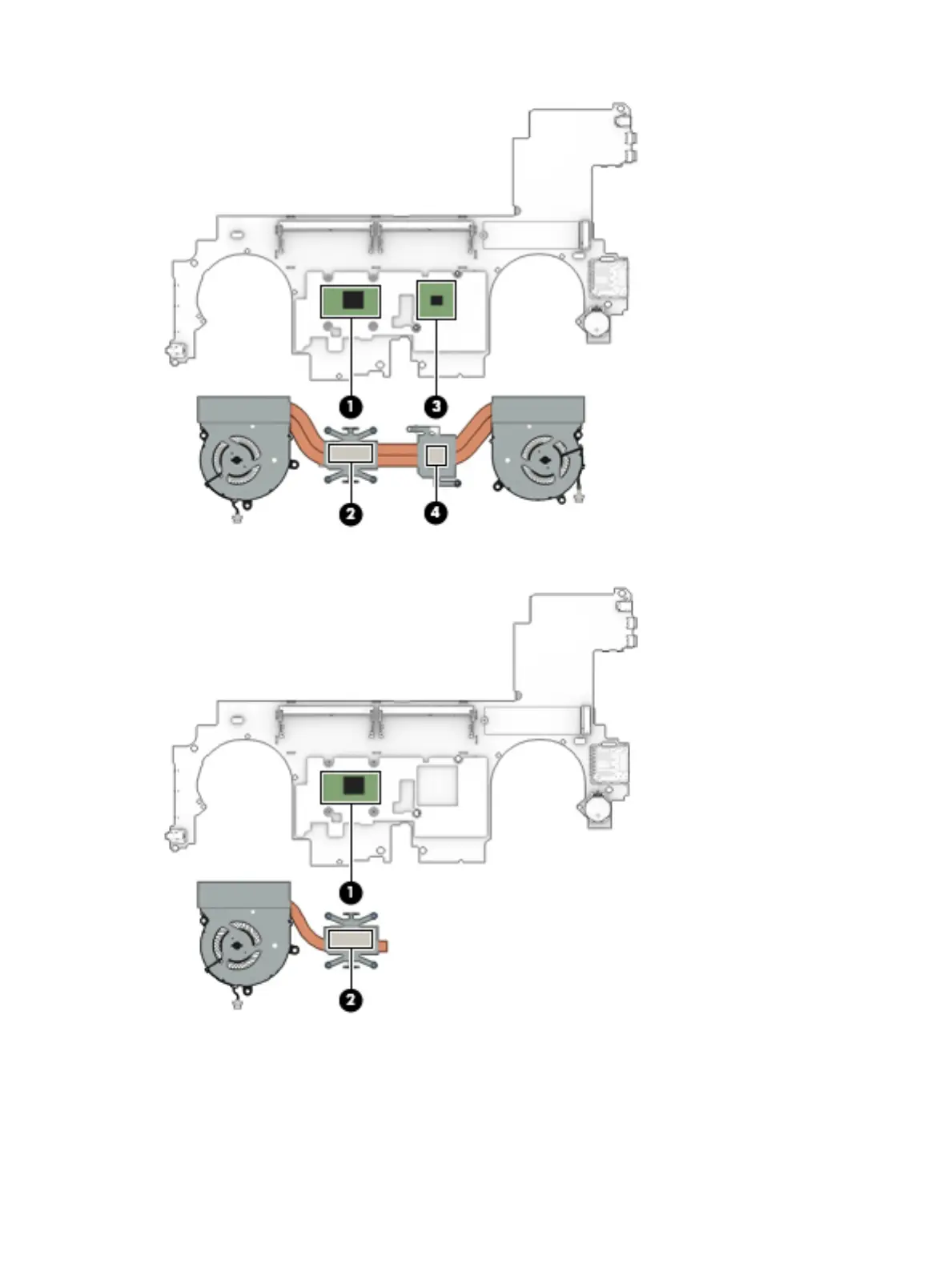

Tablet models with a graphics subsystem with UMA memory: Thermal paste is used on the processor (1) and

the heat sink section (2) that services it.

Reverse this procedure to install the fan/heat sink assembly.

Component replacement procedures 51
