387
# Import the client's public key from the public key file key.pub and name it switchkey.
[Switch] public-key peer switchkey import sshkey key.pub
# Create an SSH user named client002. Specify the authentication method as publickey for
the user, and assign the public key switchkey to the user.
[Switch] ssh user client002 service-type stelnet authentication-type publickey assign
publickey switchkey
# Create a local device management user named client002.
[Switch] local-user client002 class manage
# Authorize local user client002 to use the SSH service.
[Switch-luser-manage-client002] service-type ssh
# Assign the network-admin user role to local user client002.
[Switch-luser-manage-client002] authorization-attribute user-role network-admin
[Switch-luser-manage-client002] quit
3. Specify the private key file and establish a connection to the Stelnet server:
a. Launch PuTTY.exe on the Stelnet client to enter the interface shown in Figure 105.
b. In the Host N
ame (or IP address) field, enter the IP address of the Stelnet server
192.168.1.40.

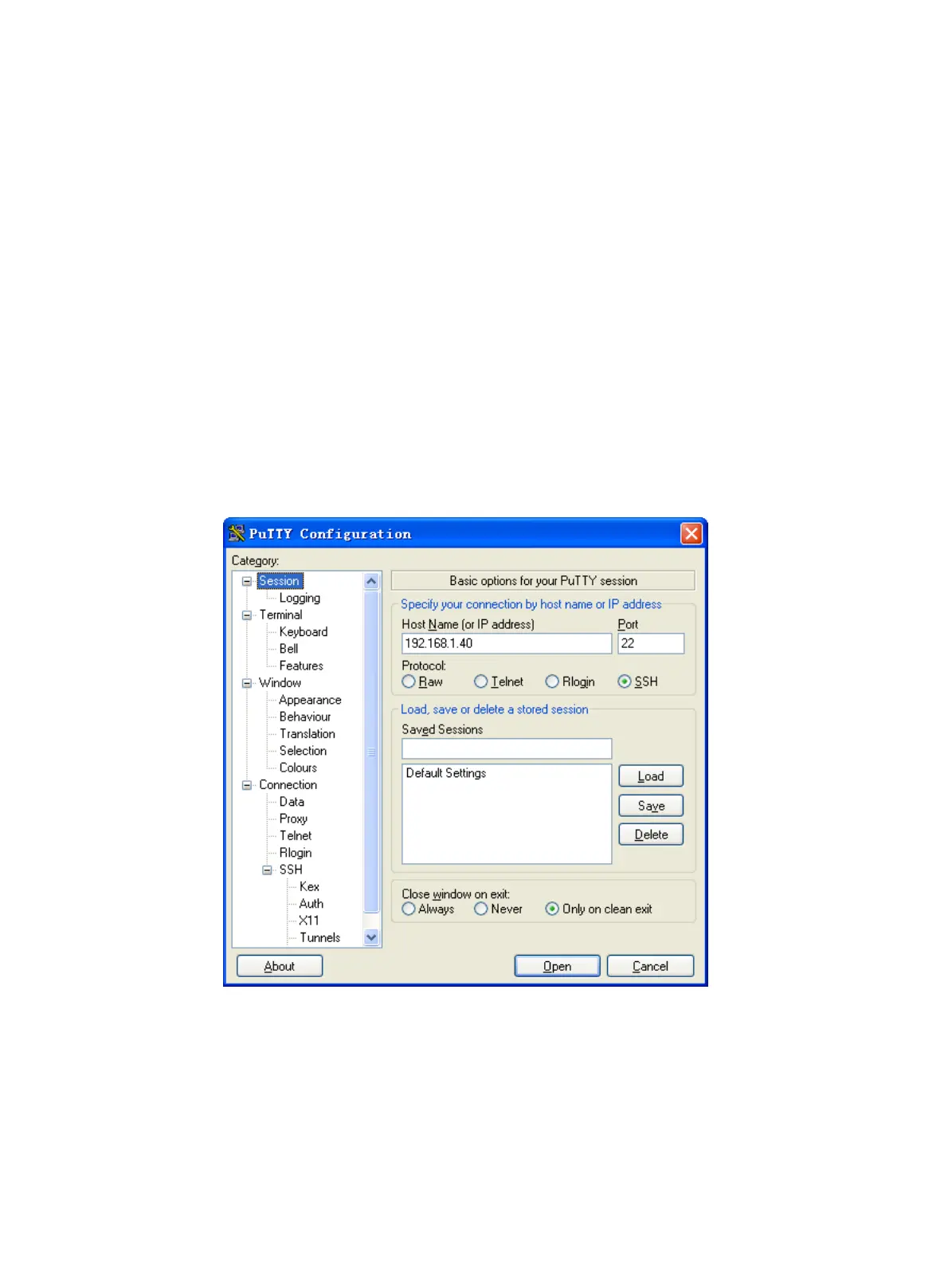

Figure 105 Specifying the host name (or IP address)
a. Select Connection > SSH from the navigation tree.
The window shown in Figure 106 ap
pears.
b. Specify the Preferred SSH protocol version as 2.
