Item Component Status Definition
O Drive removed from the
PCIe bus and can be ejected.
4 Power LED
Solid green Drive is powered on and
configured in system.
Do not remove the drive.
Flashing green Ejection request pending. Do
not remove the drive.
O Drive removed from the
PCIe bus and can be ejected.
5 Power button — Momentary press to request
drive removal from PCIe bus
and ejection. Drive removal
request can be denied by
operating system.
6 Do Not Remove button — Releases the release lever
for removal and insertion.
Upon NVMe SSD insertion, an LED initiation sequence will be visible - lighting each LED in the carrier in sequence from
left to right. The sequence will cycle until the drive is recognized by the system. When the SSD is recognized by the
system - the Do Not Remove LED will be solid white and the Power LED will be solid green.

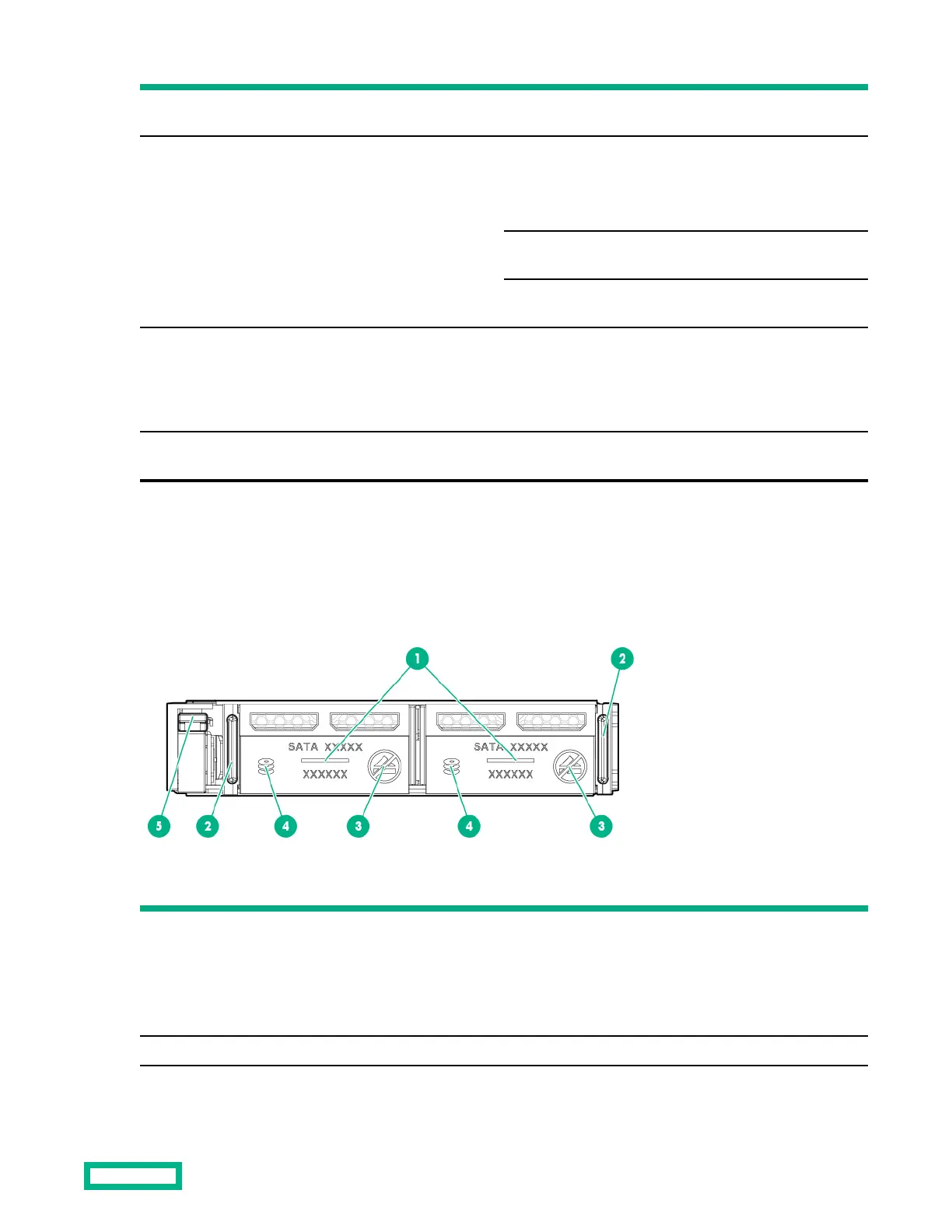

SFF flash adapter components and LED definitions
Item
Component Description
1 Locate • O—Normal
• Solid blue—The drive is being identified by a host application.
• Flashing blue—The drive firmware is being updated or requires an
update.
2 uFF drive ejection latch Removes the uFF drive when released.
Table Continued
Component identification 95
