Item Connector Description
1 Serial For trained personnel to connect a null modem serial cable and perform
advanced diagnostic procedures
2 USB
1
For connecting up to two USB 20 devices
3 Video For connecting a video monitor
1
The USB connectors on the SUV cable do not support devices that require greater than a 500mA power source.

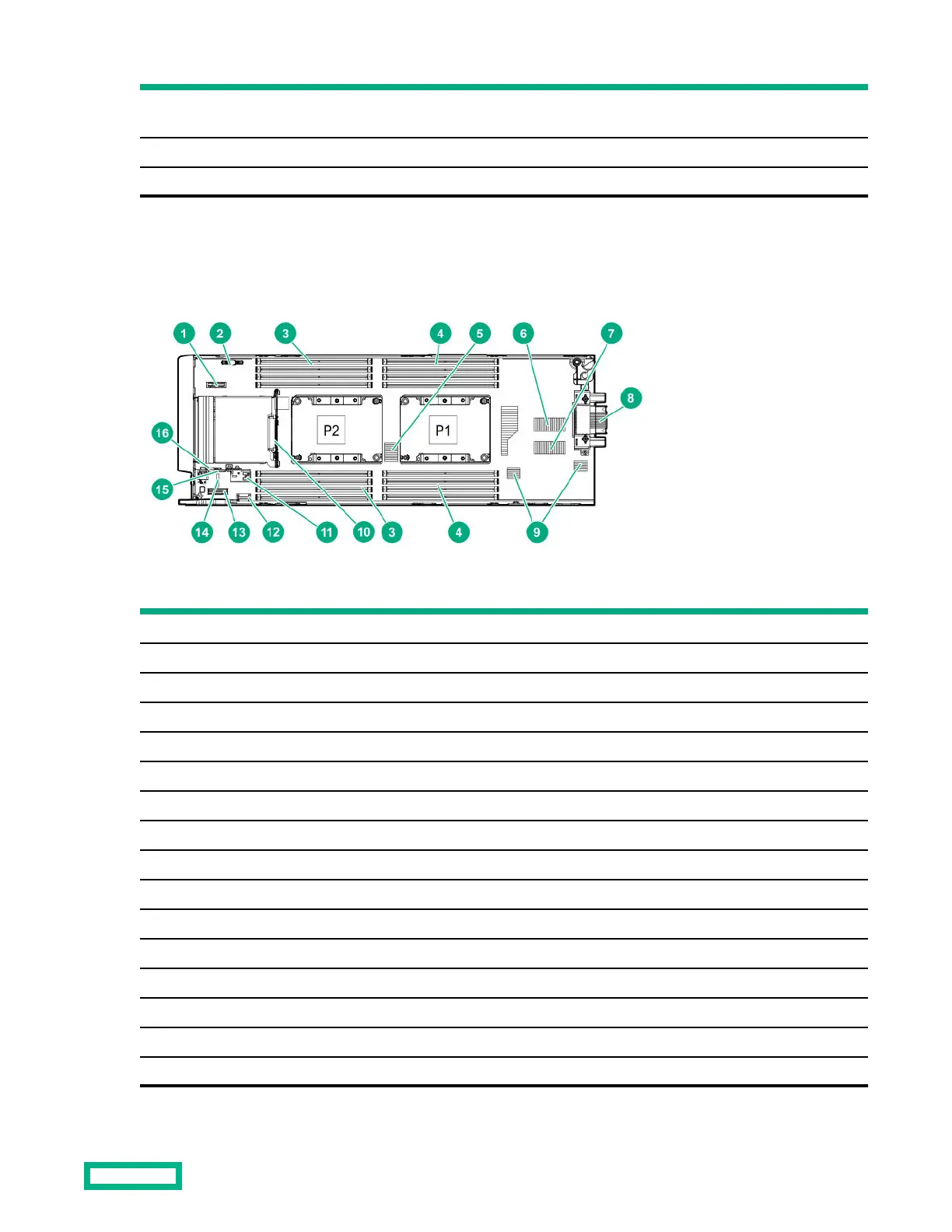

System board components
Item Description
1 System battery
2 M.2 enablement option connector
3 Processor 2 DIMM slots (8)
4 Processor 1 DIMM slots (8)
5 Storage controller or NVMe pass-through board connector
6 Mezzanine connector 1 (Type A mezzanine only)
7 Mezzanine connector 2 (Type A or Type B mezzanine)
8 Enclosure connector
9 FlexibleLOM connectors (2)
10 SAS/SATA or NVMe backplane
11 Internal USB 30 connector
12 Energy pack connector
13 Direct-connect SATA connector
14 System maintenance switch
15 microSD card slot
16 TPM connector
Component identification 97
