Chapter 5 Operation Instructions Shenzhen Hpmont Technology Co., Ltd.
- 42 - HD3N Series User Manual V1.1
Parameter setting
In stop / run / fault status, press button ( ) to set parameter. (If user password has been set,
refer to F00.00 and section 5.3).
The keypad uses four-level menu: mode setting (first-level)
function parameter group setting
(second-level)
function parameter setting (third-level)
parameter setting (fourth-level).

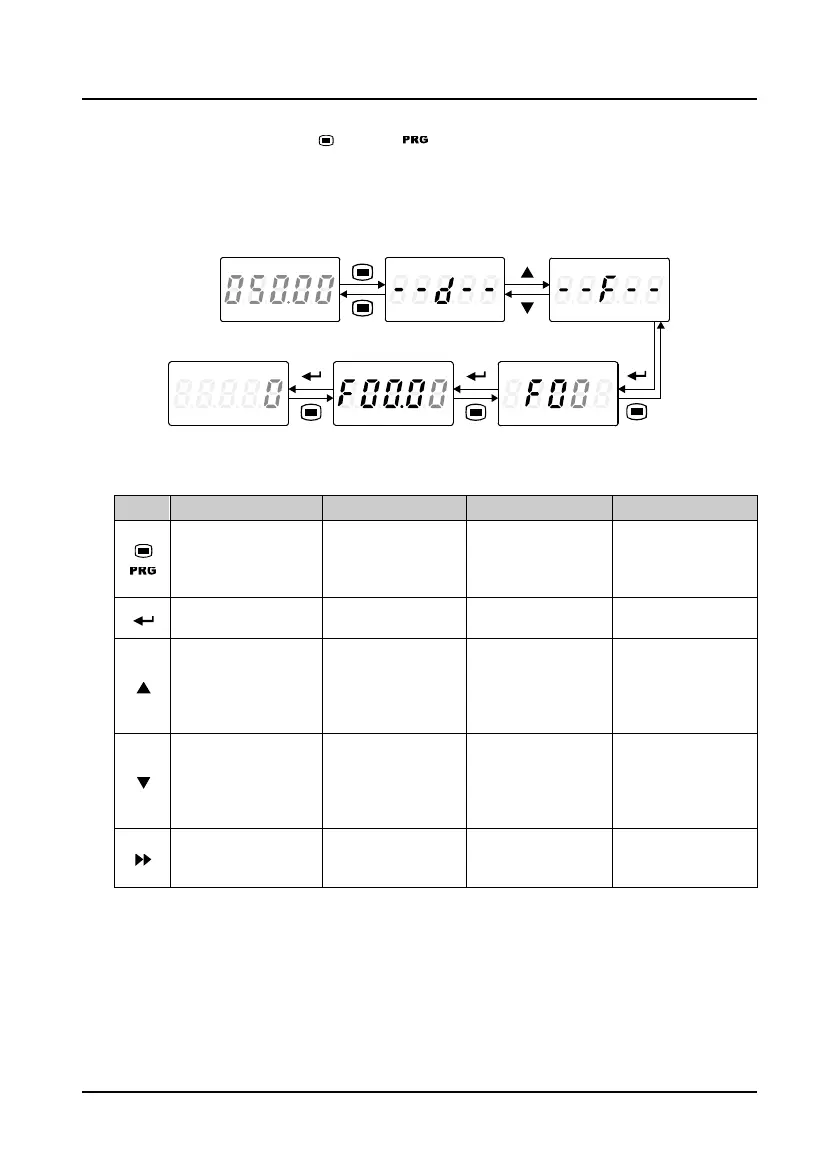

Figure 5-5 is an example in LCD display and the description of buttons is shown in Table 5-1.
Figure 5-5 Four-level operation process
Table 5-1 Button description
Button First-level menu Second-level menu Third-level menu Fourth-level menu
Fault, return to fault
display; Fault cleared,
return to run or stop
status display
Return to first-level
menu
Return to second-level
menu
Do not save the present
value and return to
third-level
Enter second-level menu Enter third-level menu Enter fourth-level menu
Save the present value
and return to third-level
Select function group
Cycle according to d-F-R-
y
Modify No. function.
Increase by 1 when
press this key one time
Modify the internal No.
of function group.
Increase by 1 according
to the present modified
bit
Modify function value.
Increase by 1 according
to the present modified
bit
Select function group
Cycle according to y-R-F-
d
Modify No. function.
Decrease by 1 when
press this key one time
Modify the internal No.
of function group.
Decrease by 1 according
to the present modified
bit
Modify function value.
Decrease by 1 according
to the present modified
bit
Invalid Invalid Switch units and tens
Switch units , ten
thousands, thousands,
hundreds, tens
When setting fourth-level menu, if the parameter does not flash, it indicates that this parameter can’t
be modified. The possible reasons are as follows:
The parameter can’t be modified, such as the actual detected parameters or recorded parameters
etc.
Only when HD3N stops can the function parameter be modified.
Only input the correct password can edit the function parameter.
Stop status First-level menu First-level menu
Third-level menu Second-level menuFourth-levelmenu
FWD
H
z
A V
RPM
LO/R E
%
LOCKREV
ALM
FWD
Hz A V
RPM
LO/R E
%
LOCKREV
ALM
FWD
Hz A V
RPM
LO/R E
%
LOCKREV
ALM
FWD
Hz A V
RPM
LO/R E
%
LOCKREV
ALM
FWD
Hz A V
RPM
LO/R E
%
LOCKREV
ALM
FWD
Hz A V
RPM
LO/R E
%
LOCKREV
ALM
FWD
Hz A V
RPM
LO/R E
%
LOCKREV
ALM
