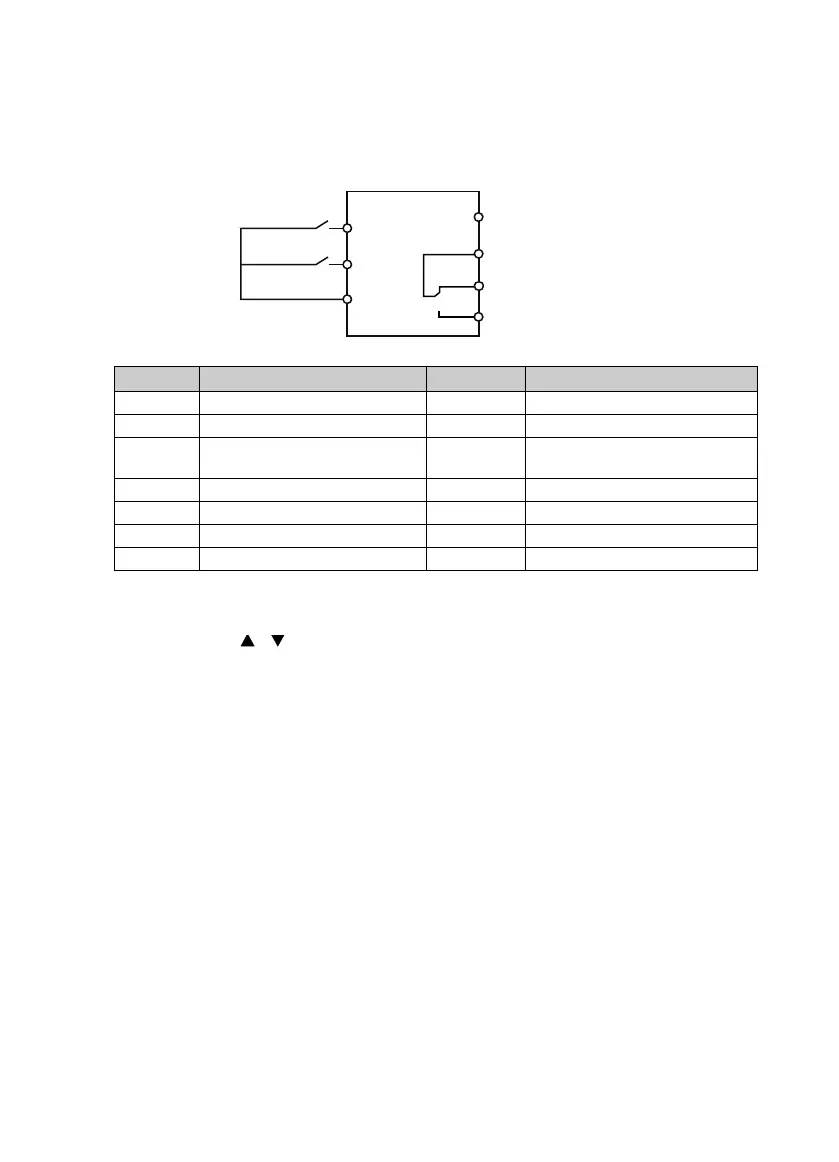

3. To use terminal to start/stop, and use keypad to set running frequency
1. DI1 is forward signal input, DI2 is reverse signal input. Below is the connection.
2. Power on HD3N. Set function codes according to connection.
Ref. code Function Setting Description
F00.10 Select frequency setting channel 0 (default) Digital setting by keypad
F00.11 Select command setting channel 1 Set by terminal
F00.13 Running frequency digital setting -
Running frequency, set according to
actual
F03.01 Acc. time 1 - Acc. time, set according to actual
F03.02 Dec. time 1 - Dec. time, set according to actual
F15.00 DI1 function selection 2 (default) Forward (terminal forward signal input)
F15.01 DI2 function selection 3 (default) Reverse (terminal reverse signal input)
3. Connect K1, motor will forward run. Disconnect it, motor stops running. Connect K2, motor Reverse
run. Disconnect K2, motor stops running. Disconnect K1 and K2, motor stops running.
Set F00.13 or press / on keypad to increase / decrease setting frequency.
DI1
COM
K1
K2
DI2
DO1
R1C
R1B
R1A
Forward
Output indicating
signal at running
Fault indicating
Reverse
To Next Page
