4. To use terminal to start/stop and set analogue running frequency

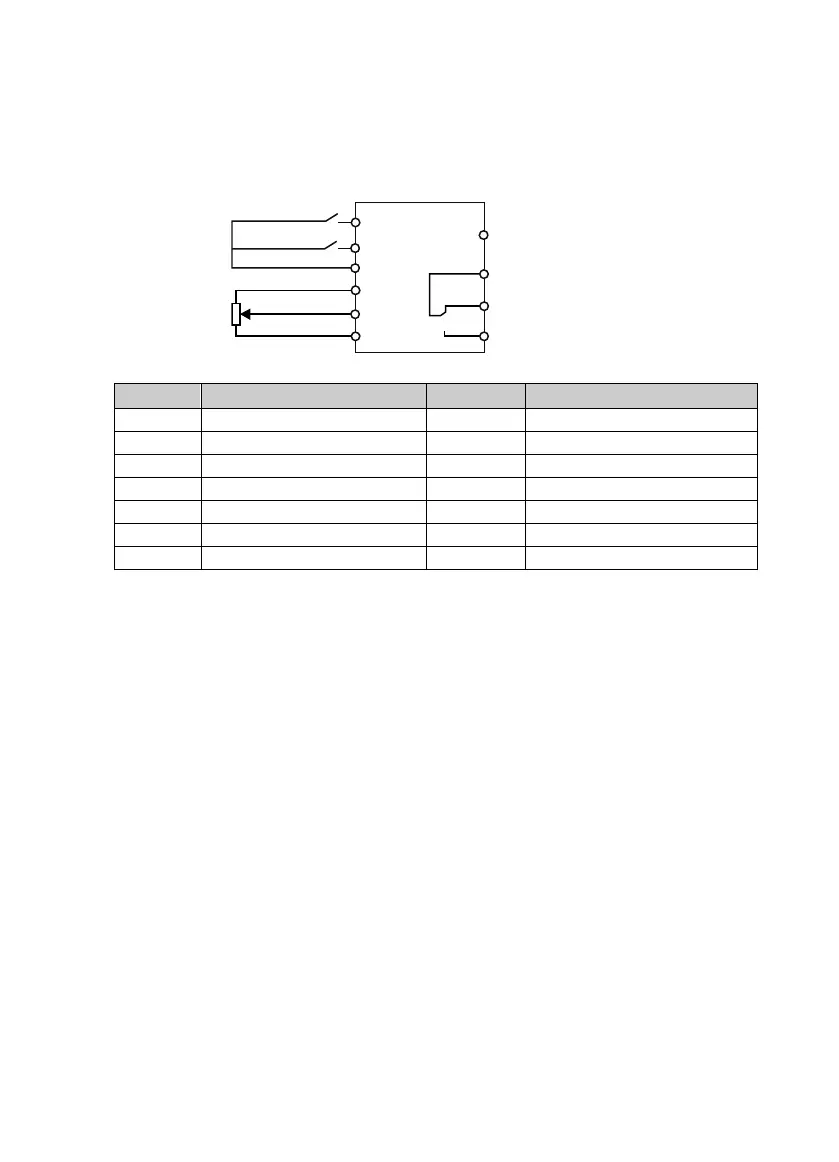

1. DI1 is forward signal input, DI2 is reverse signal input. Below is the connection.
2. Power on, and set function code according to connection.
Ref. code Function Setting Meaning
F00.10 Select frequency setting channel 3 Set by analogue
F00.11 Select command setting channel 1 Set by terminal
F03.01 Acc. time 1 - Acc. time, adjust according to actual
F03.02 Dec. time 1 - Dec. time, adjust according to actual
F15.00 DI1 function selection 2 (default) Forward (terminal forward signal input)
F15.01 DI2 function selecrtion 3 (default) Reverse (terminal reverse signal input)
F16.01 Analogue input AI1 function selection 2 (default) Frequency setting channel (set by AI1)
3. Adjust AI1 to set running frequency.
4. Connect K1, motor forward run; disconnect K1, motor stops running. Connect K2, motor reverse run;
disconnect K2, motor stops running. Connect or disconnect both K1 and K2, motor stops running.
DI1
COM
DI2
AI1
+10
Fault indicating
Output indicating
signal at running
K1
K2
DO1
R1C
R1B
R1A
GND
Forward
Reverse
Analogue input
To Next Page
