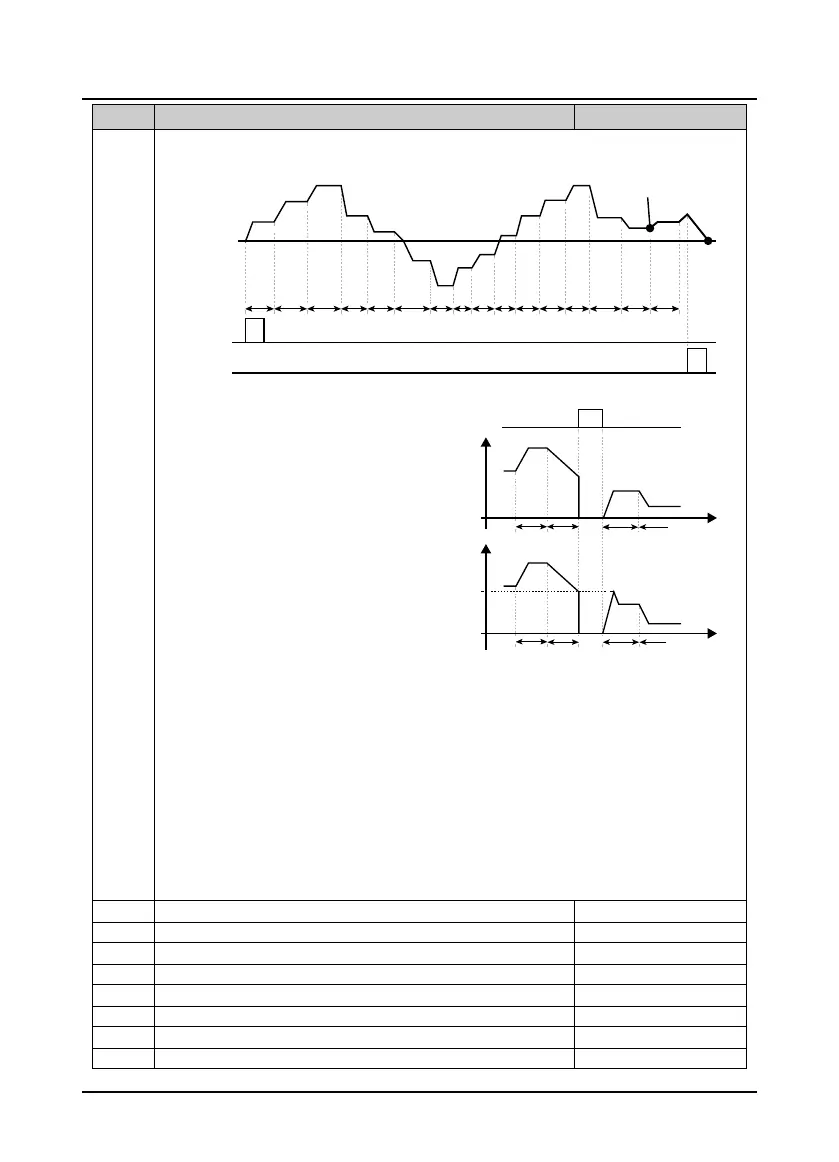

Chapter 6 Function Introduction Shenzhen Hpmont Technology Co., Ltd.
- 64 - HD3N Series User Manual V1.1
Ref. code Function Description Setting Range [Default]
2: Continous loop. HD3N enters the next loop after one loop is finished, and not stop until receiving stop
command.
Ten: restart mode after stop during PLC
0: Start from the first frequency.
Start from the first frequency after stop
during running (stop command, fault or
power failure).
1: Start from the frequency when HD3N
stops.
If HD3N stops during running (stop
command or fault), it will record the
current running time.
When restart, HD3N enters this phase, and
runs at the frequency in the remain time.
(at the right)
2: Runs at the moment when signal loss.
If HD3N stops during running (stop command or fault), it will record the current running time and
running frequency.
When restart, HD3N will resume running frequency when it stopped and then enter the next phase. (at
the right).
Note: Compared with mode 1, mode 2 memorize the running frequency at stop, and restarts from this frequency.
Hundred: PLC state saving selection at power failure
0: Do not save. Do not save PLC running state. HD3N starts from the first phase after power on.
1: Save. Save PLC running state, including phase, running frequency and the running time. HD3N runs
according to tens of F06.16.
Thousand: PLC phase time unit
0: Second (s).
1: Minute (m).
F06.17
PLC phase 1 setting
000 - 421 [420]
F06.19 PLC phase 2 setting 000 - 421 [420]
F06.21
PLC phase 3 setting
000 - 421 [420]
F06.23 PLC phase 4 setting 000 - 421 [420]
F06.25
PLC phase 5 setting
000 - 421 [420]
F06.27 PLC phase 6 setting 000 - 421 [420]
F06.29
PLC phase 7 setting
000 - 421 [420]
F06.31 PLC phase 8 setting 000 - 421 [420]
f15
f14
f13
f12
f11
f10
f2
f1
f4
f3
f6
f5
f8
f7
f9
T15T10T1 T2 T3 T4 T5 T6 T7 T8 T9 T11 T12 T13 T14
Running
command
Stop
f1
T1
Stop
command
Start next circulatio
automatically
Interrupt signal
f3
f4
f5
T3
f2
T4
1
T4
2
T5
Time
0
f3
f4
f5
T3
f2
T4
1
T4
2
T5
Time
0
Output
frequency
Output
frequency
Interrupt
frequency
T4
1
= Running time
T4
2
= Remained time
