Chapter 6 Function Introduction Shenzhen Hpmont Technology Co., Ltd.
- 78 - HD3N Series User Manual V1.1
Ref. code Function Description Setting Range [Default]
85: Simple PLC pause command. To pause PLC during running.
• When valid, system keeps running at present phase and does not count running time. When invalid,
system counts time.
86: Activate terminal DC brake input.
• HD3N starts DC brake if this terminal is valid during running. If no stop command, HD3N restarts after
this terminal is invalid.
• HD3N starts DC brake if this terminal is valid during dec stop process, while stops after invalid.
• Invalid in stop state.
87: Frequency setting channel = 4. Refer to No. 5 and 7.
88: DWELL end enable in stop.
Defines setting frequency changing rate by UP/DN.
F15.13 Interval between terminal detection 0 - 2 [0]
0: 2ms.
1: 4ms.
2: 8ms.
F15.14 Terminal detection filter times 0 - 10000 [2]
Delay or confirm digital input signal in case of mal-function.
Terminal input logic setting
Defines that each bit (binary) represents different physical sources.
• 0: Positive logic. Connected to corresponding common port: this logic is enabled. Otherwise disabled.
• 1: Negative logic. Connected to corresponding common port: this logic is disabled. Otherwise enabled.
Ten s Units
Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
- - DI6 DI5 DI4 DI3 DI2 DI1
F15.16 FWD / REV running mode 0 - 3 [0]
• FWD: DI terminal is defined as No. 2 function.
• REV: DI terminal is defined as No. 3 function.
Define four modes under external terminal control.

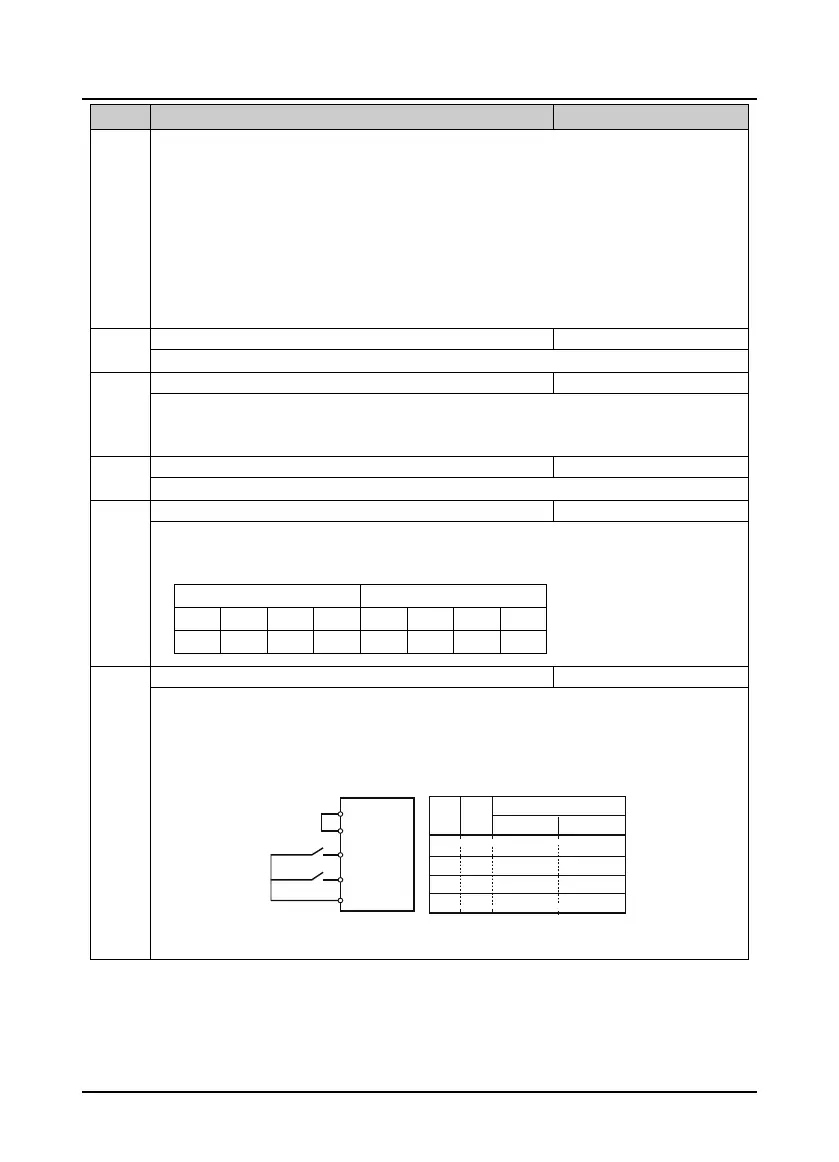

0: Two-wire running mode 1.
1: Two-wire running mode 2.
2: Three-wire running mode 1.
• If the shift between SB2 and SB3 is disabled, HD3N will keep the control mode B.
Stop
Reverse
Forward
Stop
Stop
Reverse
Forward
Stop
00
01
11
10
Run Command
K2 K1
K1
FWD
REV
K2
P24
SEL
DIx
DIy
COM
F15.16=1F15.16=0
