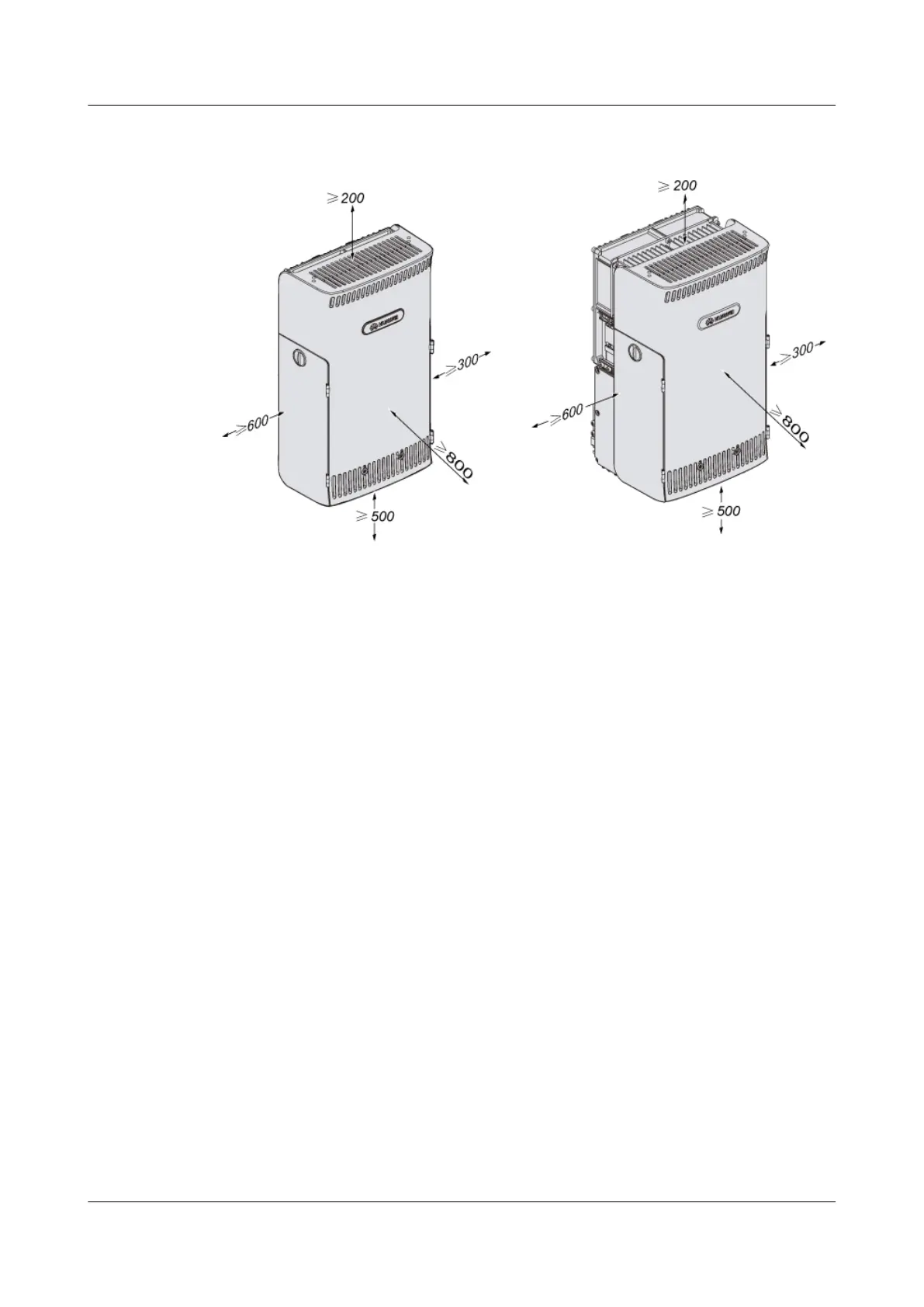

Figure 3-7 Recommended space requirements of one RRU with and without the SRXU (unit:
mm)
The recommended space around the equipment is as follows:
l At least 500 mm under the equipment for cabling. It is recommended that the space is 1,200
mm between the bottom and the ground for easy maintenance.
l At least 800 mm in front of the equipment for maintenance.
l At least 200 mm above the equipment for maintenance.
l At least 600 mm on the left of the equipment for maintenance.
l At least 300 mm on the right of the equipment for maintenance.
l Regardless of whether the SRXU is fixed to the RRU, the space requirements are the same.
Figure 3-8 shows the minimal space requirements of one RRU with and without the SRXU.
3 Installing RRU and SRXU Hardware
RRU
User Guide
3-8 Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd
Issue 01 (2008-04-18)
