Installation Manual – Antenna & Feeder System Installation
BTS3802C & RRU
Chapter 3
Installing GPS Antenna & Feeder System
3-2
Start
Locating GPS antenna
Install GPS antenna stand
Install GPS antenna
Install lightning arrester and
feeder
Bind jumpers

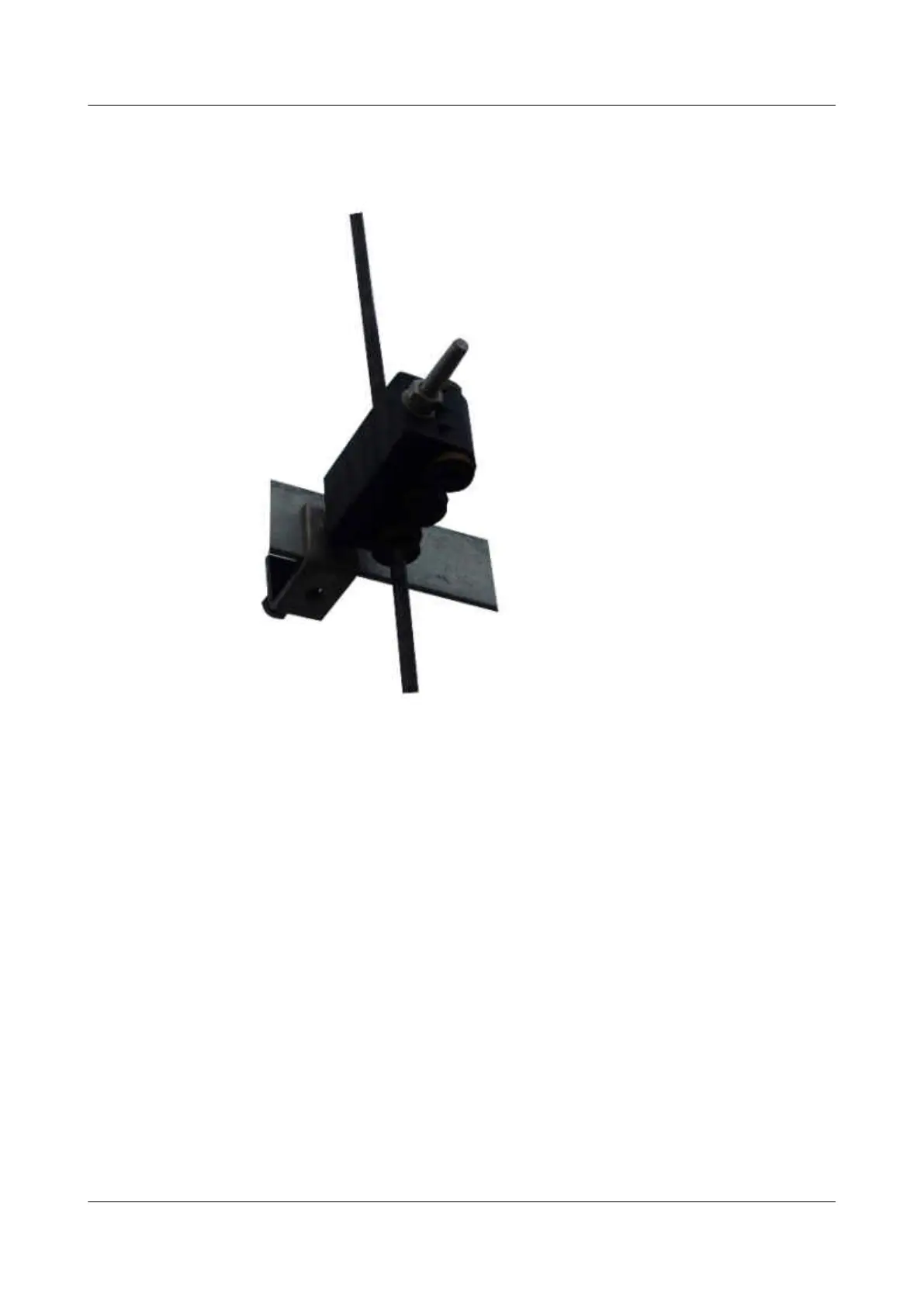

Route feeders
Ground feeders
Feeder test
End
Figure 3-1 Installation procedure of the GPS antenna & feeder system
Note:
z The installation of GPS antenna and feeder system can be performed simultaneously with that of RF
antenna and feeder system.
z The specific installation process can be adjusted according to the actual configuration and
environment.
3.3 Locating GPS Antenna
The requirements of the locating of the GPS antenna show below:
z The antenna should be installed in a wide field. There should be no large
building in the vicinity. It should be as far as possible from the small auxiliary
structures at the roof. The larger area the GPS antenna occupies, the better
