Installation Manual – Antenna & Feeder System Installation

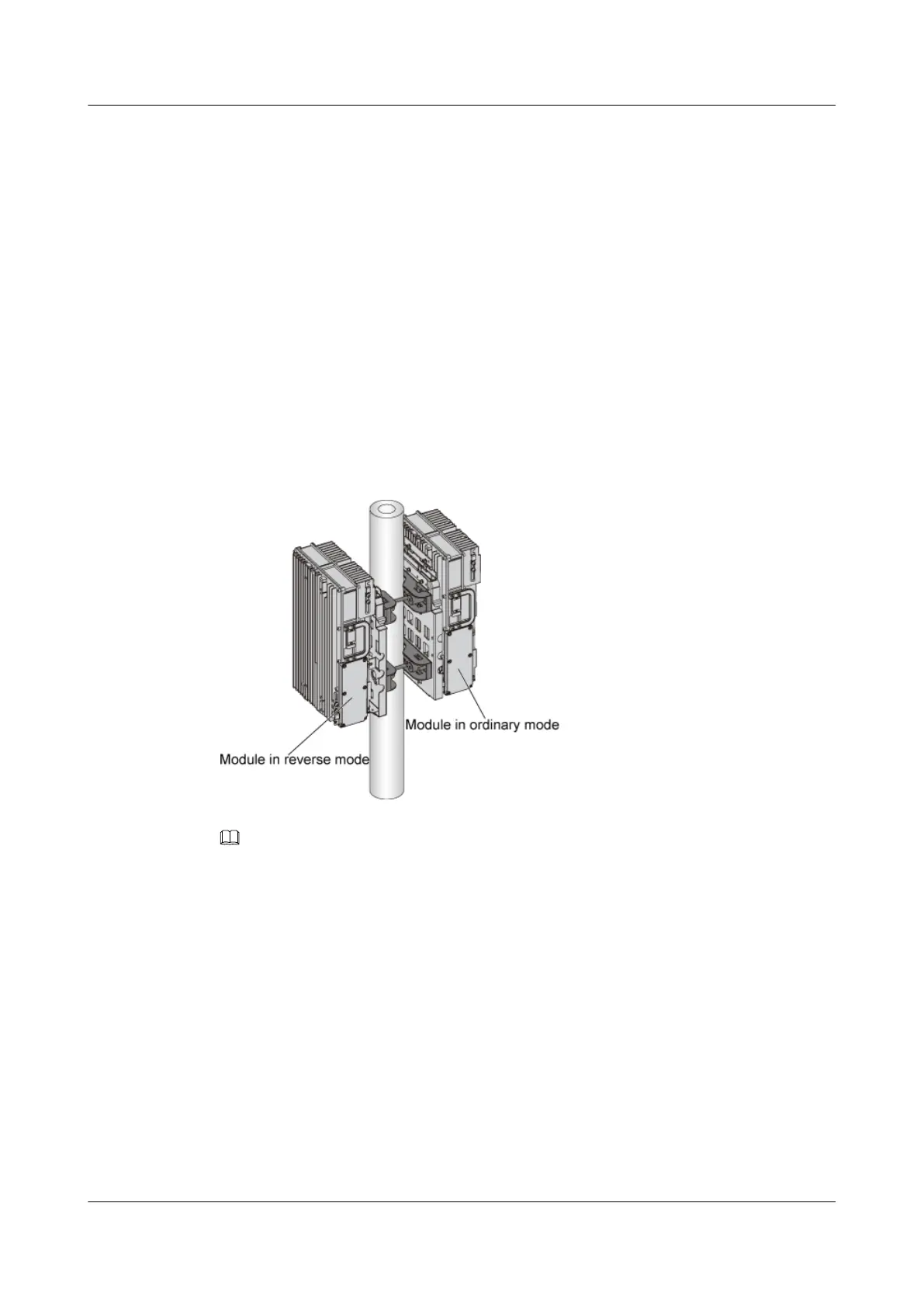

BTS3802C & RRU
Appendix B
Engineering Label of Antenna & Feeder System
B-1
Appendix B Engineering Label of Antenna &
Feeder System
B.1 About This Appendix
This appendix describes the engineering labels for antenna and feeder system,
including:
z Introduction to Engineering Labels
z Engineer Labels for Feeder
z Engineering Labels for Jumper
B.2 Introduction to Engineering Labels
There are three types of engineering labels for antenna & feeder system,
corresponding to outdoor feeder, indoor feeder and jumper. The label for outdoor
feeder is metallic plate, and the one for indoor and jumper is paper label.
The features of paper label are the same as those of cable engineering label.
The features of outdoor feeder are:
z Thickness: 1mm;
z Material: aluminum;
z Background of the front side is yellow spray painting, and the label contents on it
are black;
z Both sides are covered with protective plastic membrane.
B.3 Engineer Labels for Feeder
B.3.1 Label of Outdoor Feeder
I. Contents
The contents of the feeder labels have been printed on before delivery. The contents
of feeder labels are listed in Table B-1.
