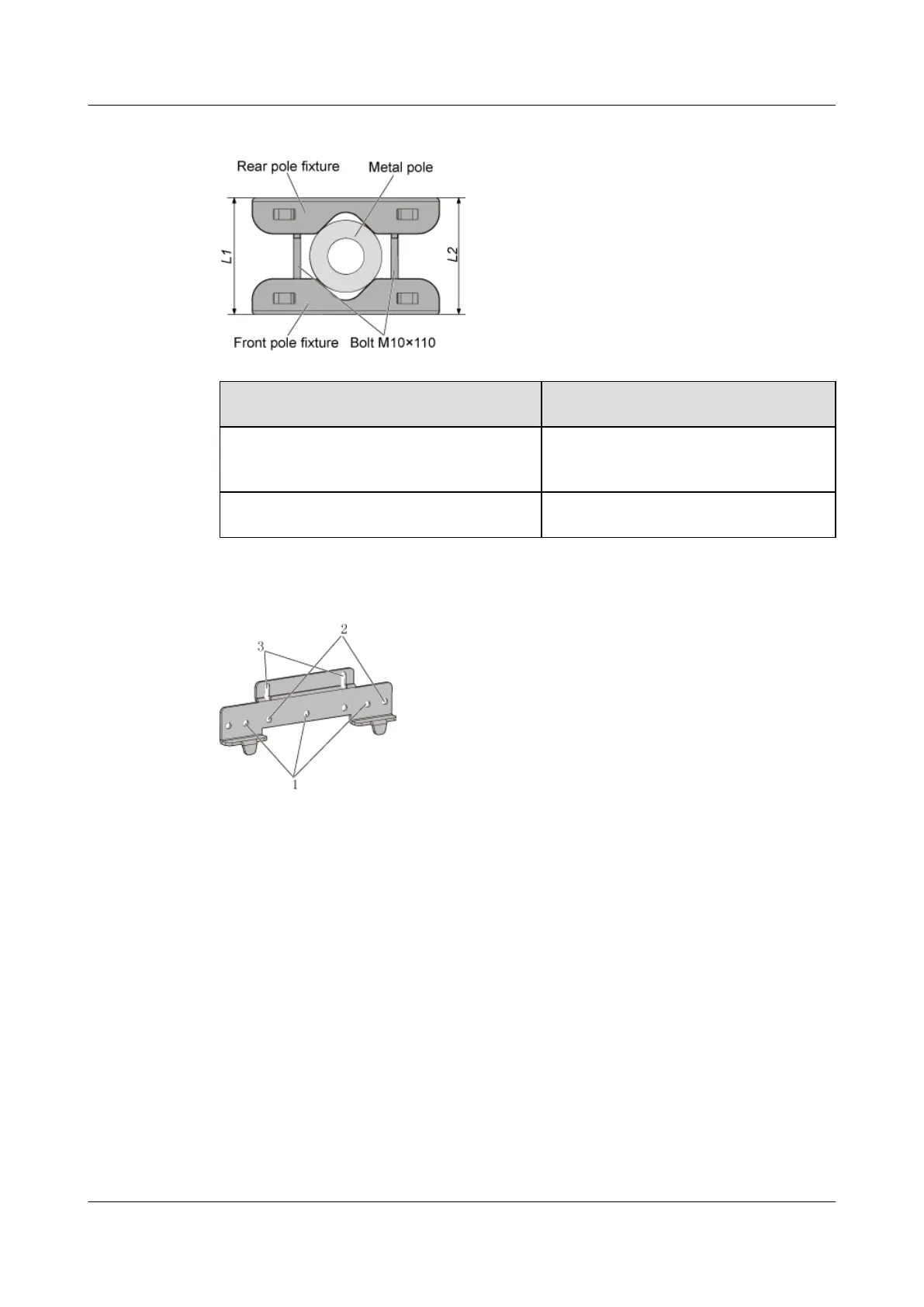

Figure 3-32 Measuring L1 and L2
If... Then...
The pole fixtures are neither horizontal nor
parallel,
Go to Step 2 to adjust the fixture assembly.
The pole fixtures are horizontal and parallel, Go to Step 4.
Step 4 Use the holes numbered 1 in Figure 3-33.
Figure 3-33 Holes in the multi-purpose attachment plate
Step 5 Use three screws M6 x 20 to secure the multi-purpose attachment plate to the mounting plate,
as shown in Figure 3-34.
