3.1.6 Labels for DBS3836 Cables
This presents the types, appearance, and installation of the labels for DBS3836 cables. The labels
are attached to the power cable of the BBU3836, power cable of the RRU, E1 cable, CPRI optical
cable, and alarm cable.
Labels for the Cables
l Label for the BBU power cable
Quantity of delivered labels: quantity of BBU power cables x 2
Installation positions of the labels: 3 cm away from each end of the power cable
Same labels are attached to both ends of the power cable. X ranges from 0 to 3, indicating
BBU0 through BBU3, as shown in Figure 3-22.

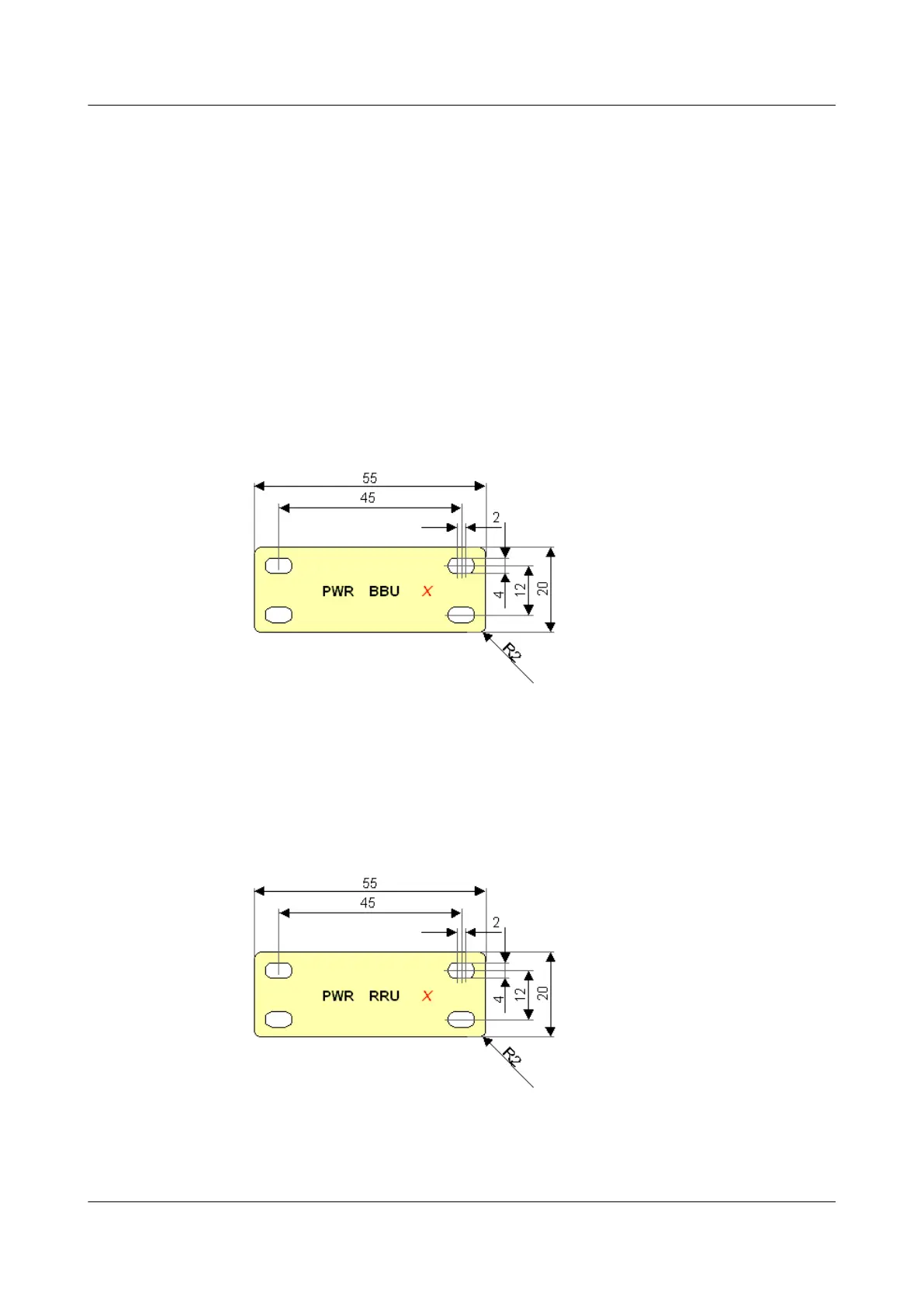

Figure 3-22 Label for the BBU power cable (unit: mm)
l Label for the RRU power cable
Quantity of delivered labels: quantity of RRU power cables x 2
Installation positions of the labels: 3 cm away from each end of the power cable
Same labels are attached to both ends of the power cable. X ranges from 0 to 5, indicating
RRU0 through RRU5, as shown in Figure 3-23.
Figure 3-23 Label for the RRU power cable (unit: mm)
l Label for the E1 cable
Quantity of delivered labels: quantity of E1 cables x 2
Installation positions of the labels: 3 cm away from each end of the E1 cable
