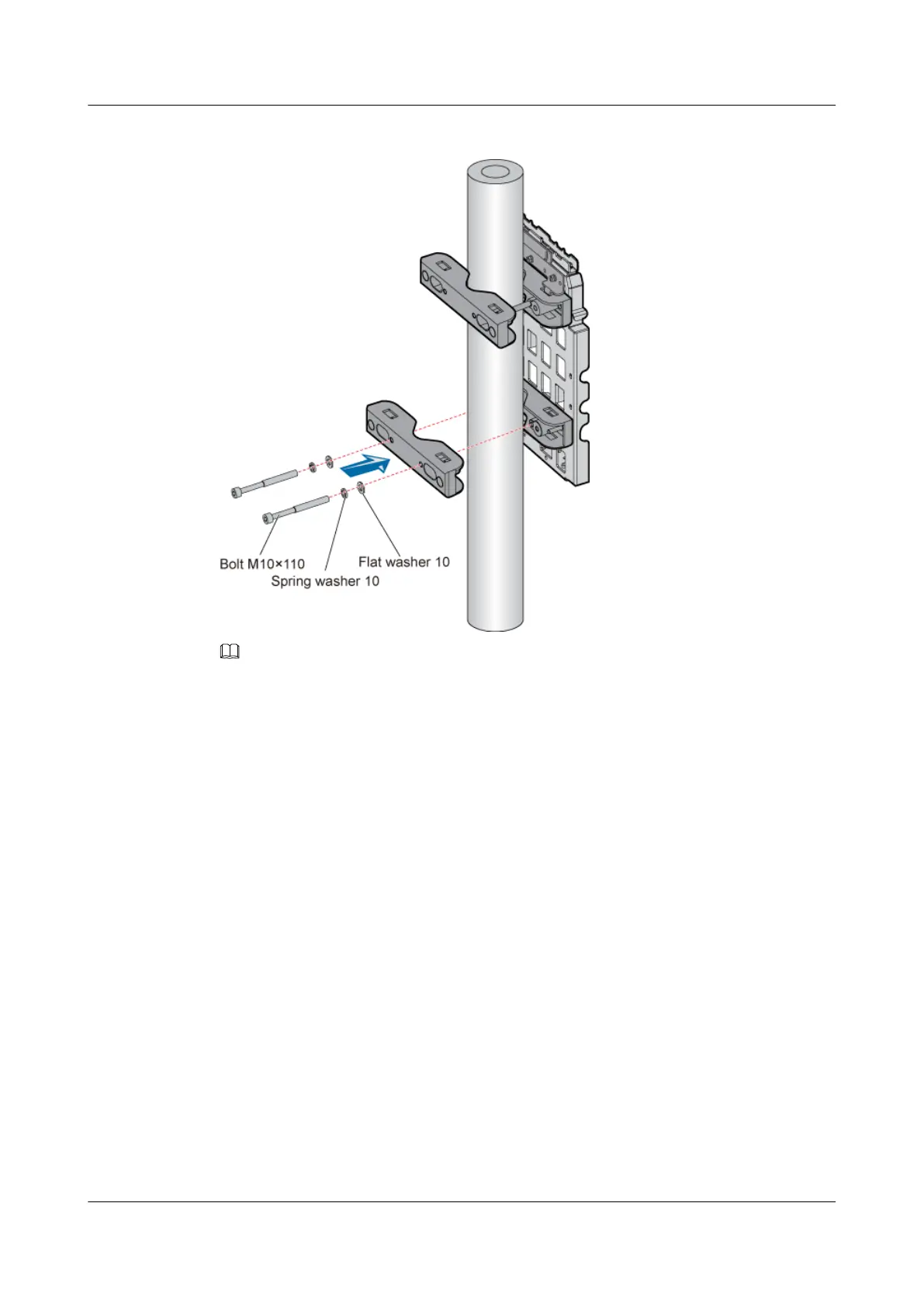

Figure 3-37 Mounting the lower fixture assembly
NOTE
Two pairs of holes can be used for mounting the fixture assembly, as shown in Figure 3-31. If the 60-95
mm bolts are used, use pair 1. If the 90-114 mm bolts are used, use pair 2.
----End
Installing the Mounting Plate of the Single RRU on the Wall
This describes how to install the mounting plate on the wall.
Procedure
Step 1 Determine the position of the mounting plate.
1. Determine the position of the mounting plate by referring to the engineering design and
3.1.2 Space Requirements of the RRU and SRXU. Figure 3-38 shows the installed
expansion bolt assemblies and the RRU.
RRU
User Guide 3 Installing RRU and SRXU Hardware
Issue 01 (2008-04-18) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd
3-35
