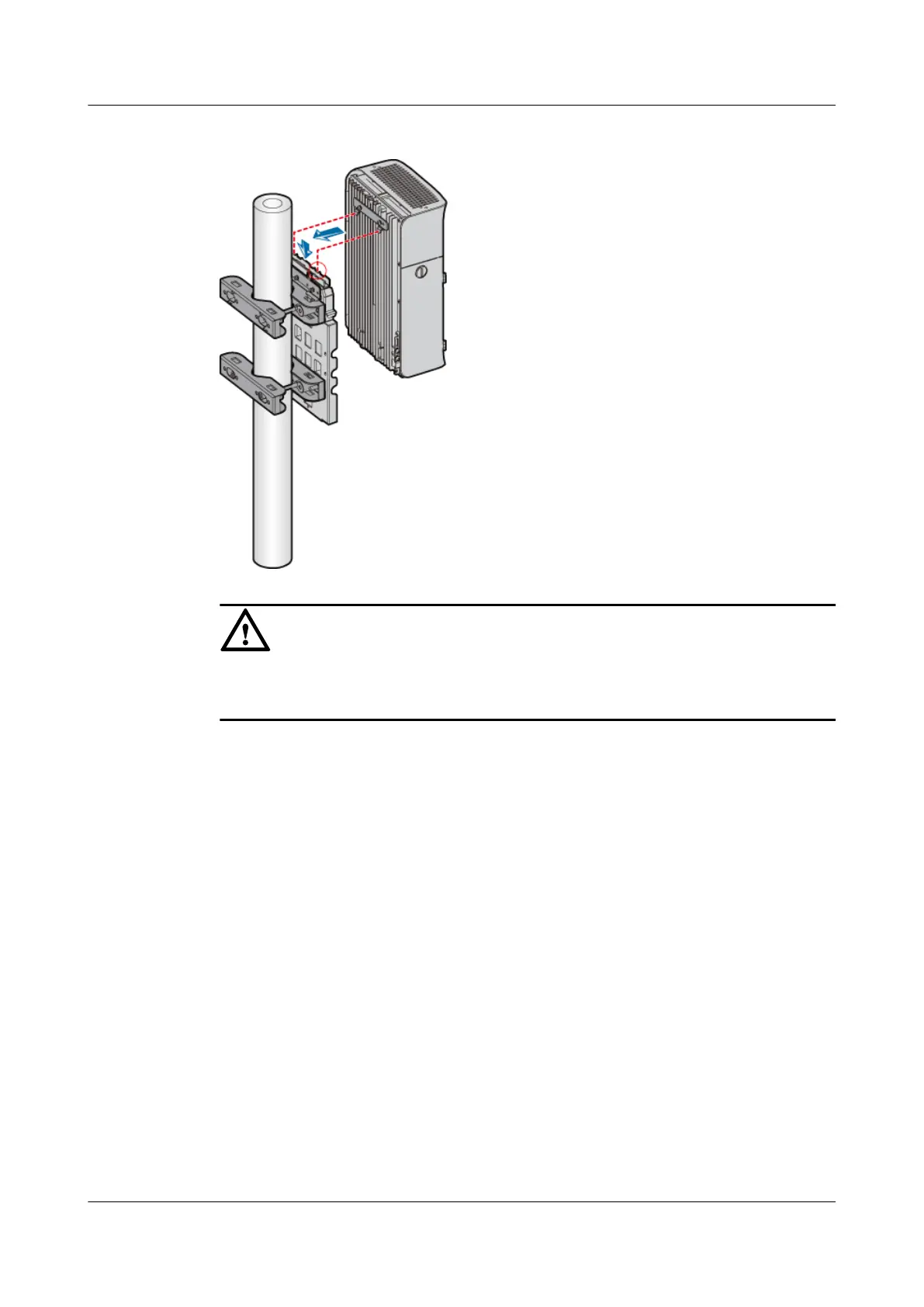

Figure 3-45
Installing the module
CAUTION
The
tabs
on
the
attachment
plate
must
be
fitted
into
the
middle
pair
of
anchor
slots
in
the
mounting
plate.
Step 3
Lead
two
screws
M6
x
20
through
the
holes
in
the
bottom
of
the
module.
Then,
secure
the
module
to the mounting plate, as shown in
Figure 3-46
.
RRU
User Guide
3 Installing RRU and SRXU Hardware
Issue 01 (2008-04-18)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd
3-41
98
100
