Installation Manual – Antenna & Feeder System Installation

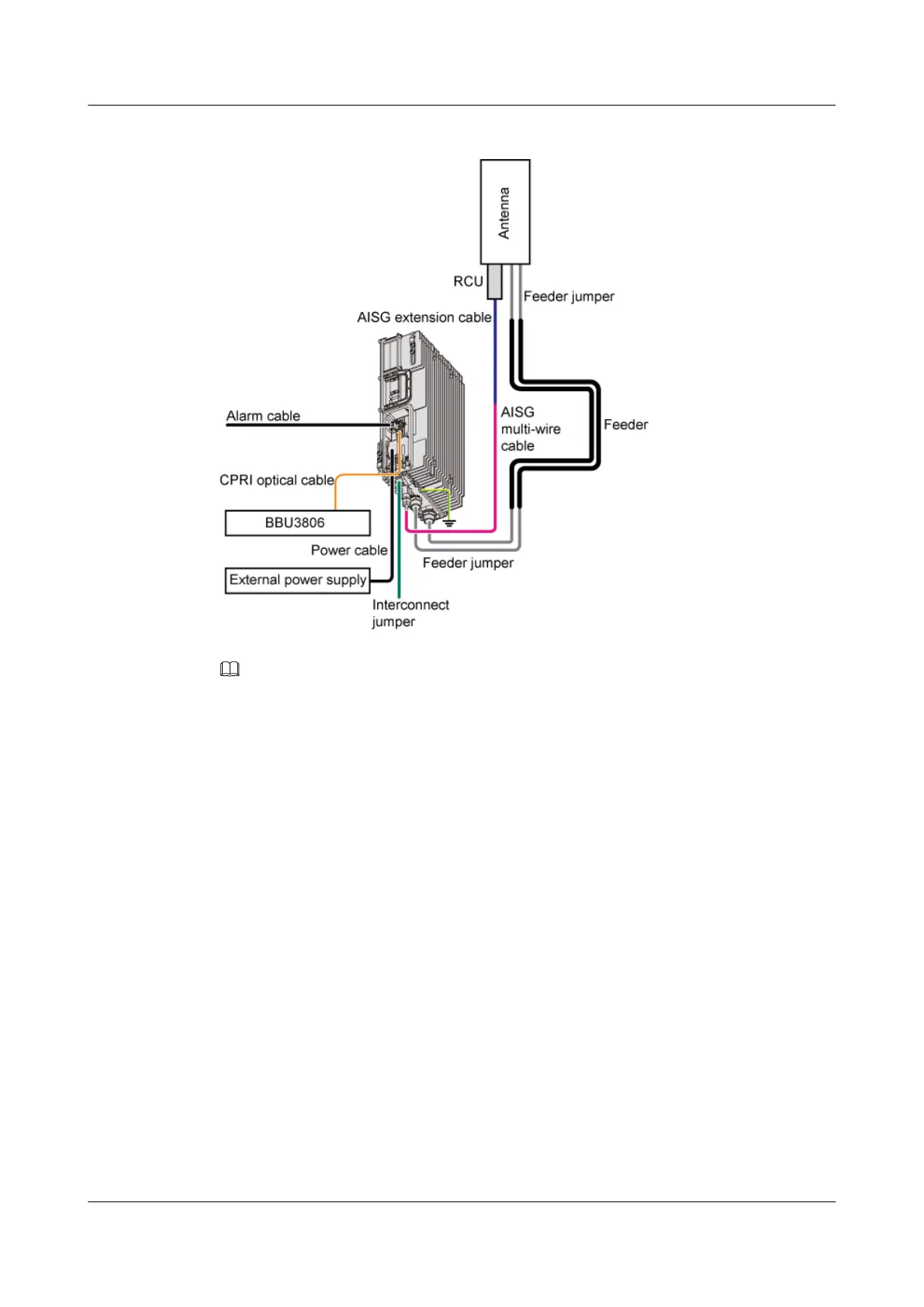

BTS3802C & RRU
Chapter 3
Installing GPS Antenna & Feeder System
3-4
z There should be no obstacle in the vicinity of the antenna lest that it impact on
the receiving effect.
3.4.2 Installation Procedures
The antenna stand on the tower is shown in Figure 3-3.
(1) Movable clamping strap (2) Fixed clamping strap (3) Stand (4) Bolt M8
Figure 3-3 Structure of the antenna stand on the tower
The installation procedure is as follows:
1) Unscrew the bolts on the fixed clamps and take down the adjustable clamps.
2) Set the antenna support in the right position on the tower so that the tower angle
iron is between the fixed clamp and the adjustable clamp.
3) Fix the support on the tower with fasteners including bolts, flat washers, spring
washers and nuts.
4) Insert the antenna rod into the support and put it through the bolt hole. Tighten
the bolts to fix the antenna support.
Figure 3-4 illustrates an installed antenna support on the tower.
