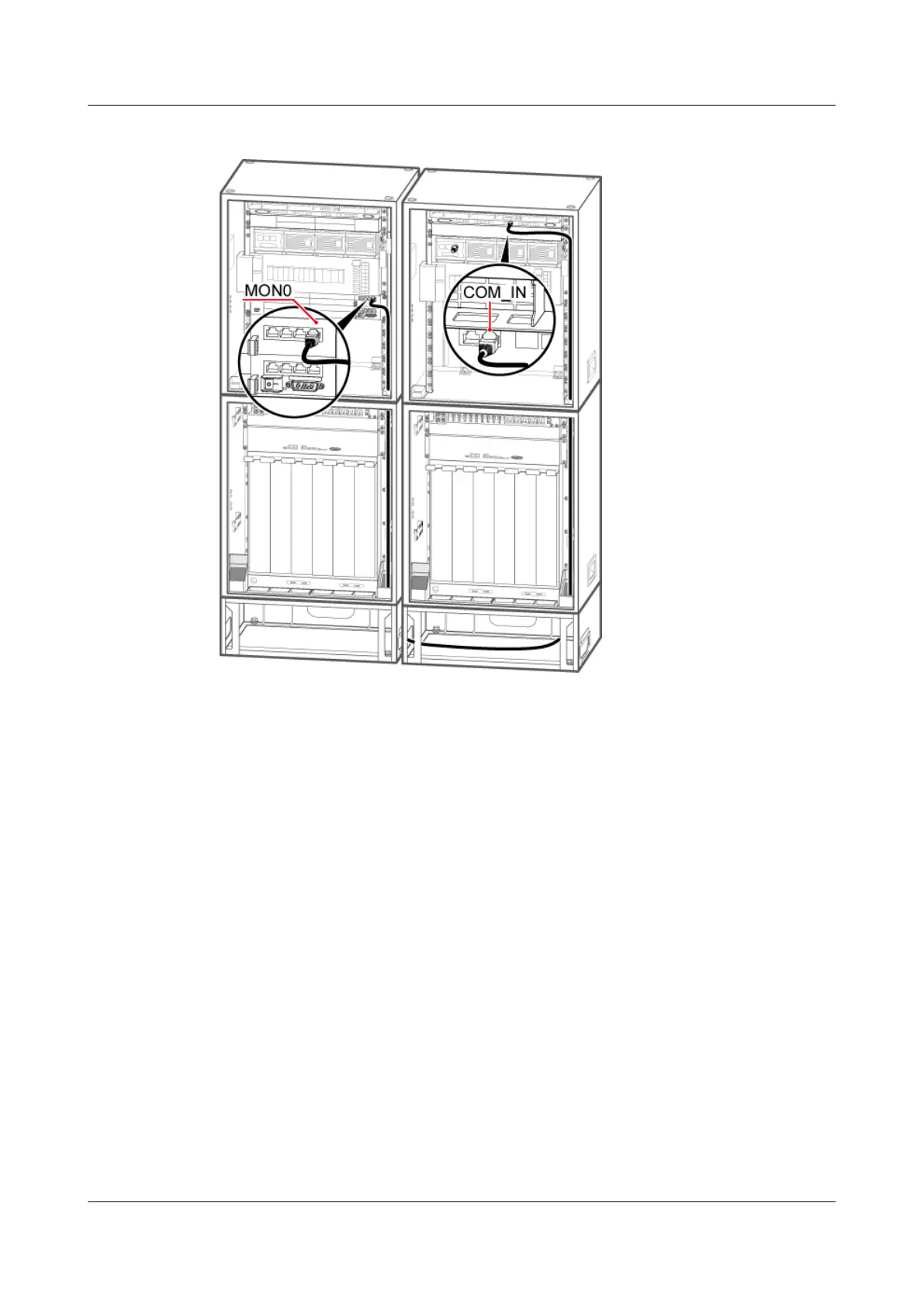

Figure 12-32 Installing the monitoring signal cable in the scenario of 2 RFCs+2 APM30Hs (2)
Step 3 Attach labels to the installed cables. For details, see Attaching an L-Shaped Label.
Step 4 Run each cable that leave the cabinet in a PVC corrugated pipe, and then tie the pipe to the cable
hole in the cabinet.
----End
Scenario: 1 RFC+1 APM30H+1 IBBS200Ds/IBBS200T
If a site is configured with one RFC, one APM30H, and one IBBS200D/IBBS200T, one
monitoring signal cable between the IBBS200D/IBBS200T the TMC11H is required on site.
Procedure
Step 1 Install the monitoring signal cable for the batteries between the IBBS200D/IBBS200T and the
APM30H. Connect one end of the cable to the COM_IN port on the CMUA on the cabinet door
of the IBBS200D/IBBS200T and the other end to the COM_485 port on the PMU in the
APM30H, as shown in Figure 12-33.
