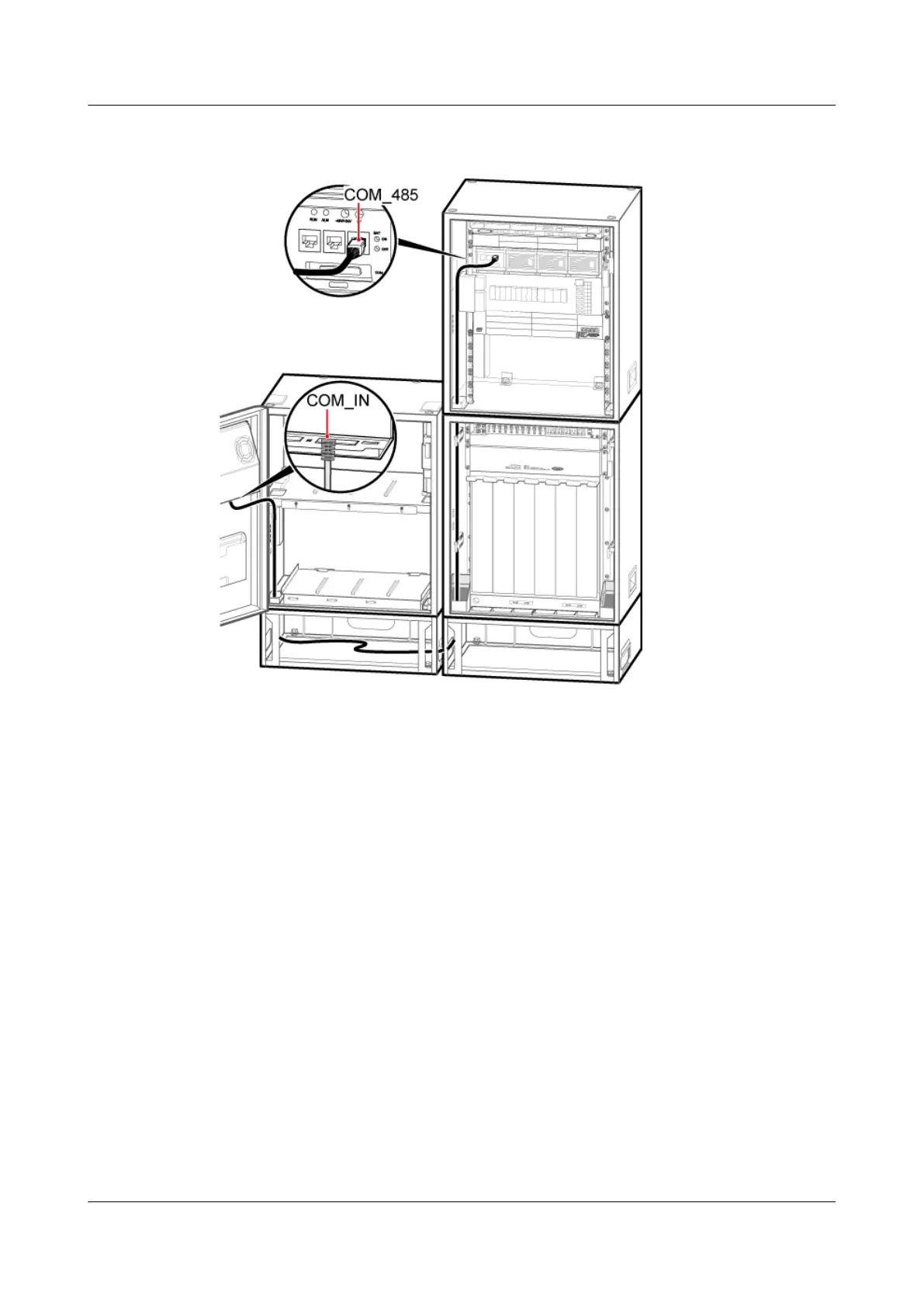

Figure 12-33 Installing the monitoring signal cable in the scenario of 1 RFC+1 APM30H+1
IBBS200D/IBBS200T
Step 2 Attach labels to the installed cables. For details, see Attaching an L-Shaped Label.
Step 3 Run each cable that leave the cabinet in a PVC corrugated pipe, and then tie the pipe to the cable
hole in the cabinet.
Step 4 If two RFCs, two APM30Hs, and two IBBS200Ds/IBBS200Ts are configured on site, three
more monitoring signal cables are required. Figure 12-34 shows the configurations of the
cabinets.
BTS3900A(Ver.B)
Installation Guide 12 Installing the Cables
Issue 01 (2011-10-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
118
