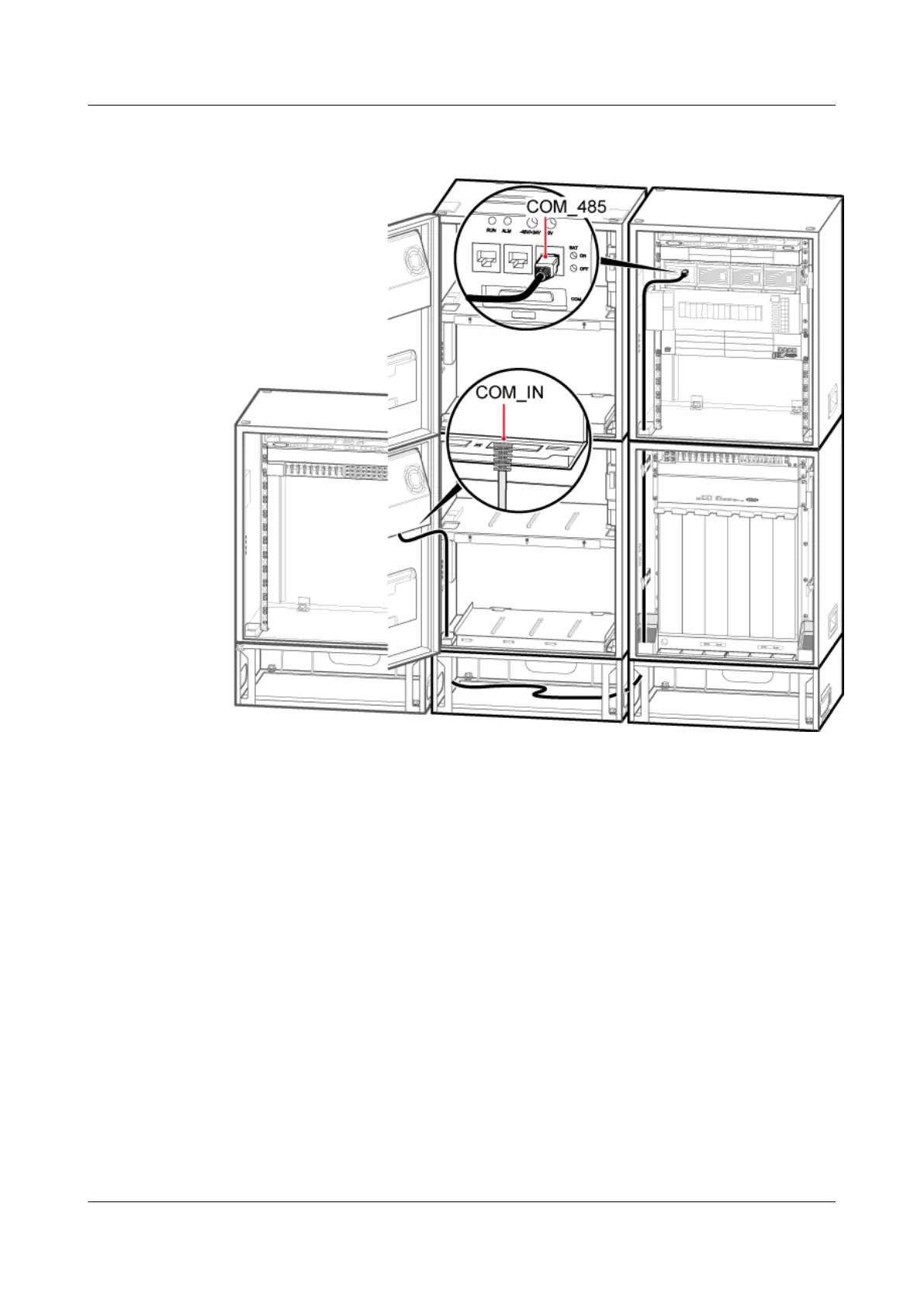

Figure 12-48 Installing the monitoring signal cable in the scenario of 1 RFC+1 APM30H+2
IBBS200Ds/IBBS200Ts+1 TMC11H (2)
Step 3 Install the monitoring signal cable between the cascaded CMUAs between the TMC11H and
the RFC. Connect one end of the cable to the COM_IN port on the CMUA in the fan box of the
TMC11H and the other end to the COM_OUT port on the CMUA in the fan box of the RFC, as
shown in Figure 12-49.
BTS3900A(Ver.B)
Installation Guide 12 Installing the Cables
Issue 01 (2011-10-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
131
